Inspecting Fiber Ends
Fiber Inspection Probe 69

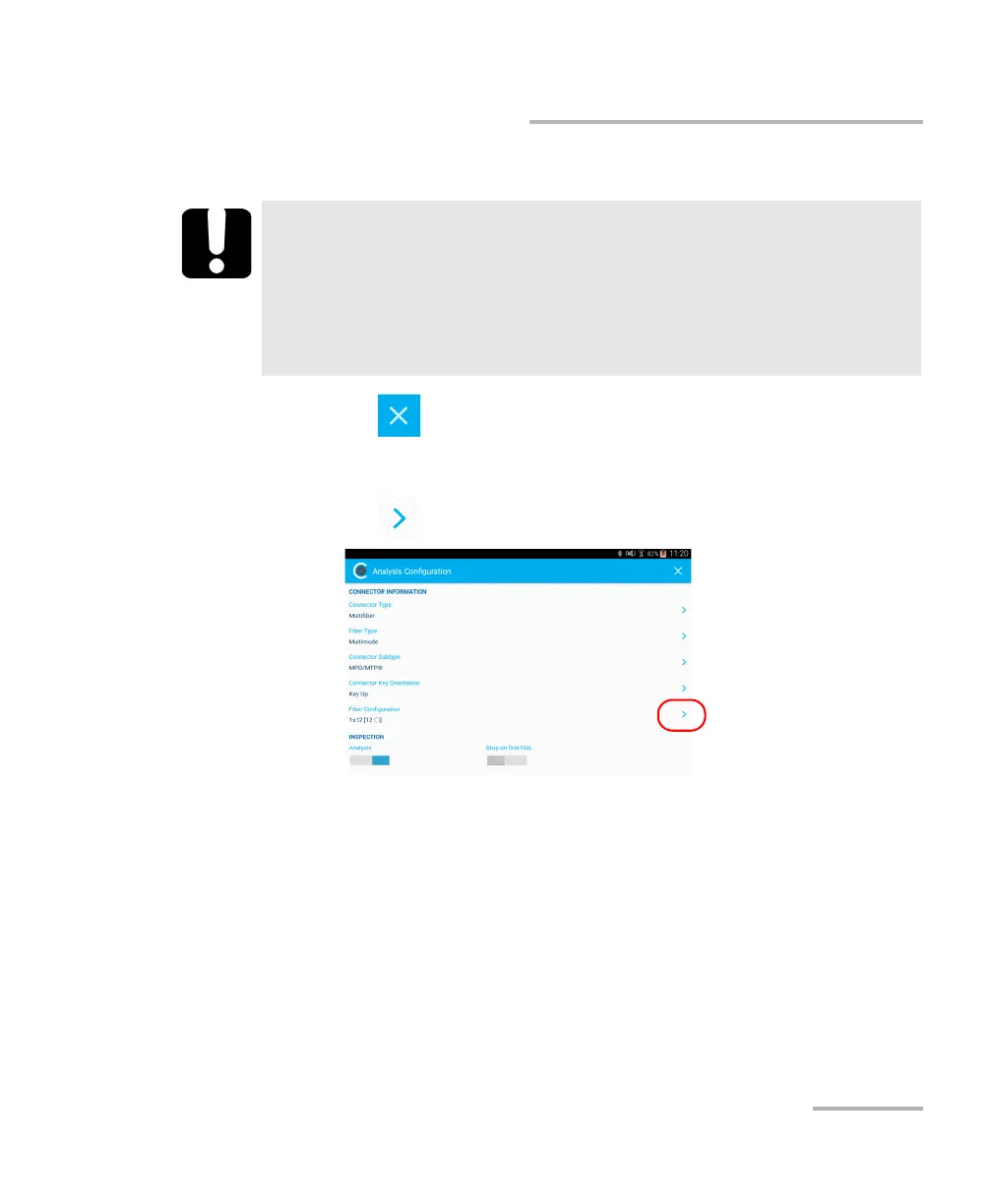

Inspecting Multiple Fiber Ends (MF-Ready Probes Only)
9b. Select Key Up or Key Down.
9c. Tap to return to the Analysis Configuration window.
10. To select the fiber configuration on the connector inserted into the
removable nozzle, proceed as follows:
10a.Tap at the end of the Fiber Configuration row.
IMPORTANT
Ensure that the connector key orientation you select in the
application matches the position (key up or key down) of the
removable nozzle inserted on the metal rod. See Changing the FIP
Nozzle (MF-Ready Probes Only) on page 28 for details. Failure to do
so may have an impact on polarity results.
