Inspecting Fiber Ends
74 FIP-400B
Inspecting Multiple Fiber Ends (MF-Ready Probes Only)
19. To perform the first capture (out of three), proceed as follows:
19a.Using the trigger, slide the movable part of the inspection tip
towards the nozzle until it stops.
19b.Once you are satisfied with the inspection, tap .
OR
Press the Fiber Inspection Probe capture control button.
Note: If you are not satisfied with capture number one, you can take it again.
When the first capture is done, the application automatically switches to
. Tap to perform capture number one again.

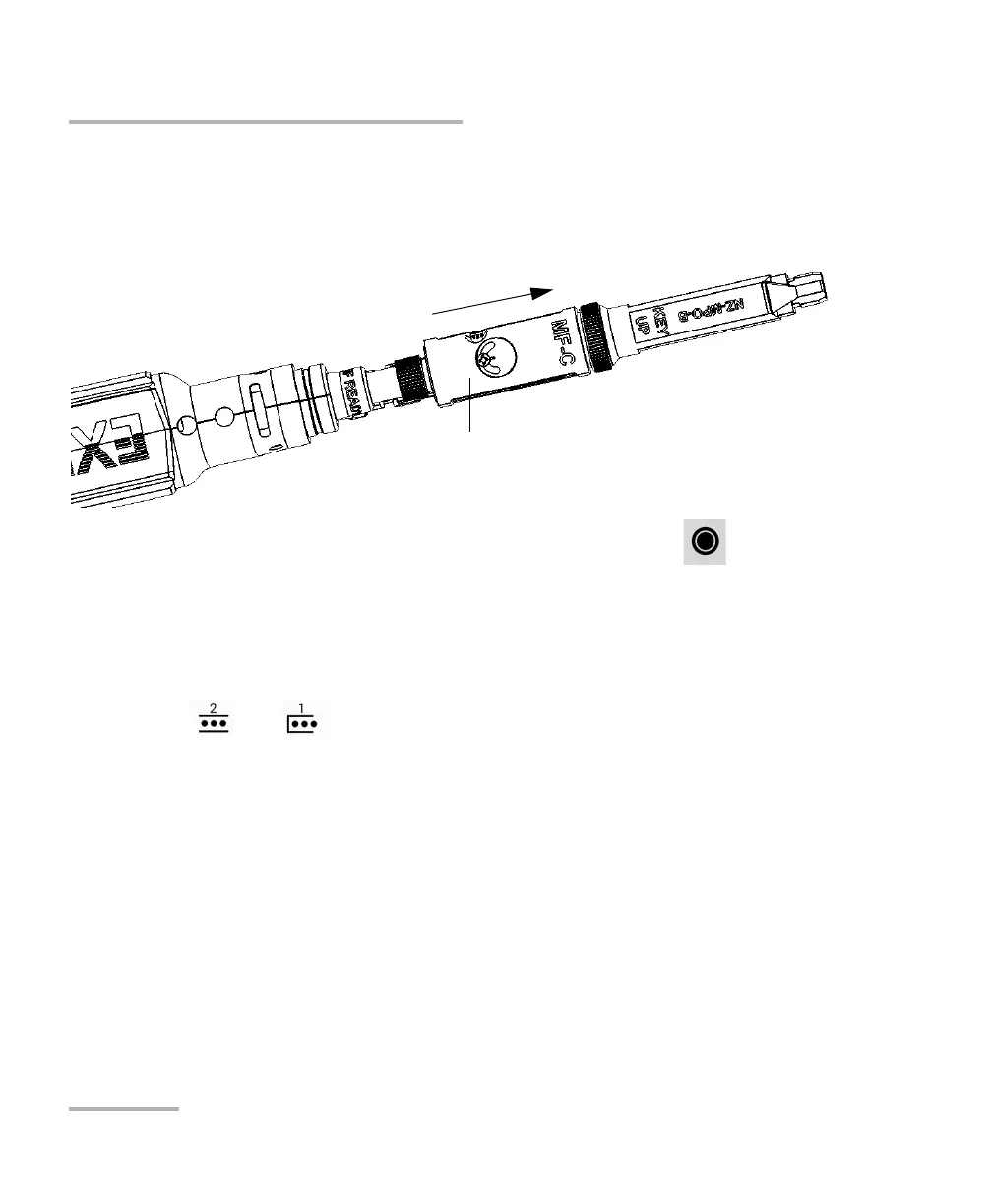

Inspection tip (movable part)
