Inspecting Fiber Ends
Fiber Inspection Probe 75
Inspecting Multiple Fiber Ends (MF-Ready Probes Only)
20. To perform the second capture, proceed as follows:
20a.Using the trigger, slide the movable part of the inspection tip at
position 2 (halfway between position 1 and 3). Position 2 is
illustrated with this icon on the MF-Ready probe.
20b.Once you are satisfied with the inspection, tap .
OR
Press the Fiber Inspection Probe capture control button.
Note: If you are not satisfied with capture number two, you can take it again.
When the second capture is done, the application automatically switches to
. Tap to perform capture number two again.
As long as the third capture is not performed, you can retake the first and
second captures. Redoing capture one when capture two was already
made means that you will have to redo capture two as well.

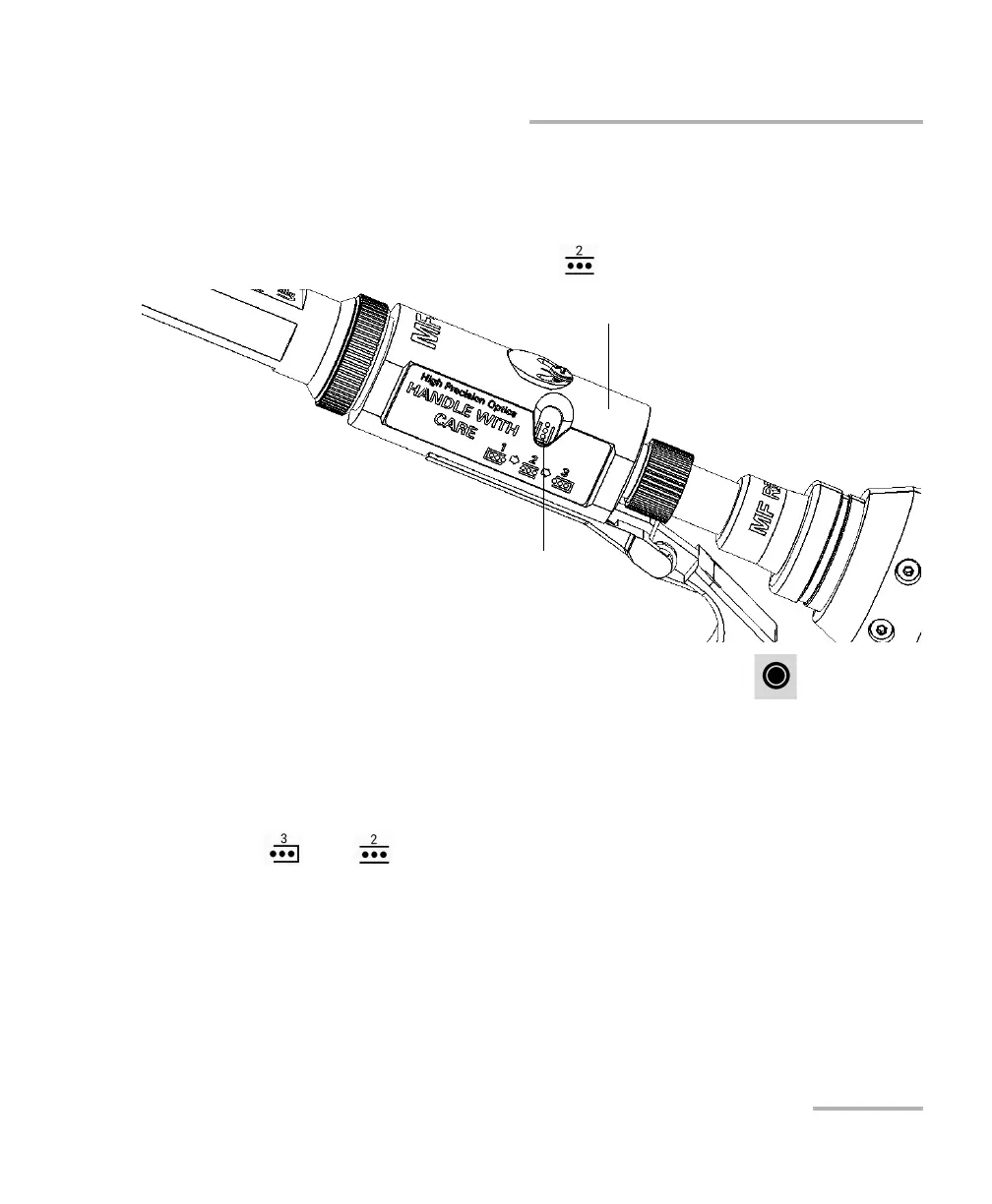

Inspection tip (movable part)
Indicates the position to follow to perform
the 3 captures.
