Inspecting Fiber Ends
76 FIP-400B
Inspecting Multiple Fiber Ends (MF-Ready Probes Only)
21. To perform the third and last capture, proceed as follows:

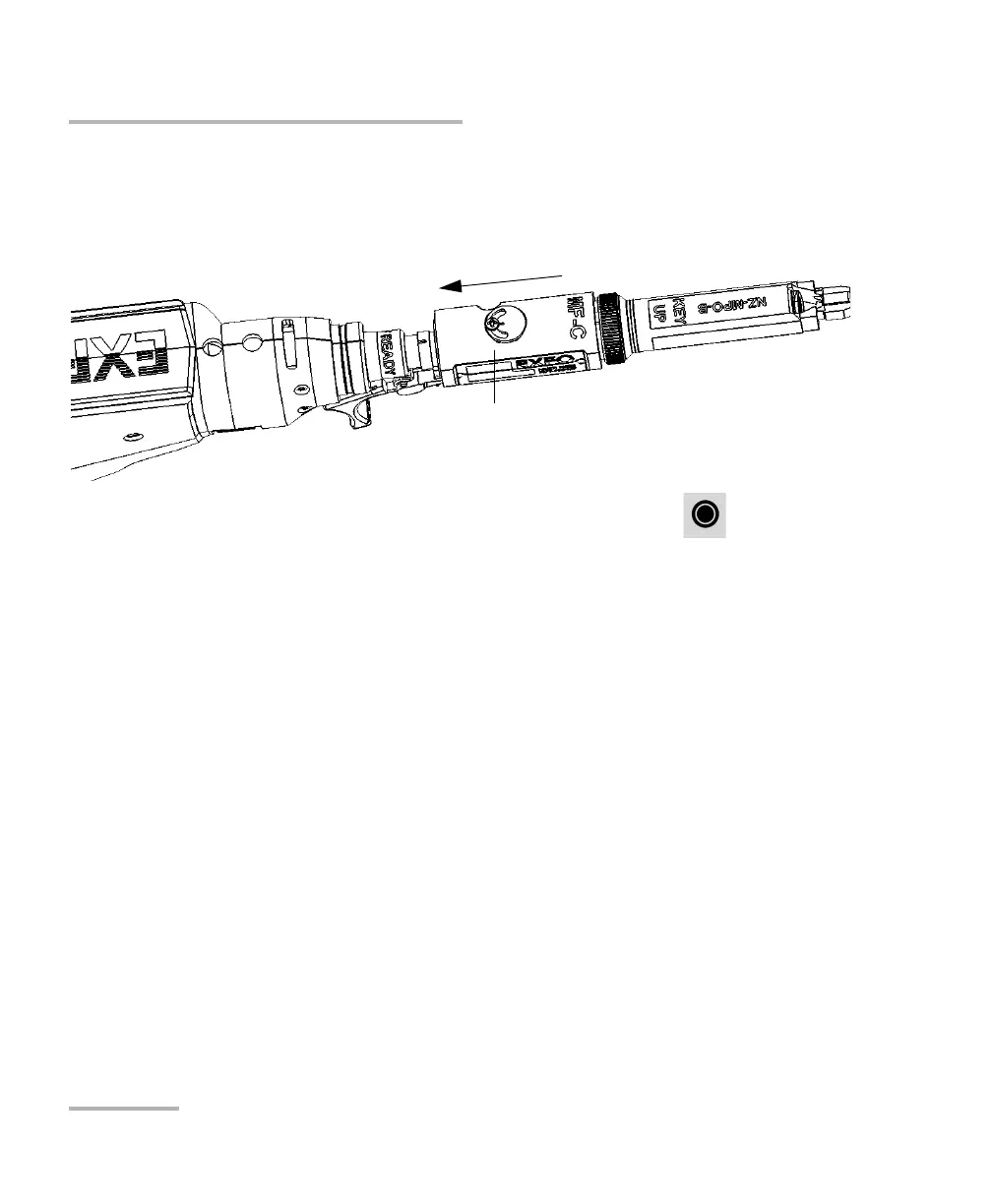

21a.Using the trigger, slide the movable part of the inspection tip until
it stops to hide the retaining nut.
21b.Once you are satisfied with the inspection, tap .
OR
Press the Fiber Inspection Probe capture control button.
When the last capture is performed, the analysis starts immediately.
Inspection tip (movable part)
To Next Page
