Cleaning Lenses
To clean lenses:
1. If necessary, turn off your unit and remove the protective cap.

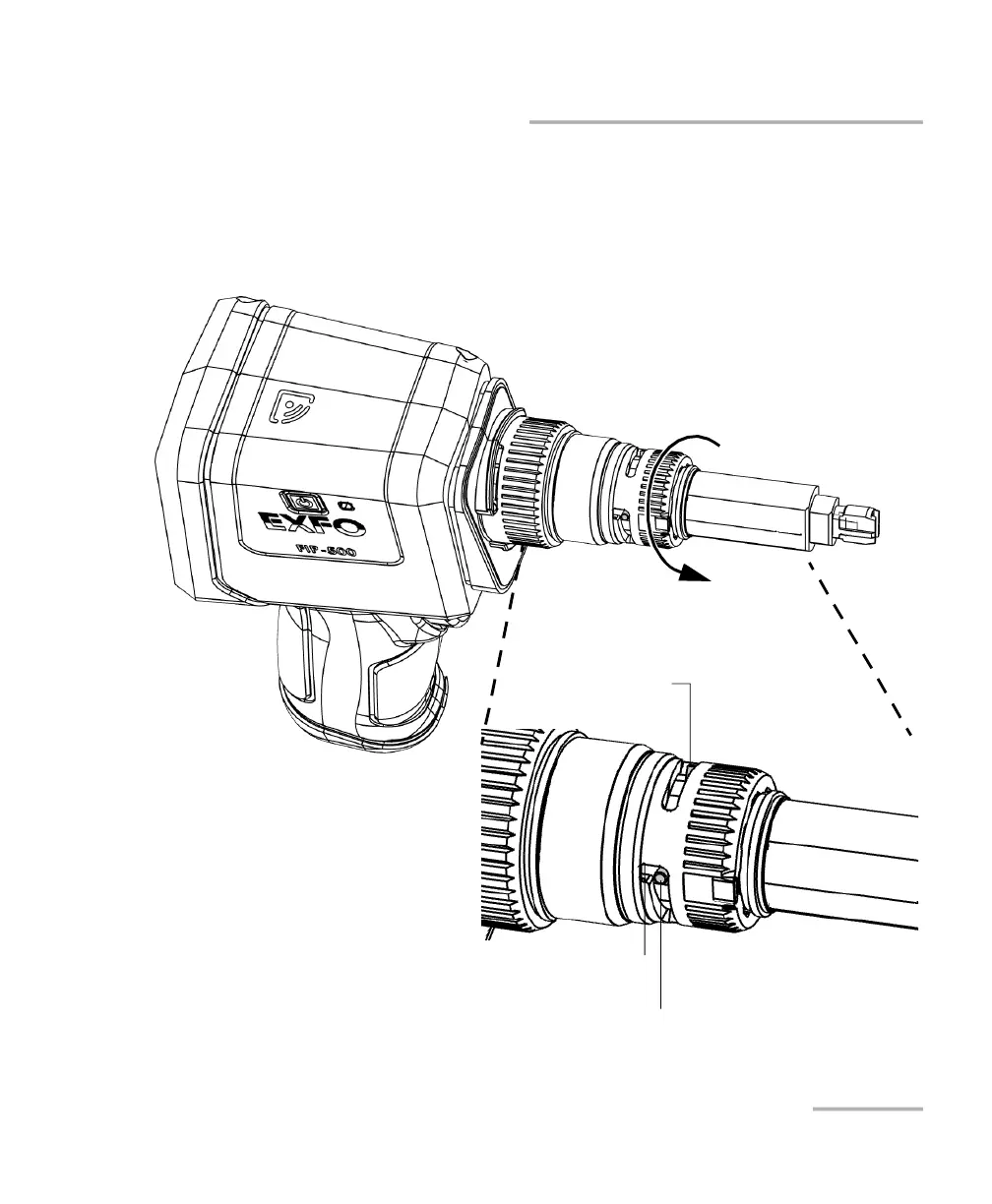

2. Turn the SmarTip retaining nut counterclockwise until the pins are
aligned with the widest part of the SmarTip anchoring slots.
Widest part of the SmarTip anchoring slot
Pin
Pin
