Setting Up Your Unit

MAX-700 203

Recalibrating the Touchscreen

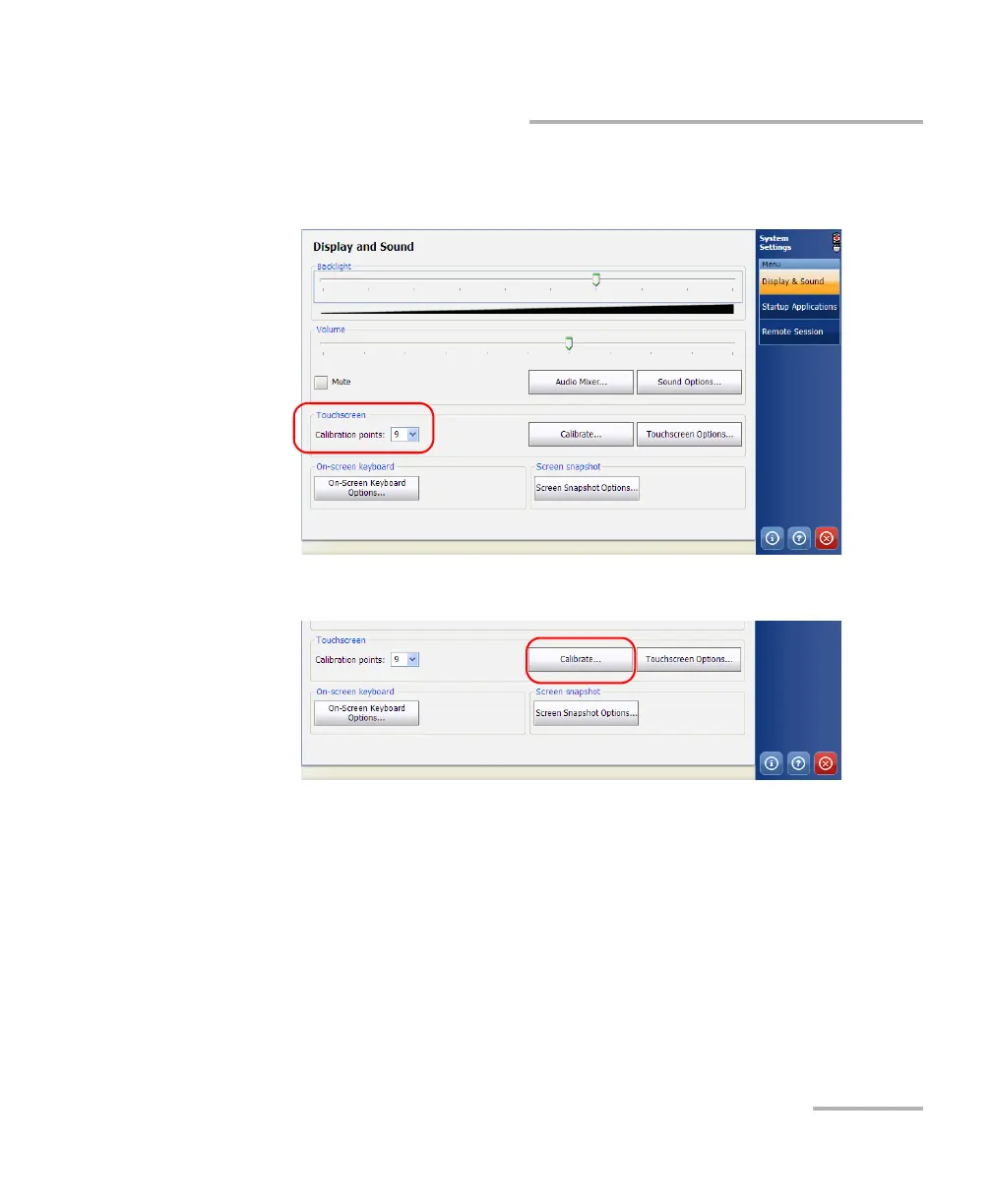

3. From the Calibration points list, select the desired number of points

for the calibration.

4. Tap Calibrate.
