Setting Up Your Unit

MAX-700 217

Selecting the Language of Operation

To add new input languages:

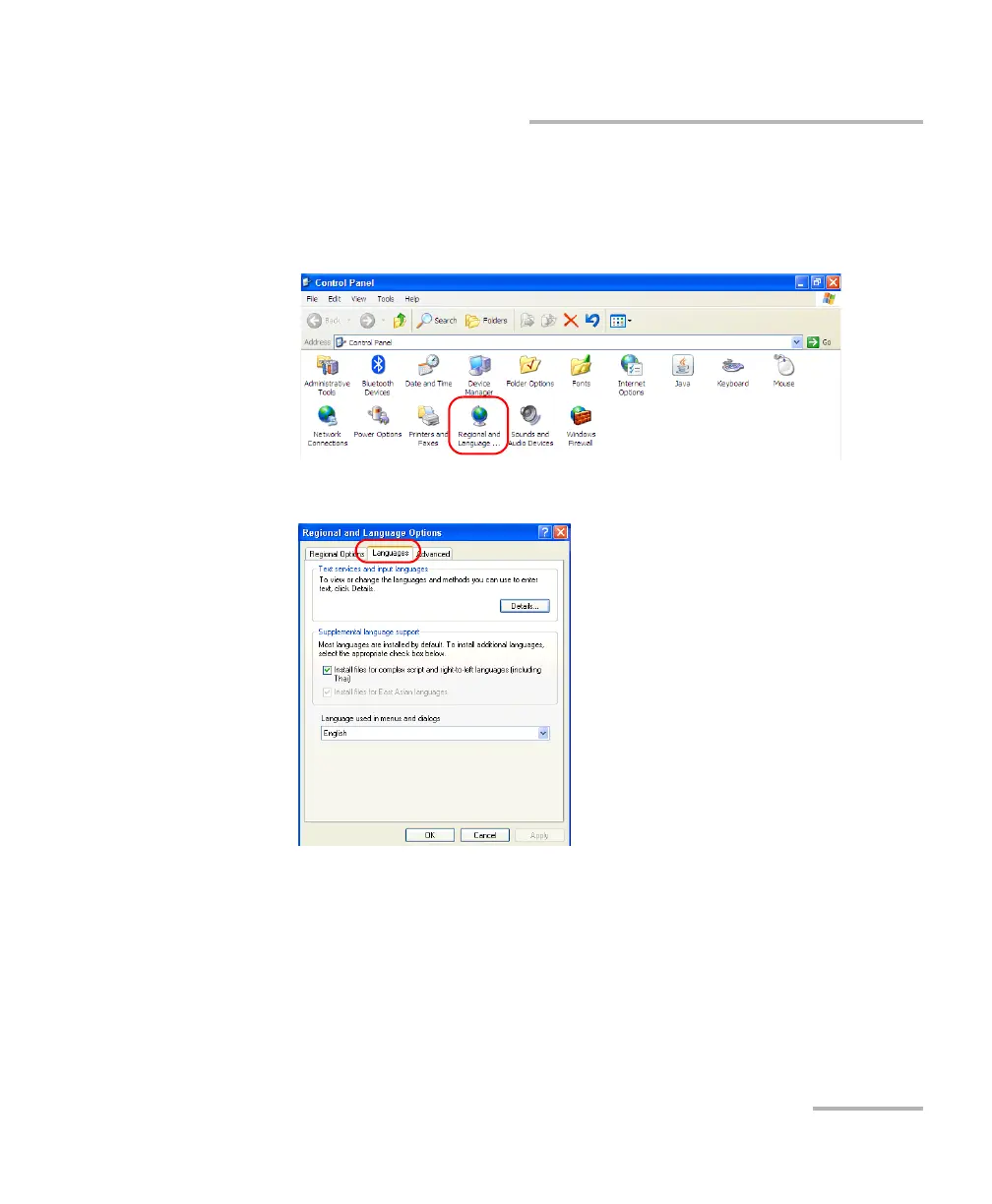

1. From the Main Menu, tap Setup.

2. Double-tap Regional and Language Options.

3. Select the Languages tab.
