Setting Up Your Unit

218 MAX-700

Selecting the Language of Operation

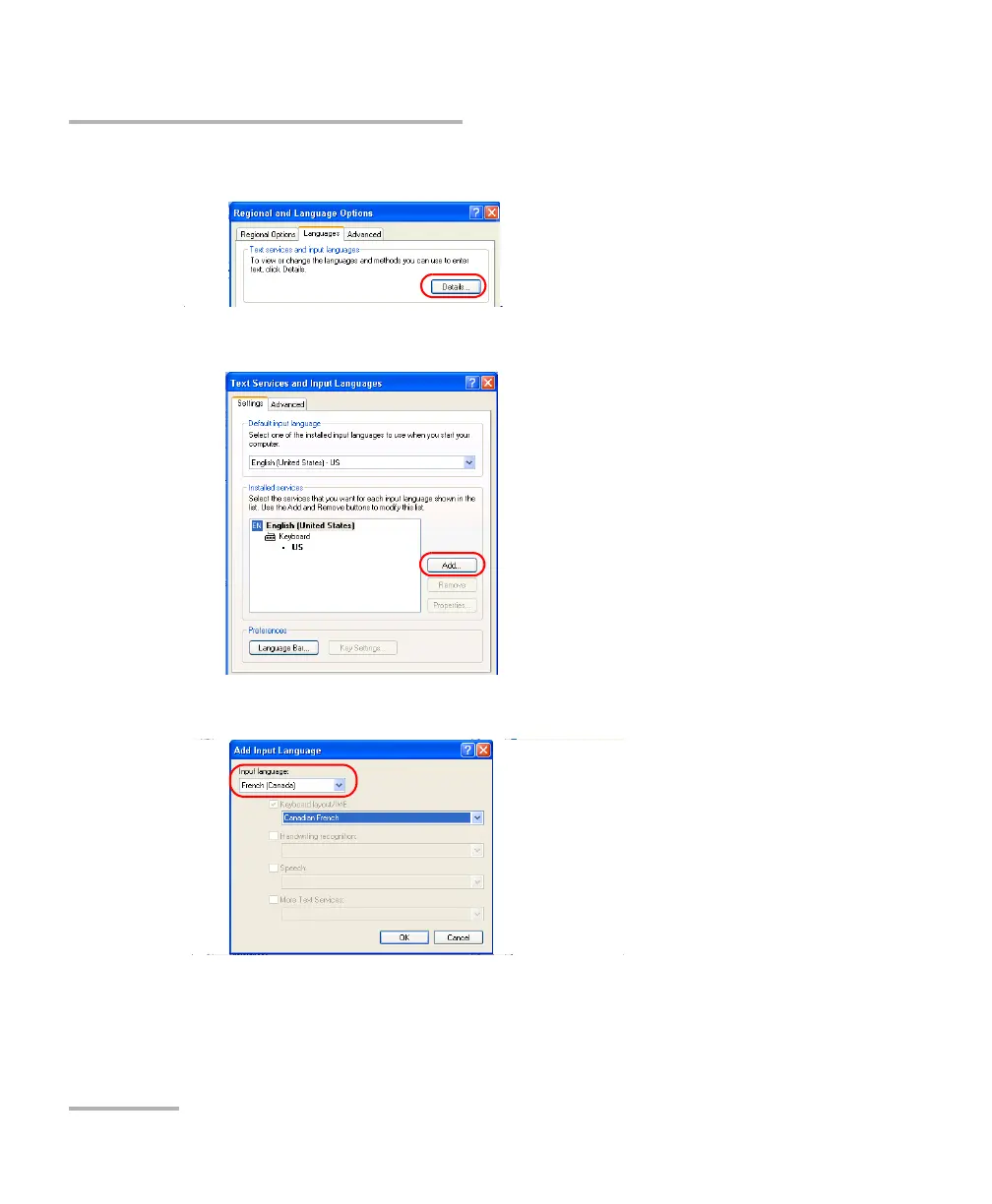

4. Under Text services and input languages, tap Details.

5. Under Installed services, tap Add.

6. From the Input language list, select the desired language.
