Managing Data

262 MAX-700

Transferring Data via Bluetooth

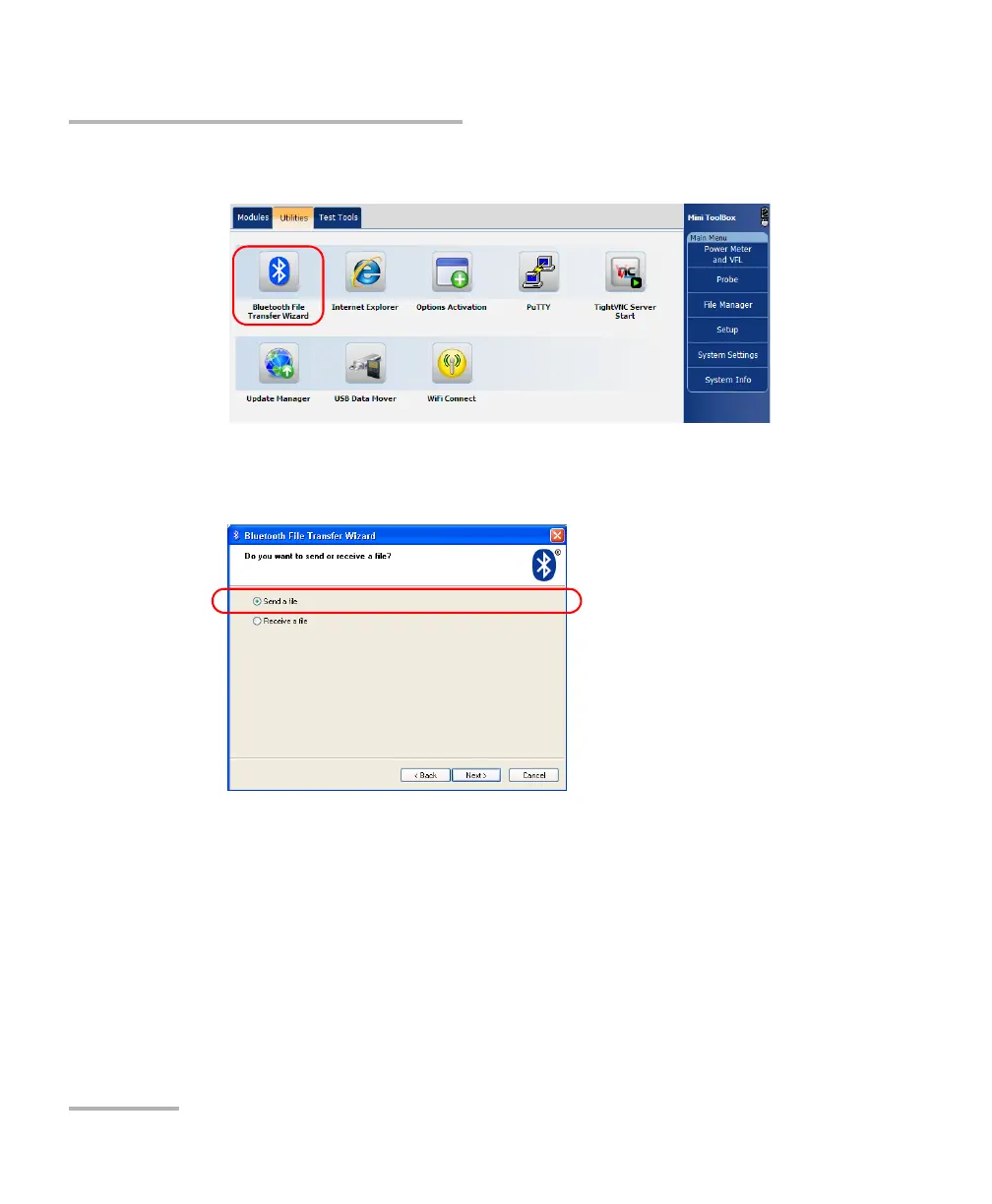

5. Tap Bluetooth File Transfer Wizard.

6. From the Welcome window, tap Next.

7. Select Send a file and tap Next.
