Managing Data

MAX-700 263

Transferring Data via Bluetooth

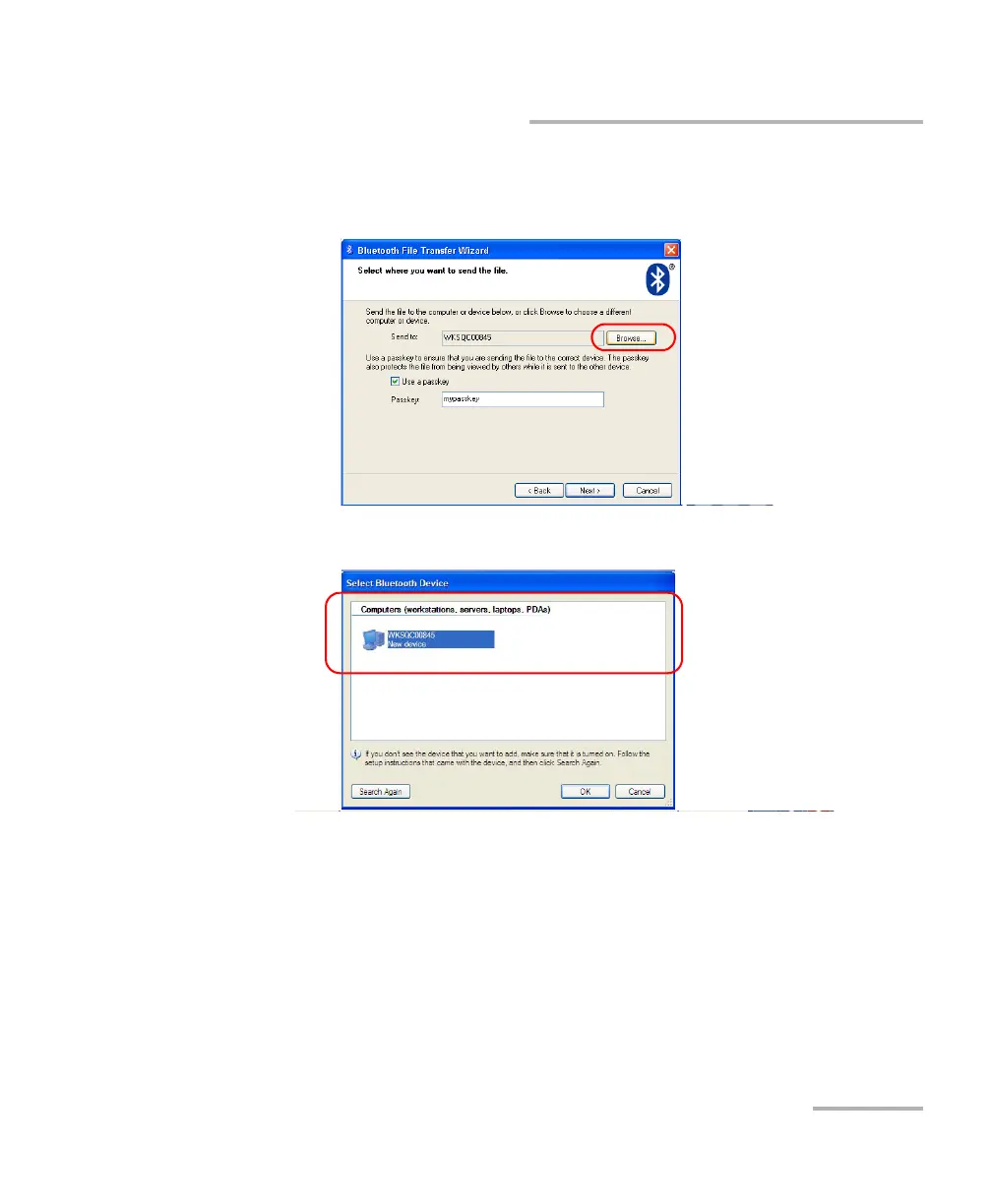

8. Select the computer to which you want to transfer data as follows:

8a. Tap Browse.

8b. Select the desired computer, and then tap OK to confirm.
