Preparing Y
our MAX
-700 for a T
est
MAX
-700
45
Naming T
race Files Automatically
T
o configure the automatic file naming:
1.
F
rom the button bar
, press
OTDR Setup
.
2.

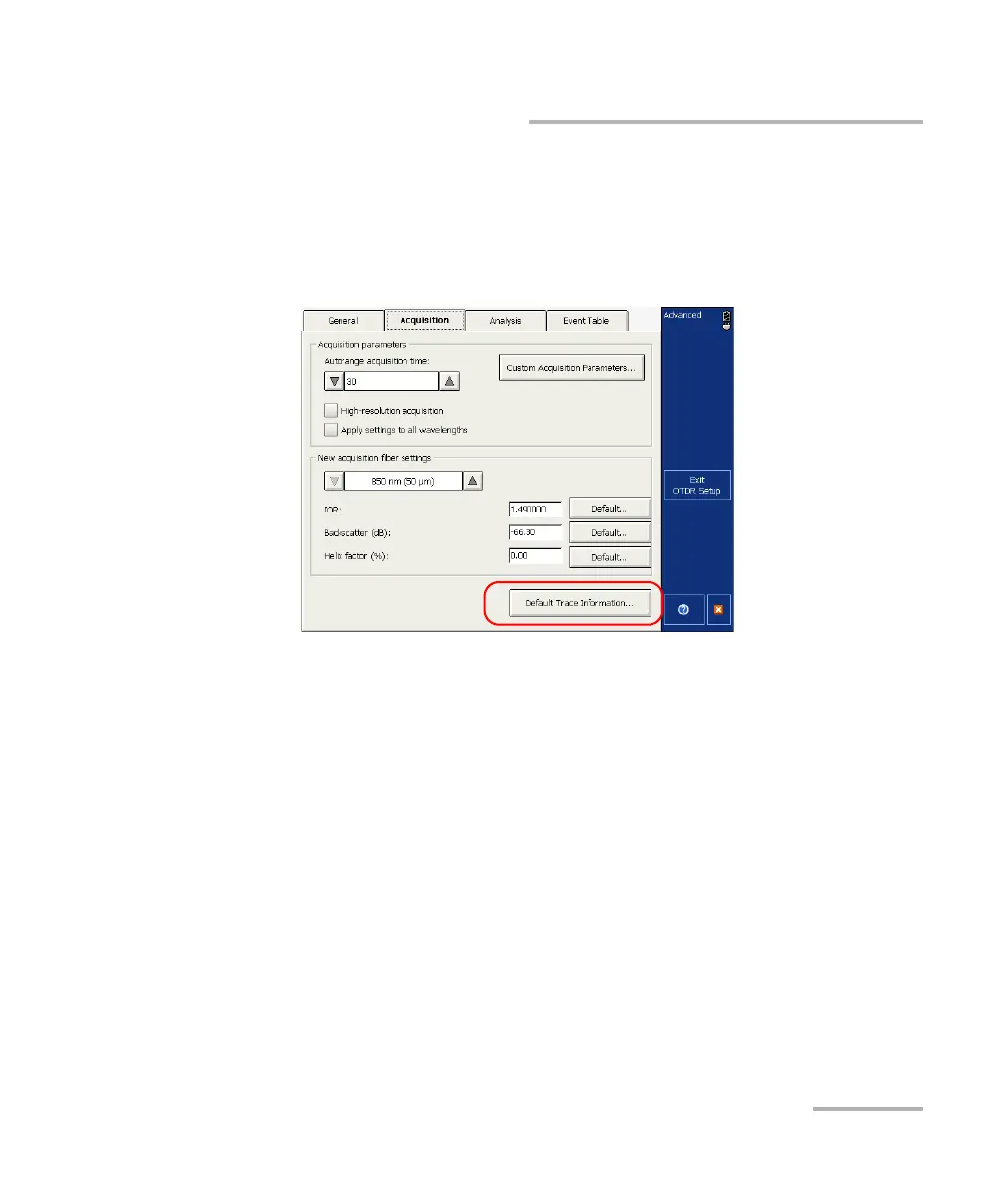

Select the
Acquisition
tab.
3.
Pr
e
s
s
Default T
race Infor
mation
.
56
58
