Operation
Product Overview

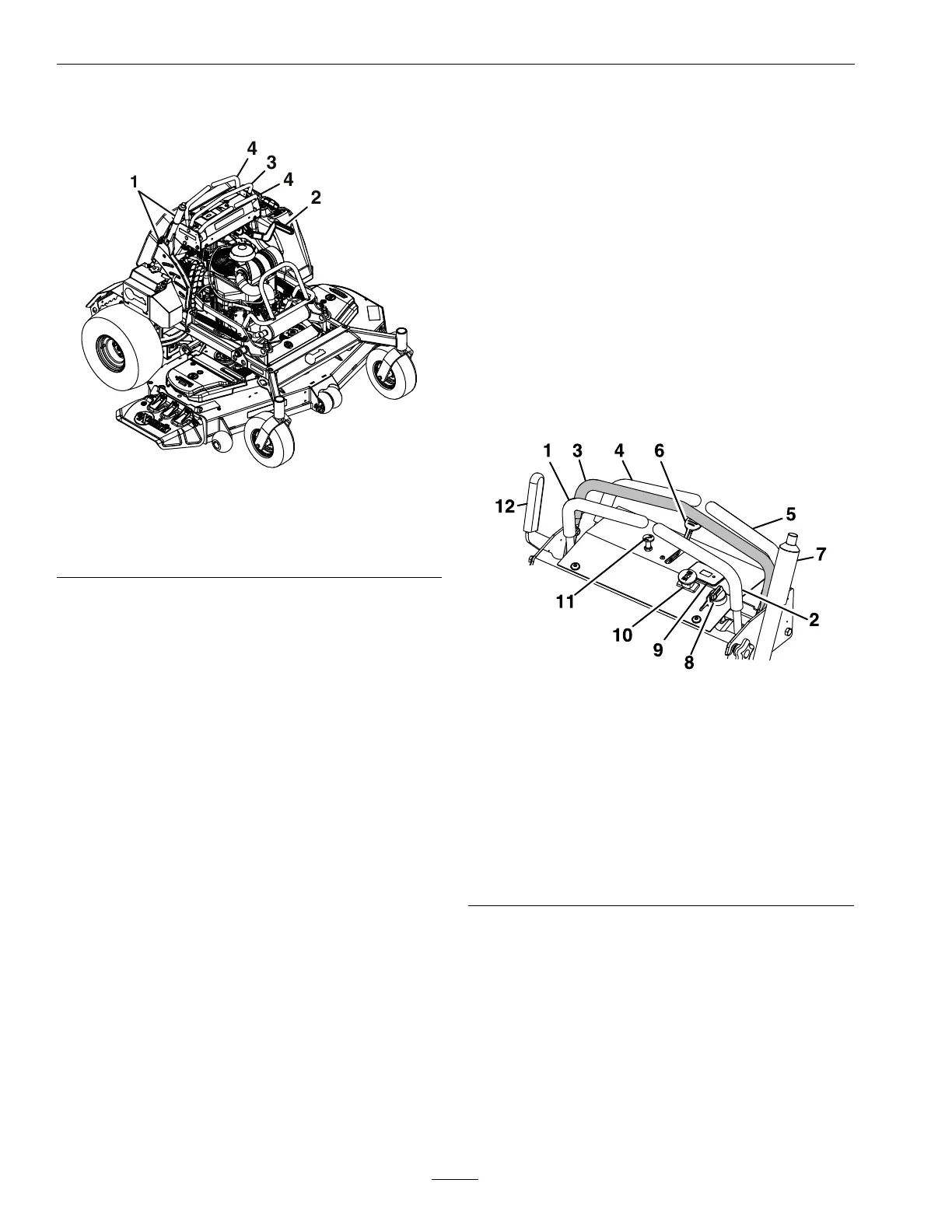

g375400
Figure 3
1. Deck lift and Height of
cut
3. Controls
2. Park brake lever 4. Motion controls
Operation
Note: Deter mine the left and right sides of the
mac hine from the nor mal operating position.
Controls
Note: Become familiar with all the controls before
star ting the engine and operating the mac hine .
Motion Control Levers
T here are tw o sets of motion control lev ers , located
in front and behind the reference bar on the top
console , that control the forw ard and rev erse motion
of the mac hine .
g344685
Figure 4
1. LH Motion forward
control lever
7. Height of cut lever
2. RH Motion forward
control lever
8. Ignition
3. Reference bar
9. Message display
4. LH Motion reverse
control lever
10. PT O engagement switch
5. RH Motion reverse
control lever
1 1. Choke (All Models
Except EFI)
6. Throttle 12. Park brake
Mo ving the lev ers forw ard or bac kw ard tur ns
the wheel on the same side forw ard or rev erse
respecti v ely . W heel speed is propor tional to the
amount the lev er is mo v ed.
20
