Maintenance

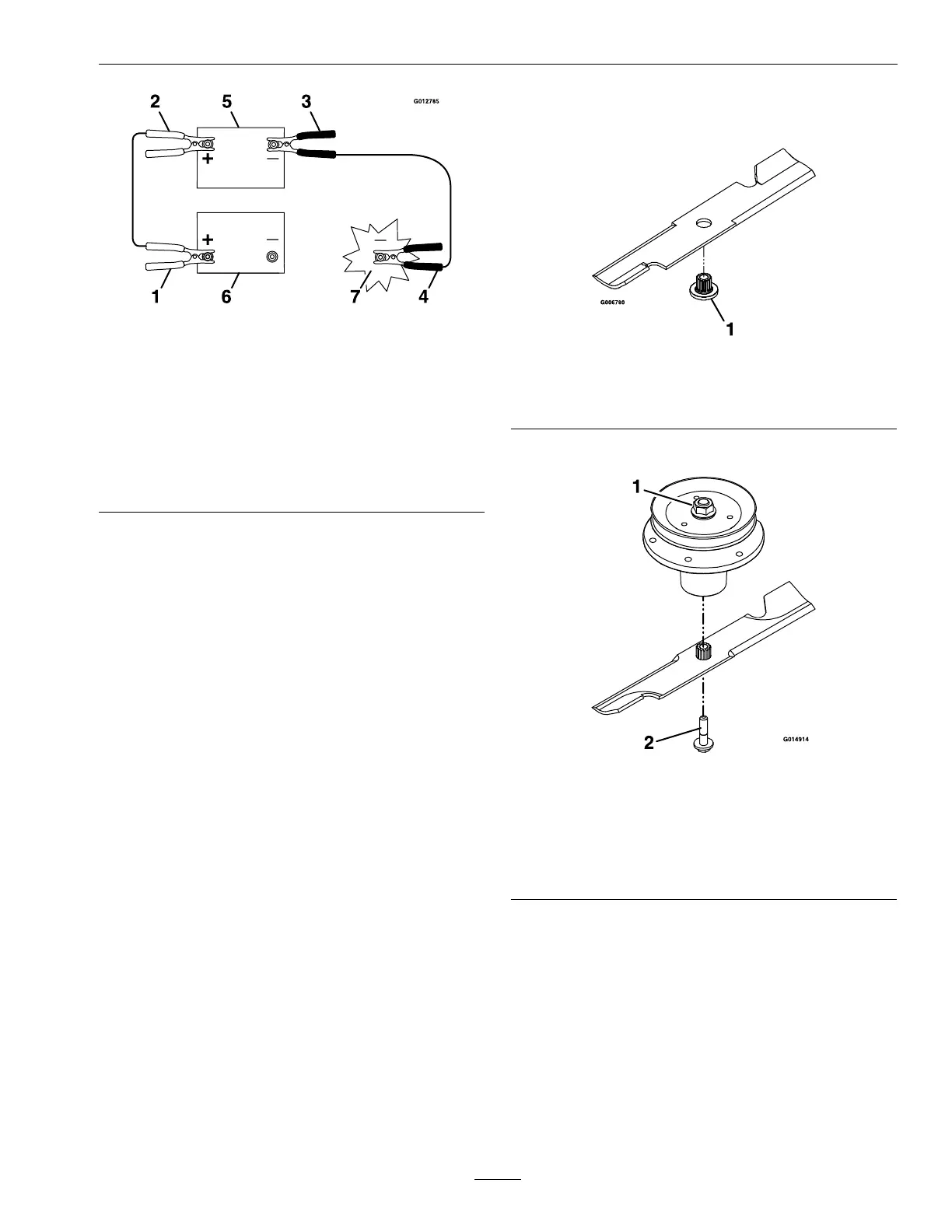

g012785
Figure 18
1. Positive (+) cable on discharged battery
2. Positive (+) cable on booster battery
3. Negative (–) cable on the booster battery
4. Negative (–) cable on the engine block
5. Booster battery
6. Discharged battery
7. Engine block
4. Connect the other end of the positi v e cable to the
positi v e ter minal of the booster batter y .
5. Connect the blac k neg ati v e (–) cable to the other
ter minal (neg ati v e) of the booster batter y .
6. MAKE THE FINAL CONNECTION ON
THE ENGINE BLOCK OF THE ST ALLED
VEHICLE (NOT TO THE NEGA TIVE POST)
A W A Y FR OM THE B A TTER Y . ST AND B A CK.
7. Star t the v ehicle and remo v e the cables in the
rev erse order of connection (the engine bloc k
(blac k) connection is the rst to disconnect).
Note: A malfunctioning mac hine batter y ma y cause
the c harging v oltag e to ex ceed 18.5 v olts . T he engine
will tur n off if there is a c harg e abo v e 18.5 v olts . T ur n
the ignition switc h off , then on ag ain to reset the
engine before restar ting the mac hine .
Check Mower Blades
Service Interval : Before each use or daily
1. Stop engine , w ait for all mo ving par ts to stop , and
remo v e k ey . Eng ag e parking brak e .
2. Lift dec k and secure in raised position as stated in
the Clean Grass Build-Up Under Deck section.
3. Inspect blades and shar pen or re place as required.
4. R einstall the blades (if they w ere remo v ed) in the
follo wing order :
A. Install bushing through blade with bushing
ang e on bottom (g rass) side of blade .
g006780
Figure 19
1. Install bushing in blade prior to installing bushing in
spindle.
B . Install bushing/blade assembly into spindle .
g014914
Figure 20
1. Use wrench here for blade installation. This nut has
been torqued to 130-160 ft-lb (176–217 N-m)
2. T orque to 50-60 ft-lb (68-81 N-m) Apply lubricant to
threads as needed to prevent seizing. Copper-based
anti-seize preferable. Grease acceptable substitute.
C . Apply lubricant to threads of blade bolt as
needed to prev ent seizing . Copper -based
anti-seize preferable . Grease acce ptable
substitute . Install blade bolt ng er tight. Place
wrenc h on the top spindle n ut then tor que the
blade bolts to 50-60 ft-lb (68-81 N-m).
37
