Extra EA 400 - Page 191

Pilot’s Operating Handbook Section 5
EXTRA 500 Performance
5-13
50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240
5
4
3
2
1
0
-1
-2
-3
-4
-5
a
b
c
a: clean, cruise, 75% power and idle
b: Flaps 15°, idle
c: gear up/down, Flaps 30°, 75% power and idle
Indicated Airspeed, kt
Delta V, kt
Indicated airspeed + Delta V = Calibrated airspeed
Example:
Indicated airspeed: 83 kt
Delta V: -1 kt
Calibrated airspeed: 82 kt

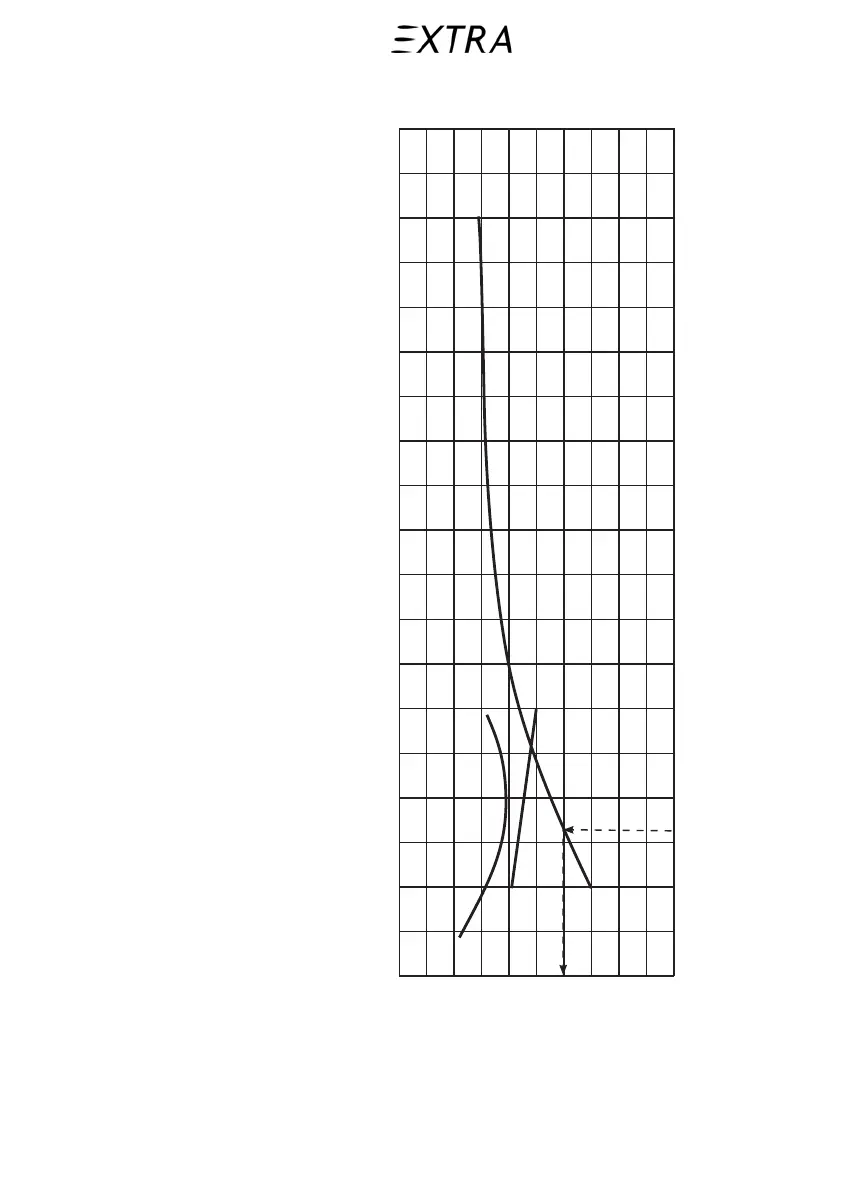

Airspeed Calibration
Figure 5-3
Airspeed Calibration
26. January 2011
