Extra EA 400 - 901.1 Section 1 - General

Pilot’s Operating Handbook Section 901
EXTRA 500 Avidyne IFDs and CDU
901 Avidyne IFDs and CDU
901.1 Section 1 – General
This airplane is equipped with an Avidyne 700-00083-000
Integrated Flight Displays (IFD) in the left (PFD) position and
either another 700-00083-000 IFD in the right (MFD) position.
A Control Display Unit (CDU) p/n 700-00150-002 is also
installed as part of the Entegra Release 9 IFD System. The
entire system will herein be referred to as the “Entegra Release
9” or simply Release 9.
The IFDs are 10.4” landscape-oriented displays intended to be
the primary display of primary flight parameter information to
the pilot. The terms PFD and MFD are still used when referring
P/N 600-00145-000 (32-2352) (WAAS) receiver, VHF
Nav/Com transceiver and processing to accomplish control,
display, navigation and input/output to other avionic systems.
The system is integrated to:
• S-TEC System 55X Autopilot (refer to applicable Supplement)
• Audio panel (refer to applicable Supplement)
• Remote transponder (refer to Avidyne Pilot Guide (see below))
• DME (optional, refer to applicable Supplement)
• Weather detection (optional, refer to Avidyne TWX670 Pilot’s
Operationg Handbook P/N 600-00164-000 Rev 008)
• Traffic advisory (optional, refer to Avidyne TAS600 Series
Pilot’s Guide, P/N 600-00145-000 (32-2352) Rev 007)

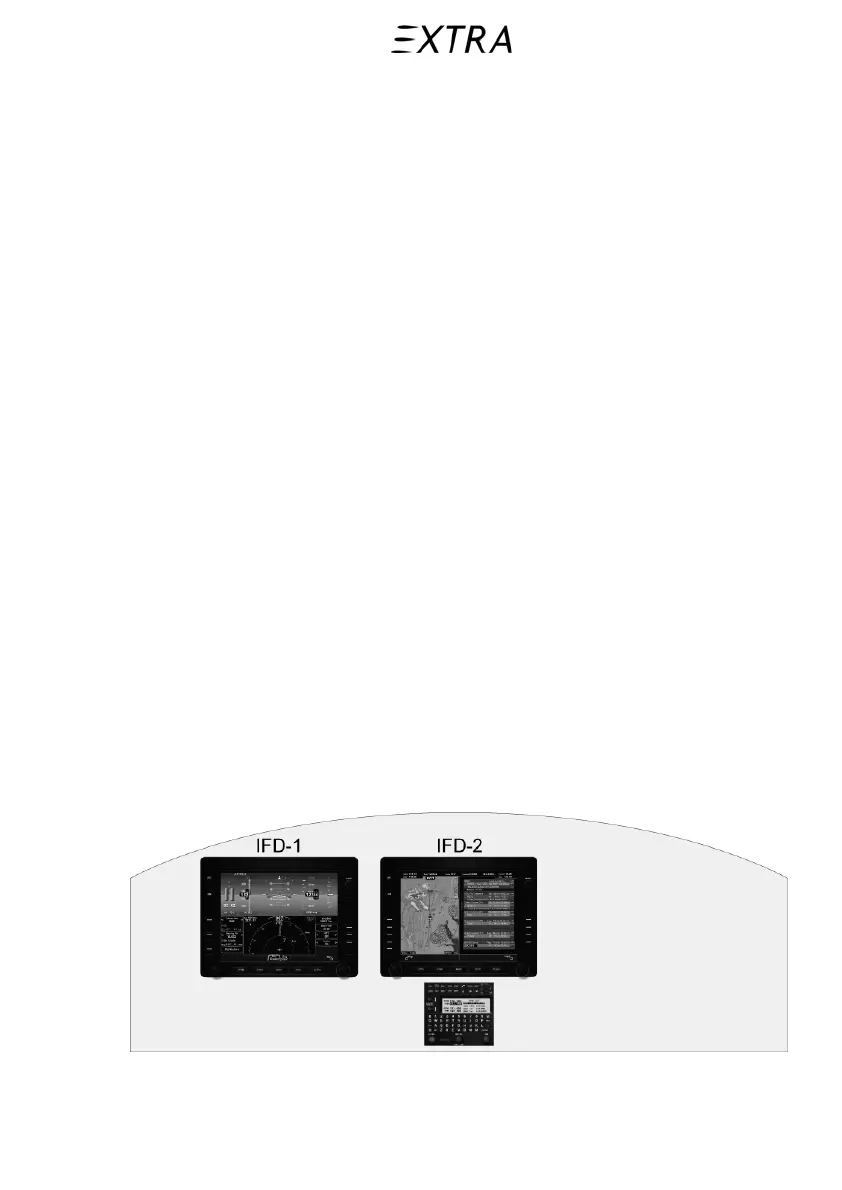

Figure 901-1 depicts the Avidyne 700-00083-000 IFDs and
CDU p/n 700-00150-002.
Figure 901-1
Avidyne IFDs and CDU
26. January 2011
901-3
