7.14.d Engine Instruments
The following engine instruments, providing pilots with engine
operating indications, are installed on the left side of instrument
main panel in pilot’s field of view (see
Figure 7-11).
1 Torque indicator, which indicates engine torque in percent (%).
2 Propeller speed (power turbine N
2
) indicator, which indicates
propeller speed in revolutions per minute (rpm).
3 TOT indicator, which indicates turbine outlet temperature
measured in degrees centigrade (°C).
4 Gas generator (gas producer N
1
) indicator, indicates gas
generator rotation speed expressed in percent (%).
5 Oil temperature indicator, which indicates engine oil
temperature in degrees centigrade (°C).
6 Oil pressure indicator indicates engine oil pressure in pounds
per square inch (psi).

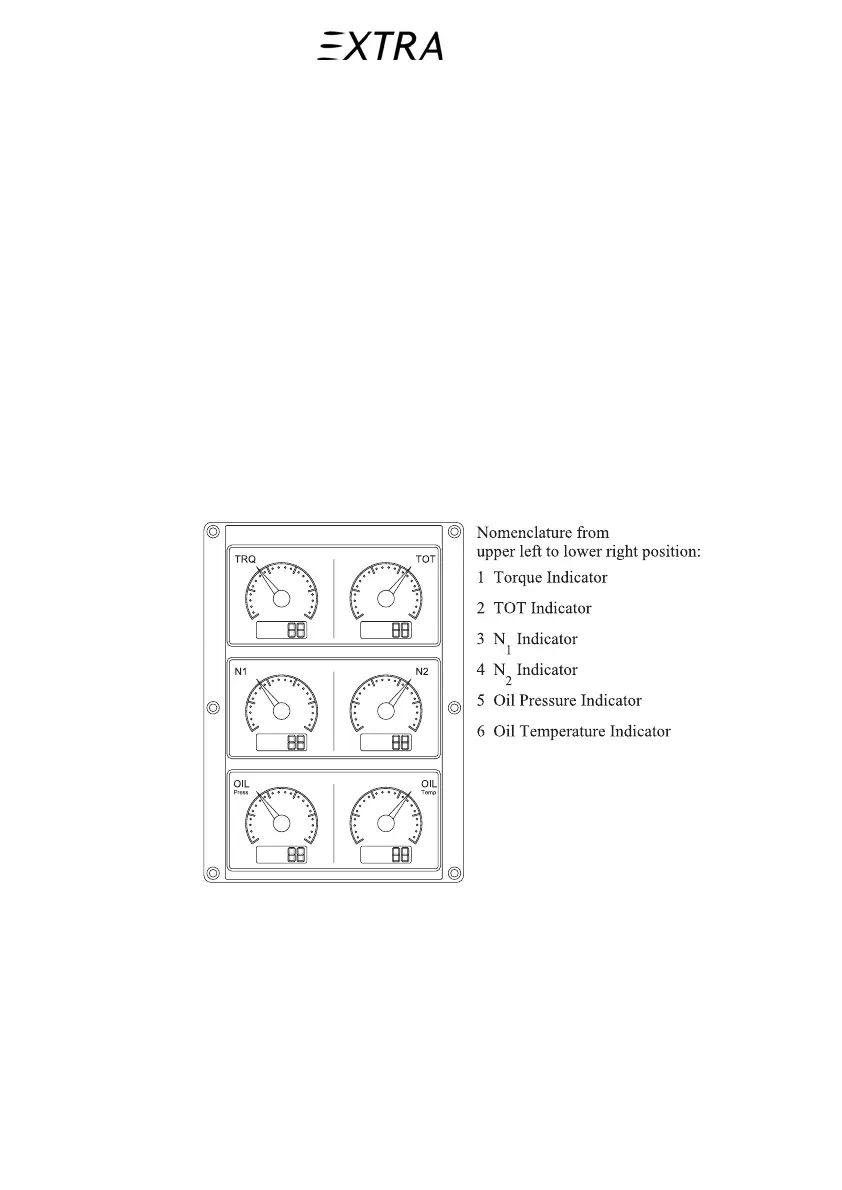

Figure 7-11
Engine Instruments
7.14.e Gas Producer Turbine – Generator (N
1
)
A gas producer turbine “tacho-generator” is attached on
accessory gearbox. It supplies a variable frequency voltage
