Pilot’s Operating Handbook Section 5
EXTRA 500 Performance
26. January 2011
5-41
Associated conditions:
Gear extended, Flaps 30°,
Power setting:
flight idle, condition lever fully forward, full stall touchdown,
maximum braking, paved level dry runway
Example:
Outside air temperature: 25°C
Pressure altitude: 3000 ft
Landing weight: 1706 kg (3761 lbs.)
Wind: 10 kts Head wind
Landing distance: 680 m (2230 ft)
Landing roll: 295 m (967 ft)
Remarks:
Add 15% to distances, for landing on a dry level grass runway.
Reasonable additions have to be used for soft, wet ground, for
snow and melting snow.

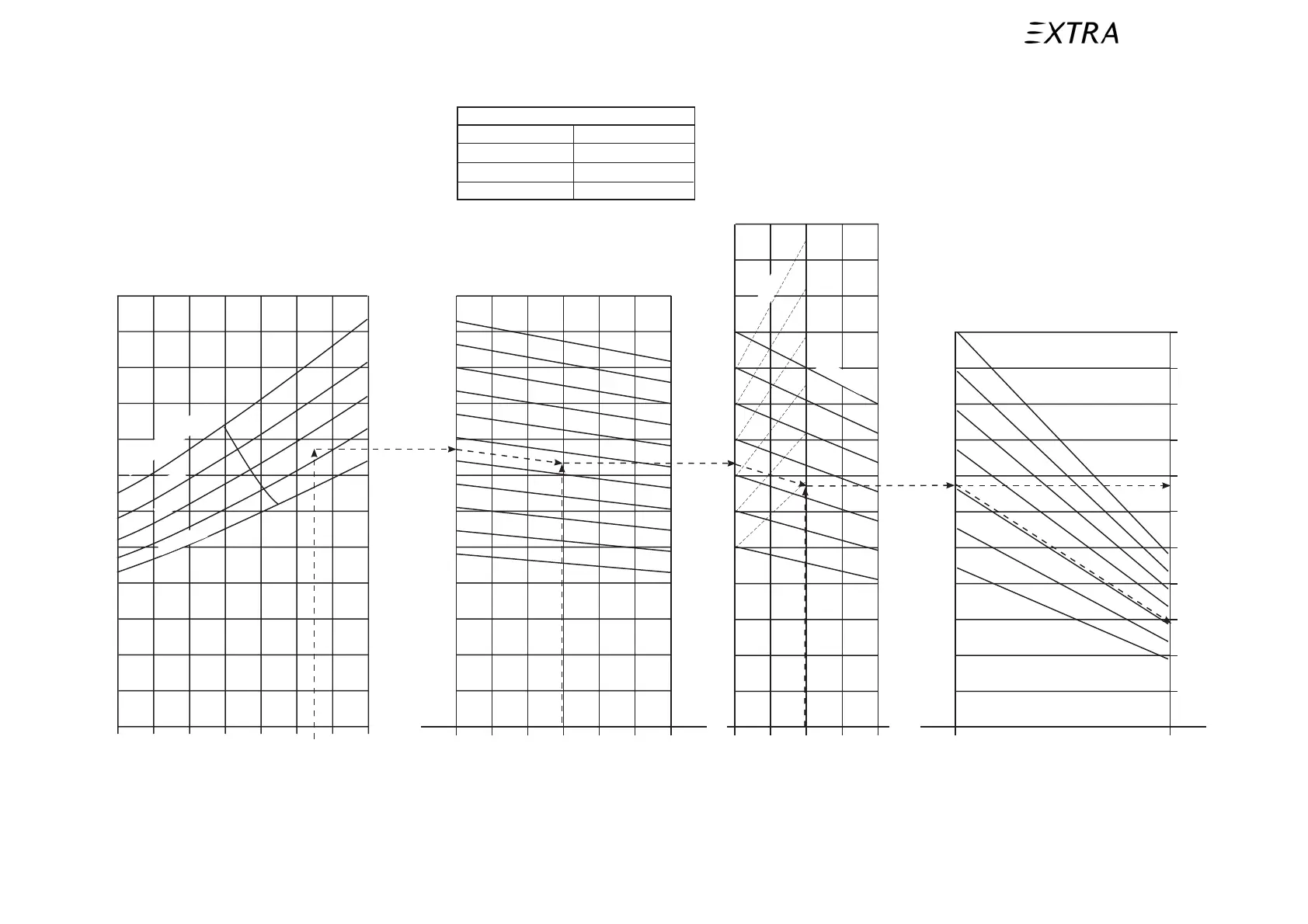

Landing Distances
-30 -20 -10 0 10 20 30 40
Outside Air Temperature, °C
2000 1800 1600 1400
Landing Weight, kg (lbs.)
Reference Line
0 5 10 15 20
Wind Component, kts
Reference Line
15 0
Height above Runway - Stop, m (ft)
Reference Line
Landing Distance, m (ft)
2000
8000
ISA
Pressure altitude, ft
4000
sea level
6000
Tail Wind
Head Wind
Landing Weight
Airspeed KCAS/KIAS
at 15 m (50 ft)
kg (lbs.)
1600 (3527)
1800 (3968)
2000 (4409)
78/77
80/79
82/81
(4409) (3968) (3527) (3086)
(50)
1100 (3609)
1000 (3281)
900 (2953)
800 (2625)
700 (2297)
600 (1969)
500 (1640)
400 (1312)
300 (984)
200 (656)
100 (328)
0
Figure 5-12
Landing (Sheet 1 of 2)
To Next Page
