For 750 W AC power supplies:
a. If necessary, slide the plastic cord retainer farther away from the back of the switch (see Figure
200).

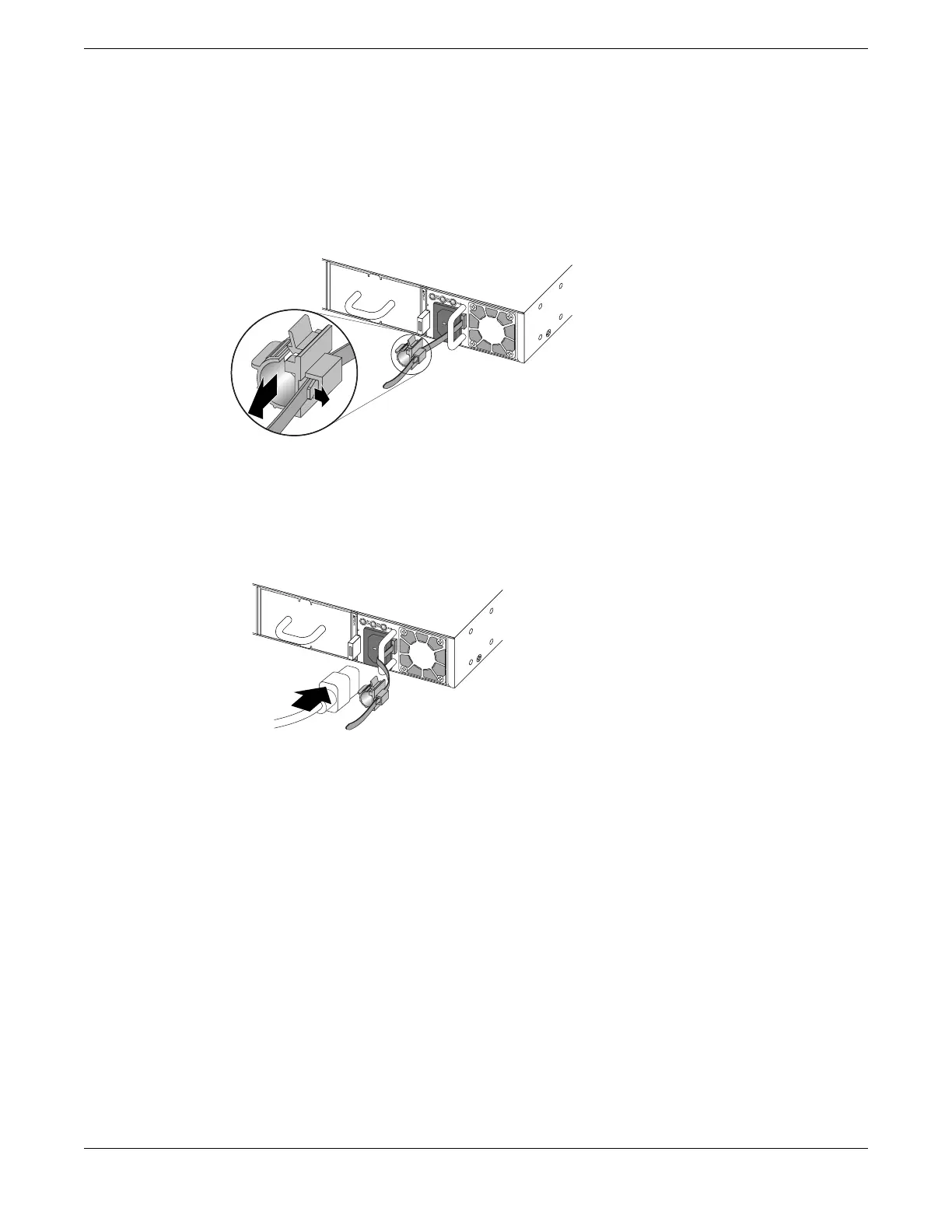

Figure 200: Moving the Power Cord Retainer
b. Connect the AC power cord to the input connector (see Figure 201).
Figure 201: Connecting the Power Cord
