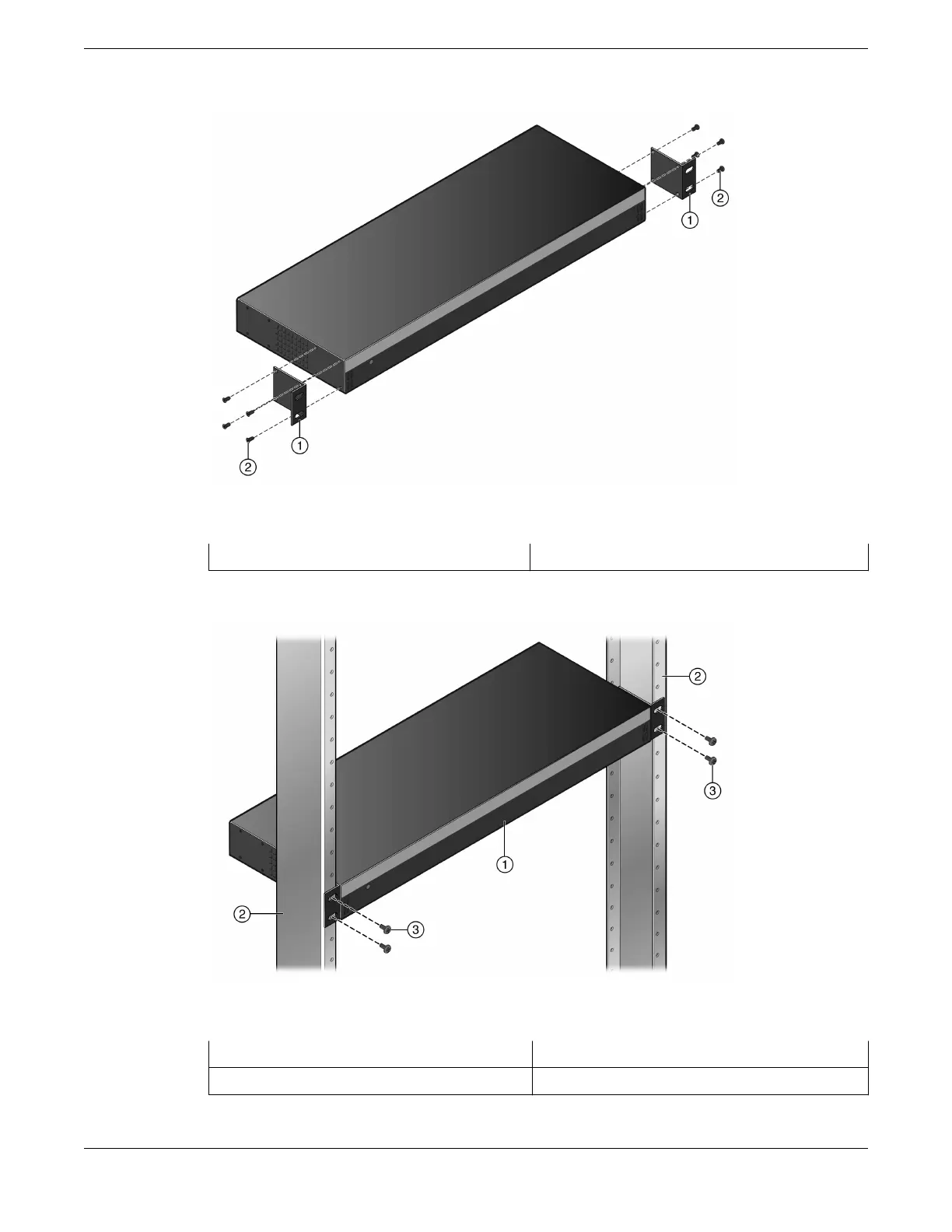

Figure 219: Attaching the Rack-Mounting Brackets
1 = Rack-mounting brackets (2) 2 = M3x6mm flathead screws (8)
2. With the rack-mounting brackets attached, position the RPS-500p between the vertical rack rails of
the 19-inch rack as shown in Figure 220.
Figure 220: Fastening the RPS-500p to the Rack
1 = RPS-500p
3 = Mounting screws (4)
2 = Rails of 19-inch rack
3. Fasten the RPS-500p securely to the rack rails using four customer-supplied rack screws.
Installing an RPS-500p in a Rack
Installing External Power Supplies
278 ExtremeSwitching Hardware Installation Guide
