3. Push the latching tab toward the power supply handle and pull outward on the handle to disengage
the power supply internal connectors.
See Figure 279.

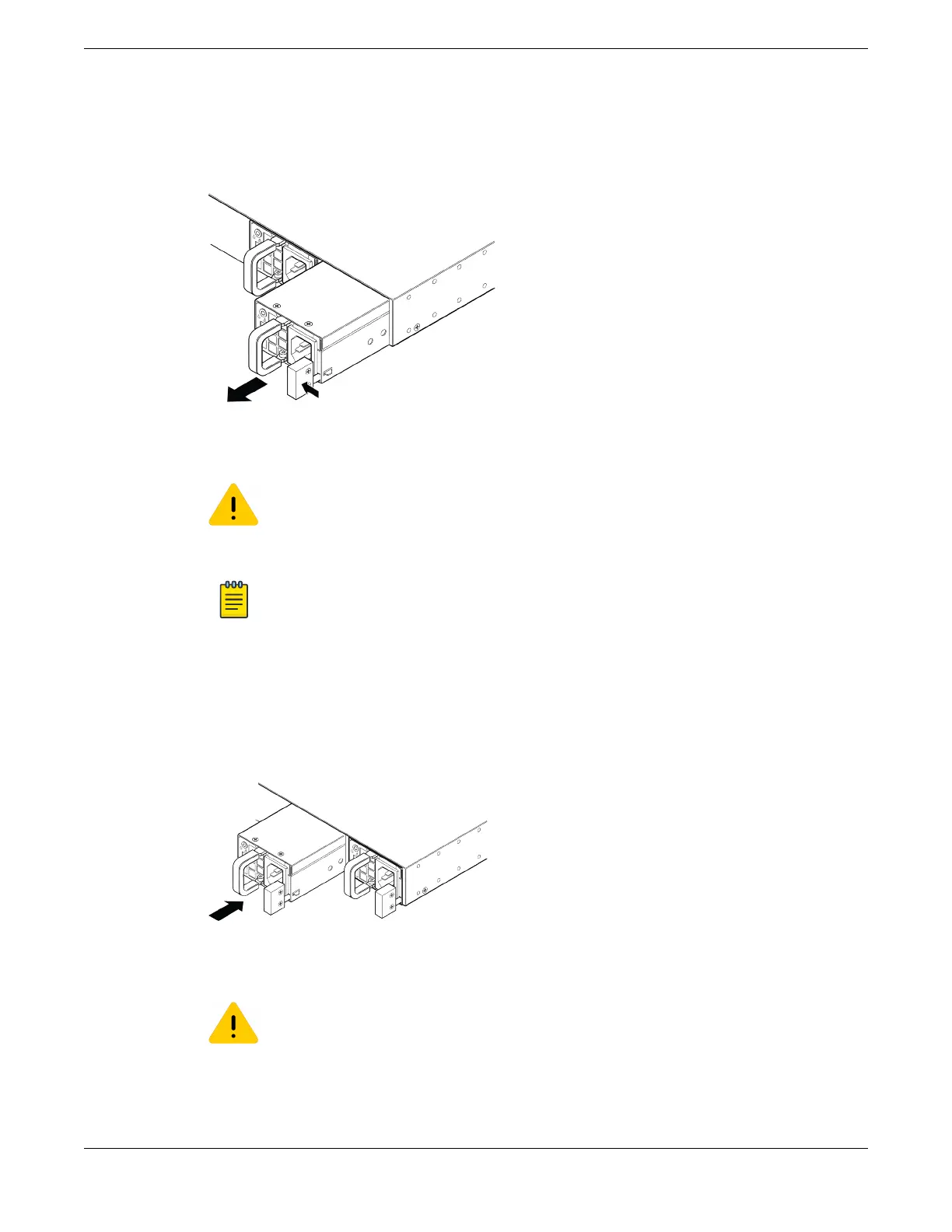

Figure 279: Removing a Summit 770 W AC Power Supply
4. Carefully slide the power supply the rest of the way out of the switch.
Caution
Power supplies can become very hot during operation. Wear thermal protective gloves
when you remove a power supply from an operating switch.
Note
If you are not installing a replacement power supply, install a cover over the unoccupied
power supply bay. Unoccupied bays must always be covered to maintain proper system
ventilation and EMI levels.
5. Verify that the replacement power supply is oriented the same way as the unit you removed, and has
the same airflow direction.
6. Carefully slide the power supply all the way into the power supply bay.
See Figure 280.
Figure 280: Installing A Summit 770 W AC Power Supply
7. Push the power supply in until the latch snaps into place.
Caution
Do not slam the power supply into the switch.
Replacing a Summit 770 W AC Power Supply Replacing AC Power Supplies
