Summit X460-48p Switch
The front panel of the Summit X460-48p switch (Figure 93) includes:
● Forty-eight autosensing 10/100/1000BASE-T ports (ports 1–48). In addition to 48 Gbps of
high-density copper connectivity, these ports provide up to 30 Watts of PoE per port.
● Four unpopulated SFP ports (ports 49–52) that provide 4 Gbps of fiber connectivity. The SFP ports
support both 100BASE-FX and 1000BASE-X optical modules.
For information about SFPs, see the Extreme Networks Pluggable Interface Modules Installation Guide.
● 10/100/1000 Mbps management port
● Serial console port used to connect a terminal and perform local management
● LEDs to indicate port status and switch operating conditions
For a description of the LEDs and their operation, see “Summit X460 Series Switch LEDs” on
page 115.
● Stack number indicator

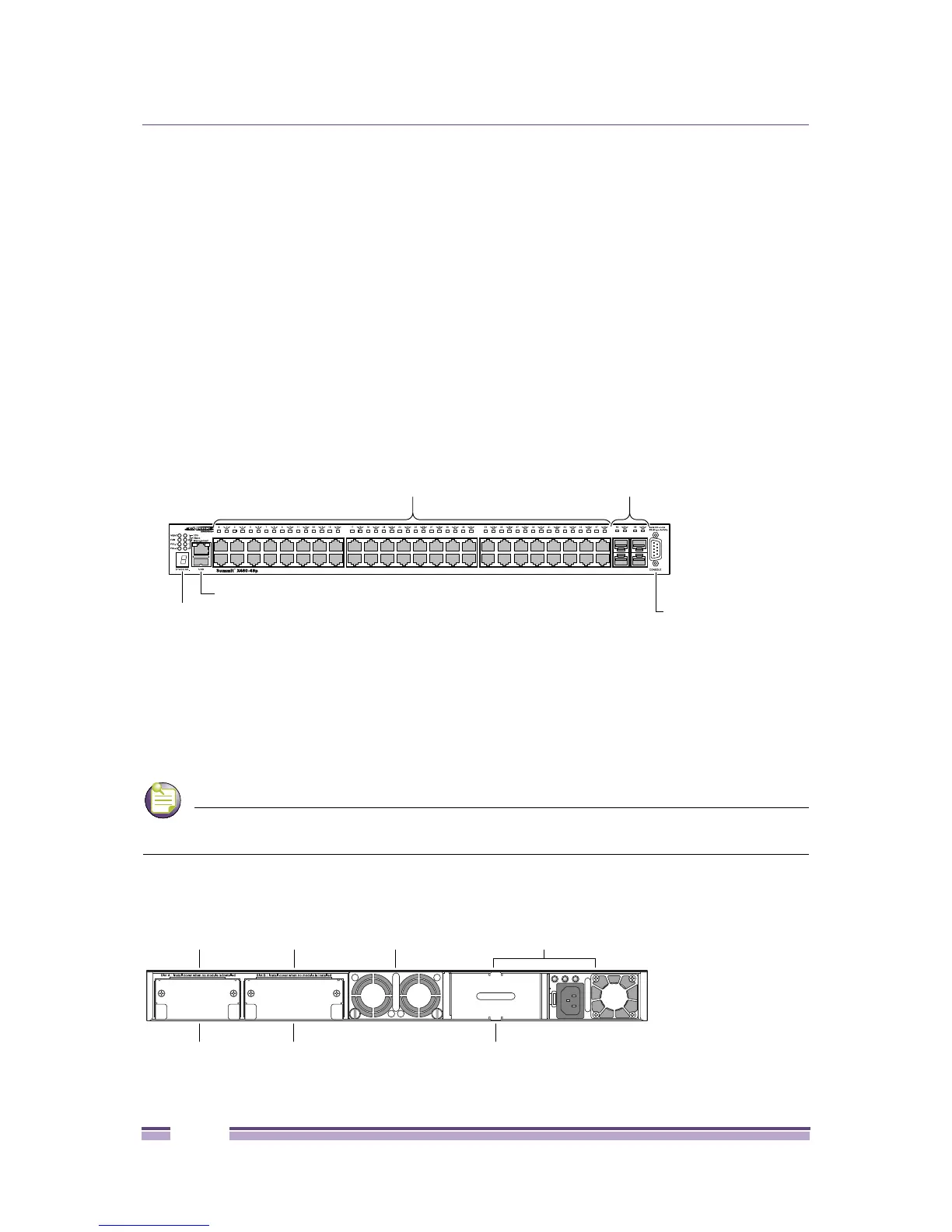

Figure 93: Summit X460-48p Switch Front Panel
The rear panel of the Summit X460-48p switch (Figure 94) includes:
● Two slots for port option cards or stacking modules (see Table 30 on page 107)
● Replaceable fan tray
● Two power supply bays for the Summit 750 W AC power supply (see “Summit 750-Watt AC Power
Supply” on page 154)
NOTE
Only the Summit 750 W AC power supply is compatible with the Summit X460-24p switch. Other Summit
replaceable power supplies do not support PoE operation in this switch.
Figure 94: Summit X460-48p Switch Rear Panel
Stack number
indicator
Management port
10/100/1000 Mbps ports
SFP ports
SH_186
Console
port
SH_189
Module slot A Module slot B
Fan tray
Filler panelFiller panelFiller panel
Two power supply
(PSU) slots
