Connecting Stacking Cables
Summit Family Switches Hardware Installation Guide
223
Connecting a SummitStack 128G/64G Stacking Cable
SummitStack 128G/64G cables are used to connect the 128-Gbps stacking ports on Summit X650 series
switches to 64-Gbps stacking ports on Summit X480 series switches. The 128-Gbps stacking ports are on
VIM1-SummitStack256 modules; the 64-Gbps stacking ports are on VIM2-SummitStack128 modules.
Because of the weight of the SummitStack 128G/64G cable, Extreme Networks strongly recommends
the use of cable management hardware to support the cables and provide strain relief at the connectors.

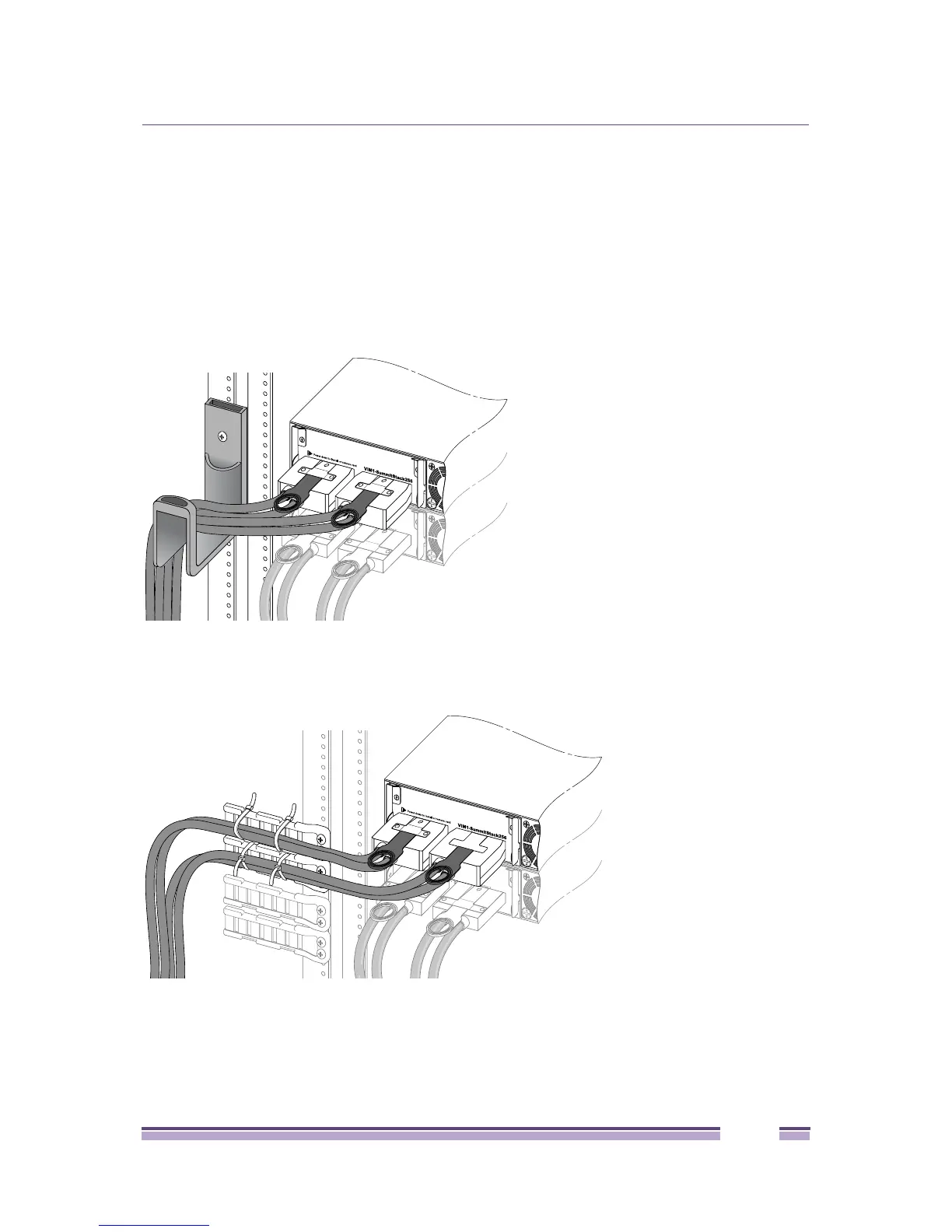

Figure 163 and Figure 164 show representative types of cable management hardware. Your particular
rack configuration may require other cable management solutions.
Figure 163: Cable Management Using a J-Shaped Support Bracket
Figure 164: Cable Management Using Tie-Wraps and Stand-Offs


