Installing a Model 10933 or 10934A 300 W DC Power Supply in a Summit X460 Series Switch
Summit Family Switches Hardware Installation Guide
251
Preparing the Cables
A ring terminal and two spade terminals are provided with the power supply. You need a crimping tool
to attach the terminals to the power and ground cables.
To prepare the cables:
1 On each wire, strip 0.25 inch (6.35 mm) of insulation from one end.
2 Insert the stripped wire end all the way into the barrel of the terminal (Figure 191) and crimp the
terminal securely to the wire.
Be sure to attach the ring terminal to the green/yellow wire.

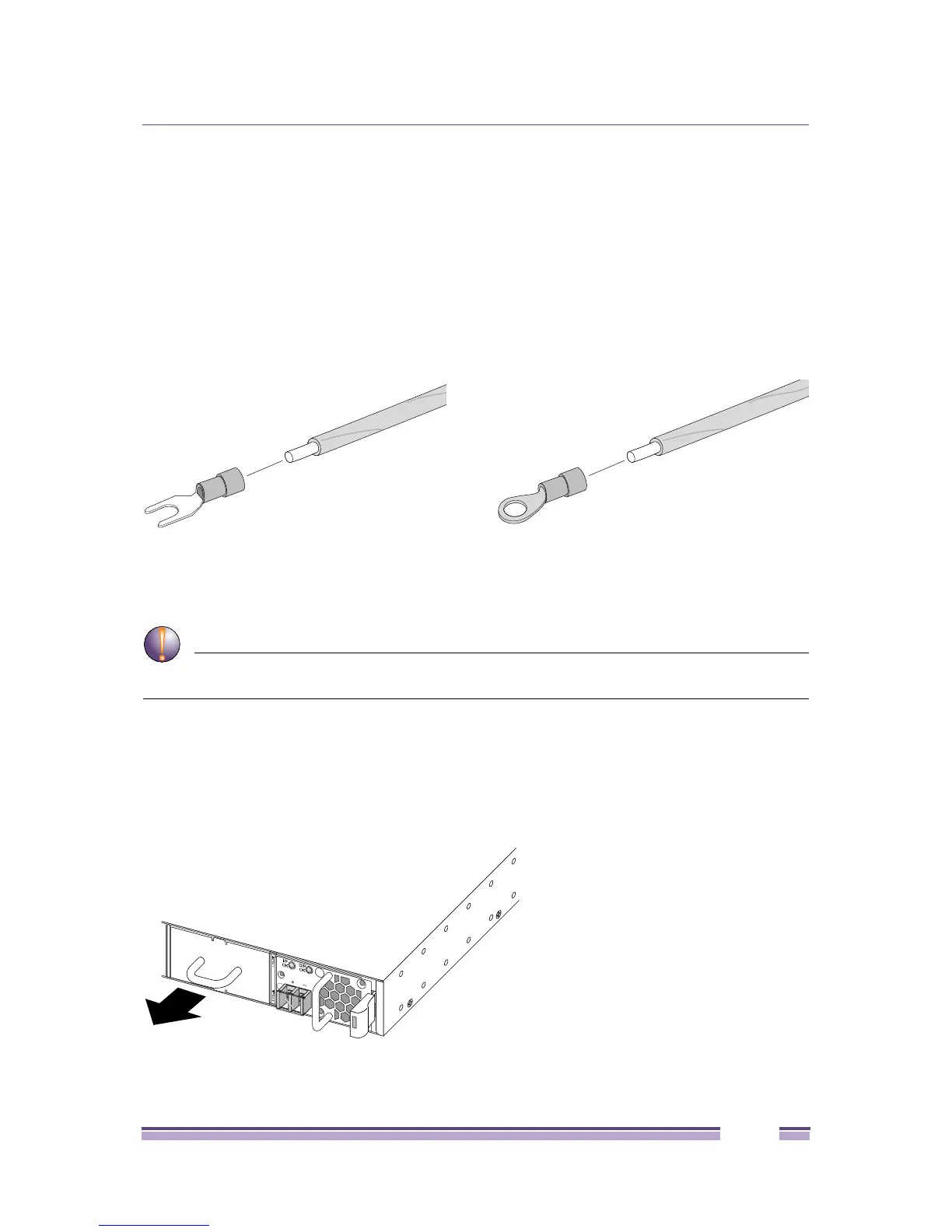

Figure 191: Attaching Terminals to Cables
Installing the Power Supply
CAUTION
The handle on the Summit 300 W DC power supply is not designed to be used to lift or carry the
Summit X460 series switch.
To install a DC power supply in a Summit X460 series switch:
1 Attach an ESD-preventive wrist strap to your bare wrist and connect the metal end to an appropriate
ground point on the rack.
2 If necessary, remove a blank panel from the back of the Summit X460 series switch (Figure 192).
Figure 192: Removing a Blank Panel
SH_109
S
H
Power connection wire
Ground wire
SH_207
