Front-Mounting a Switch in a Two-Post Rack
To front-mount a Summit X670 series switch in a two-post rack:
1 Attach each mounting bracket as follows:
a Set the bracket against the switch housing, with the flange even with the front panel of the switch
(see Figure 241).
b Use six of the provided screws to secure the bracket to the switch housing.
c Repeat steps a and b to attach the other bracket to the other side of the switch.

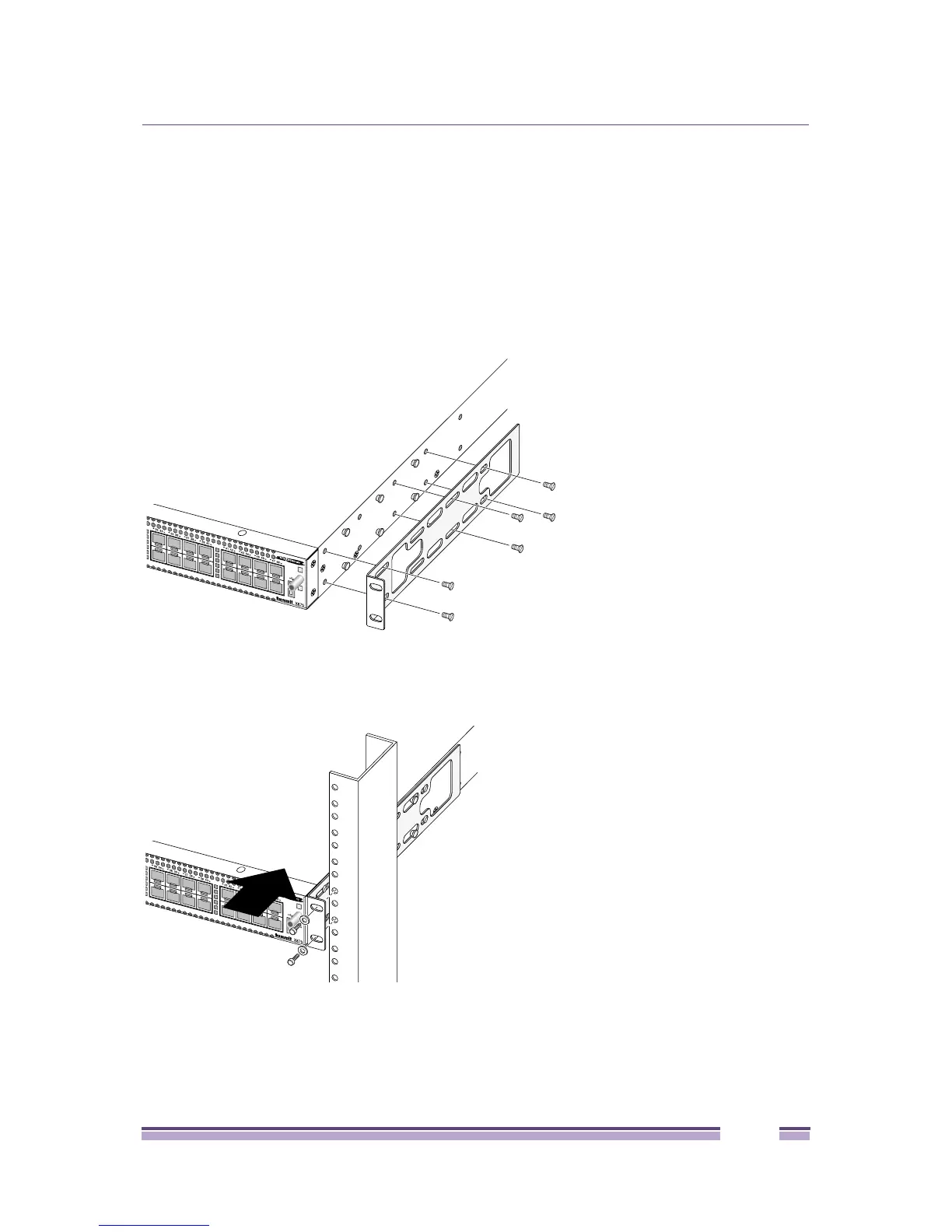

Figure 241: Attaching a Rack-mounting Bracket
2 Slide the switch into the equipment rack (Figure 242).
Figure 242: Installing the Summit X670 Series Switch
3 Secure the mounting bracket flanges to the rack, using screws that are appropriate for the rack.
(Rack-mounting screws are not provided.)
4 Ground the switch.
SH_257
SH_258
