Chapter 1: Summit Family Switches
Summit Family Switches Hardware Installation Guide
76
● Ethernet management port
● Serial console port implemented as an RJ-45 connector, used to connect a terminal and perform local
management
● LEDs to indicate port status and switch operating conditions
For a description of the LEDs and their operation, see “Summit X440 Series Switch LEDs” on
page 77.

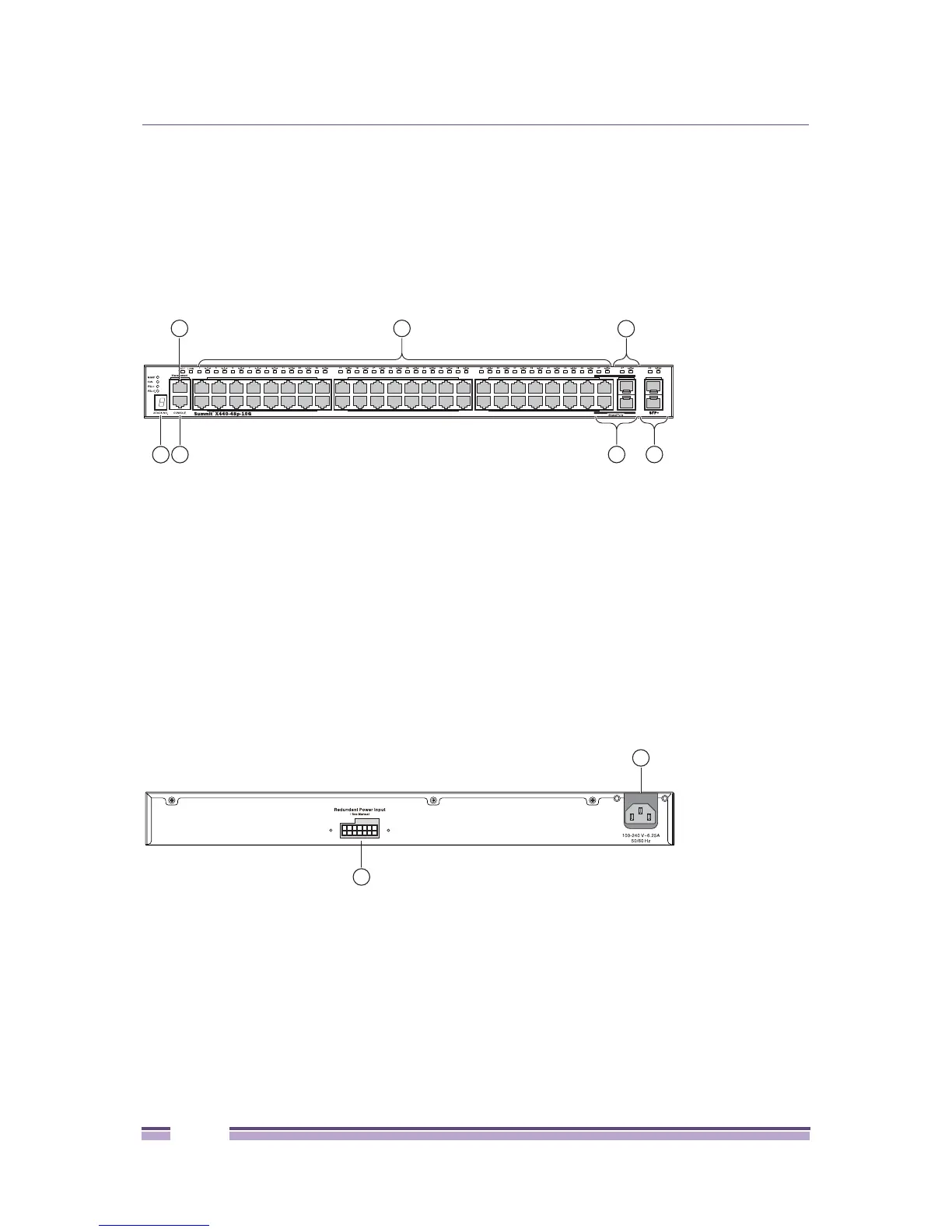

Figure 57: Summit X440-48p-10G Switch Front Panel
The rear panel of the Summit X440-48p-10G switch (Figure 58) includes:
● Redundant power input connector for optional connection to the EPS-C2 External Power Module
The connecting redundant power supply cable is shipped with the power module. See “Installing an
EPS-C2 Chassis” on page 322 for more information.
● AC power input socket
The internal AC power supply operates from 100 VAC to 240 VAC.
Figure 58: Summit X440-48p-10G Switch Rear Panel
SH_278
4
5
21
6 7
3
1 = Ethernet management port
2 = 10/100/1000BASE-T PoE ports
3 = SFP ports
4 = Stack number indicator
5 = Console port
6 = Combination ports
7 = SFP+ ports
1
SH_279
2
