Extron electronics XTP II CrossPoint Series User Manual

XTP CP 4o Fiber 4K (fiber optic output board) — See figure 14.
OUTPUTS
SIGLINK
XTP OUT
LANLAN LANLAN
SIG LINK
XTP OUT
SIGLINK
XTP OUT
SIGLINK
XTP OUT
OVER FIBER
XTP CP 4o FIBER 4K
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
33 3333 3355 5555 55 44

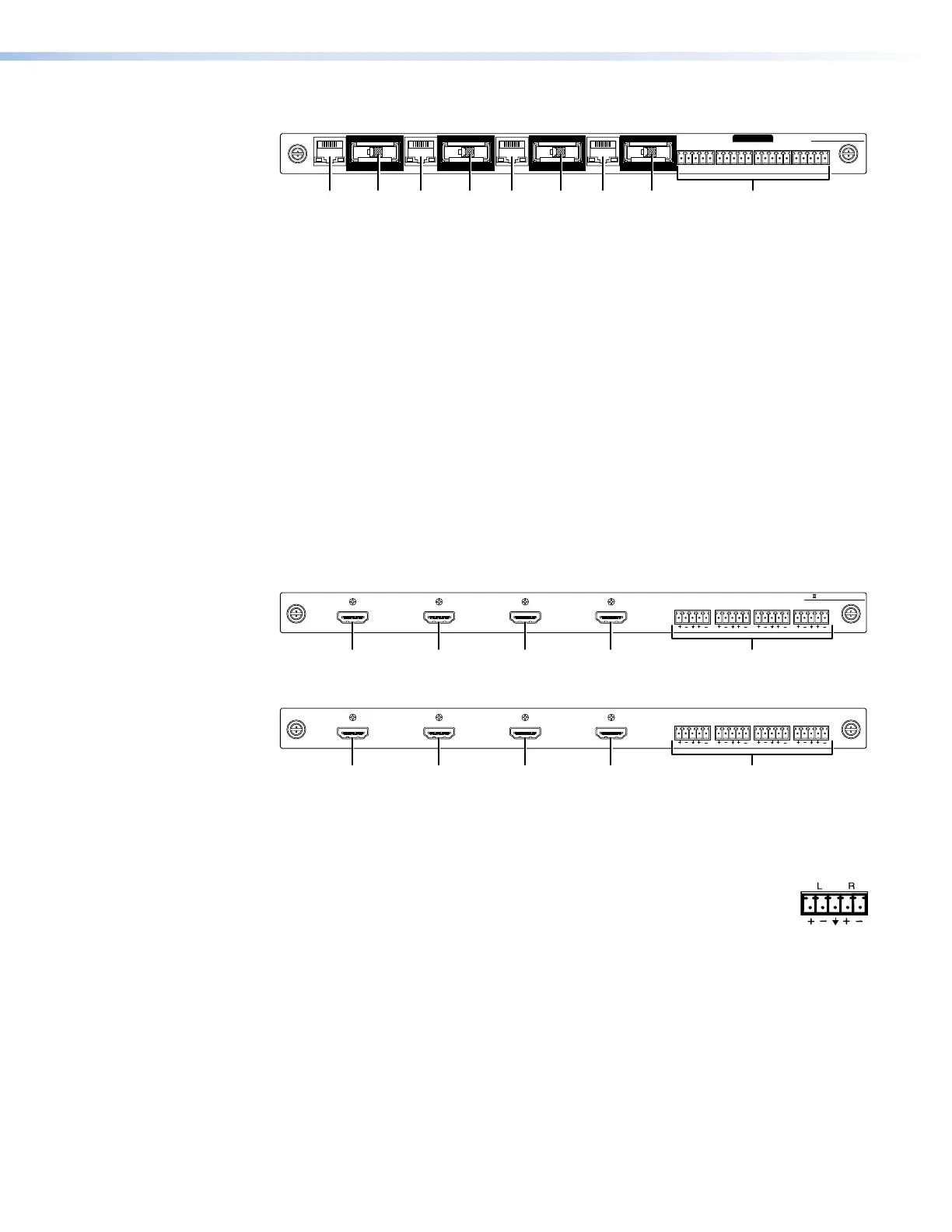

Figure 14. Fiber Optic Output Board Connectors and Indicators
5
XTP Out connectors — Connect a fiber optic cable between the Rx connector
on a compatible Extron fiber optic receiver and this connector. This board uses
SFP modules with industry-standard LC fiber optics connectors to provide reliable
physical connectivity and precise fiber core alignment.
Signal LED — Indicates that a cable is connected to a fiber optic receiver.
Link LED — Indicates that a valid fiber optic signal is detected.
3
LAN (Ethernet) connectors — As desired, connect a TP cable between a
host device or control LAN and this connector for passive extension to the LAN
(Ethernet) connector on the connected endpoint (see TP connectors on page 21
to wire the connector).
4
IR/RS-232 Over Fiber Connectors — If desired, connect serial RS-232 signals,
modulated IR signals, or both to these 3.5 mm, 5-pole captive screw connectors
for bidirectional RS-232 and IR communications on the associated inputs (see
RS-232 and IR connectors on page 23 to wire the connectors).
XTP II CP 4o 4k PLUS and XTP CP 4o HDMI (HDMI Output boards) —
See figure 15 and figure 16.
AUDIO
LR LR LR LR
OUTPUTS
XTP II CP 4o HD 4K PLUS
66 6666 66 77
Figure 15. 4K HDMI Output Board Connectors
OUT
XTP CP 4o HDMI
AUDIO
LR LR LR LR
OUT
7766 66 66 66
Figure 16. HDMI Output Board Connectors
6
Output connector — Connect an HDMI cable between this port and an HDMI
video display (see HDMI connectors on page 23 for pin assignments and to use
the LockIt HDMI Cable Lacing Bracket to secure the connector to the transmitter).
7
Audio Outputs (analog audio) connectors — Connect audio
devices such as an audio amplifier or powered speakers, to these
3.5 mm, 5-pole captive screw connectors. These connectors output
unamplified, level audio, whether it is tied from an analog input or
de-embedded from a digital input (see Analog audio output connectors on
page 26 to wire the connectors).
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Installation 19
