Extron electronics XTP II CrossPoint Series User Manual

XTP CP 4o DVI Pro (DVI Pro Output board) — See figure 17.
OUT
XTP CP 4o DVI Pro
AUDIO
LR LR LR LR
OUT
88 8888 88 77

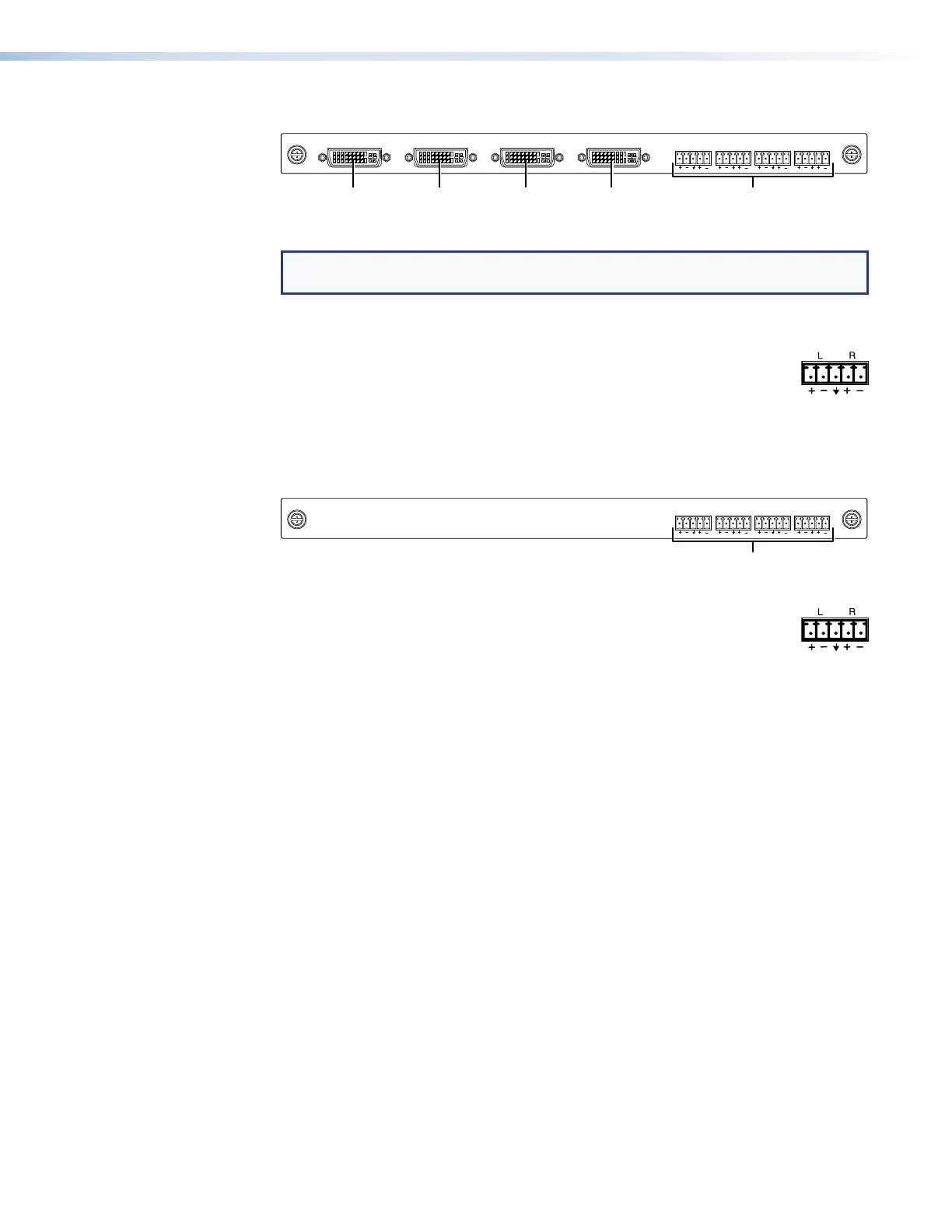

Figure 17. DVI Pro Output Board Connectors
NOTE: Although the DVI Pro boards use DVI-I connectors, the switchers handle
only DVI-D (digital) video.
8
Output connector — Connect a DVI cable between this port and an DVI video
display (see DVI connectors on page 24 for pin assignments).
7
Audio Outputs (analog audio) connectors — Connect audio
devices such as an audio amplifier or powered speakers, to these
3.5 mm, 5-pole captive screw connectors. These connectors output
unamplified, level audio, whether it is tied from an analog input or
de-embedded from a digital input (see Analog audio output connectors on
page 26 to wire the connectors).
XTP CP 4o SA (Analog Audio Output board) (see figure 18)
OUT
XTP CP 4o SA
AUDIO
LR LR LR LR
OUT
77
Figure 18. Analog Audio Board Connectors
7
Audio Outputs (analog audio) connectors — Connect audio
devices such as an audio amplifier or powered speakers, to these
3.5 mm, 5-pole captive screw connectors. These connectors output
unamplified, level audio, whether it is tied from an analog input or
de-embedded from a digital input (see Analog audio output connectors on
page 26 to wire the connectors).
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Installation 20
