RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP5000 High Definition Card Printer/Encoder User Guide (Rev. 1.4)
3-22
Connecting Power to HDP5000 Printer and Lamination Module (continued)

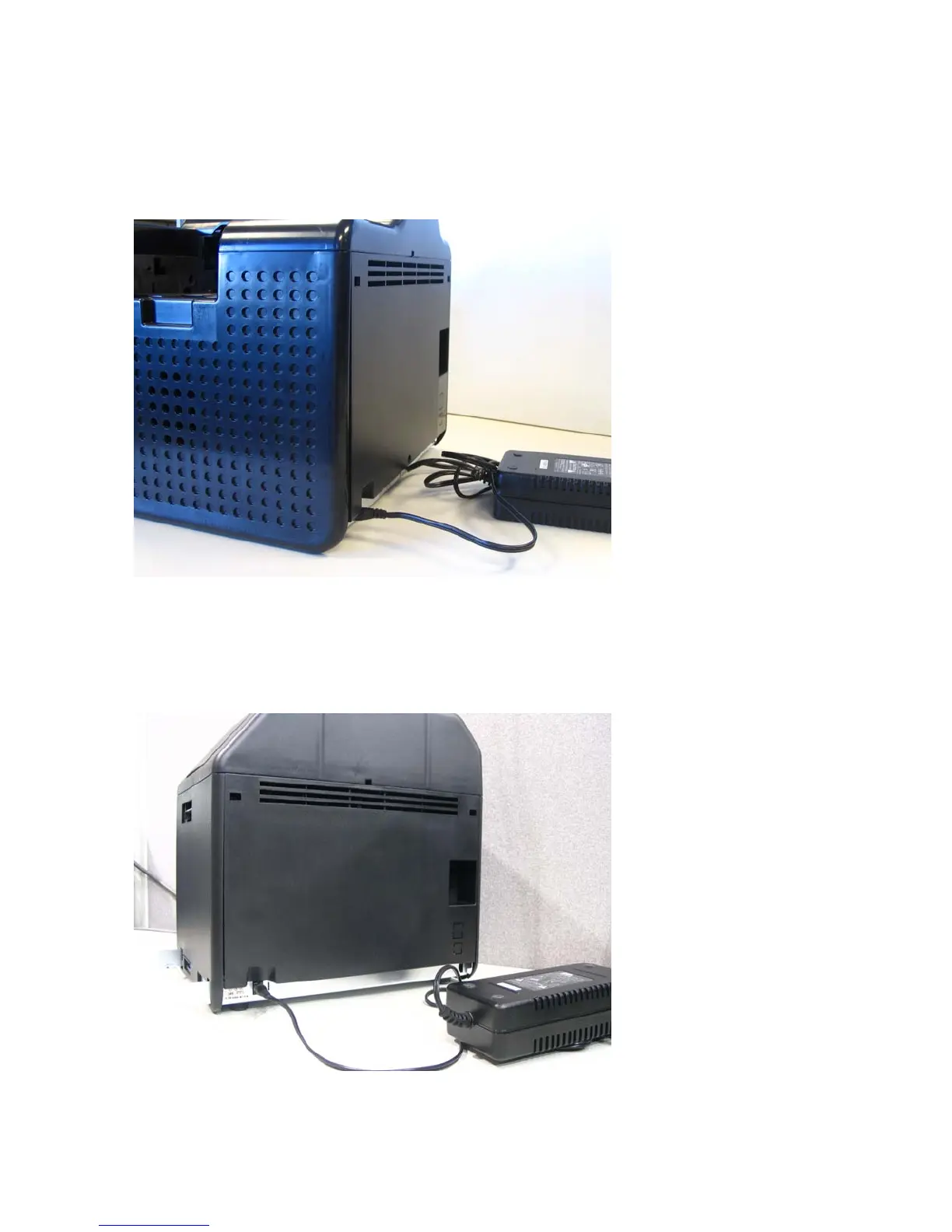

Display C - Connecting the plug from the power supply to the Printer, as shown below.
Display D - Connecting the plug from the power supply to the Lamination Module, as shown
below. The Printer must be attached.
To Next Page
