Chapter 7: Configuring the FARO Gage in CAM2 Gage
CAUTION: The probe must be well-seated in the hole when digitizing all
compensation points. Even one or two poorly digitized points significantly
affects the optimization process, which then has an effect on the accuracy of
the Gage.
• Look at the dialog box to
help you stay within the
zone.

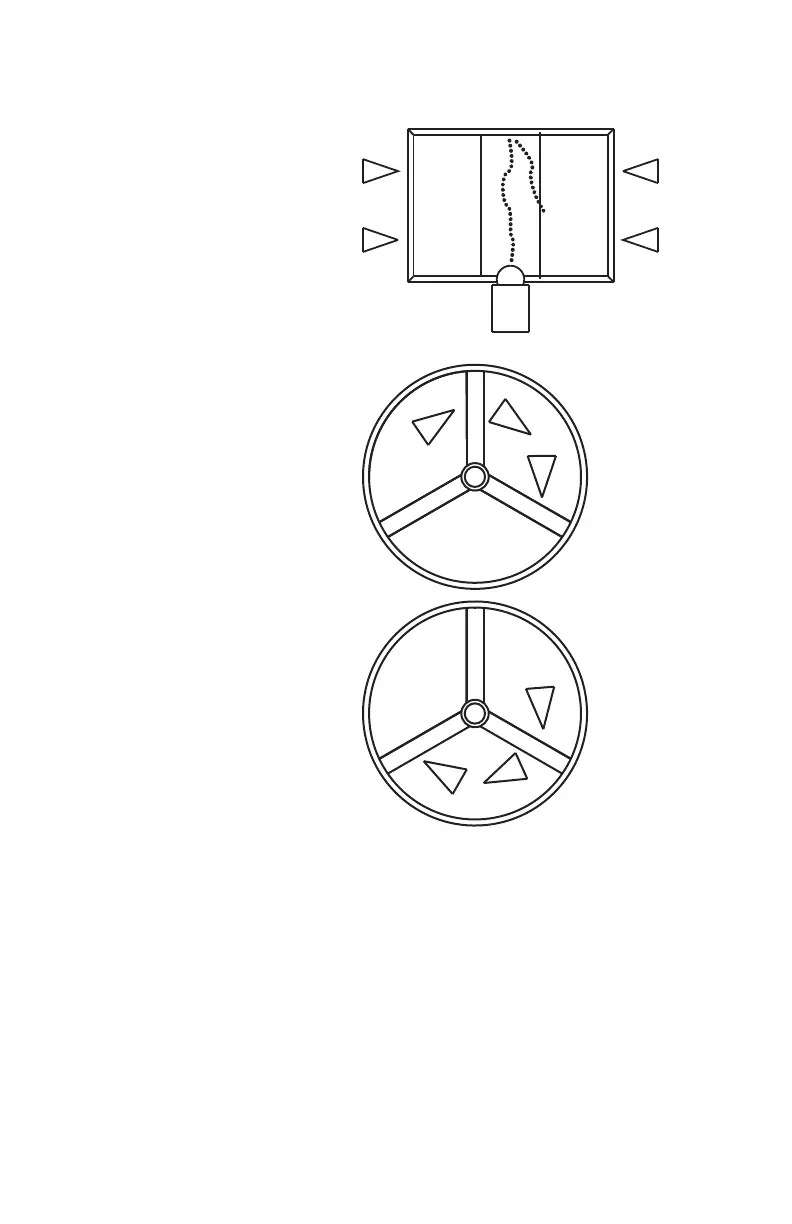

4 Sweep again until all 200
points are digitized. Look at
the dialog box to help you
digitize all of the points.
5 Rotate the Probe to the next
position. Look at the dialog
box and move the handle
until you reach the start of
the next position.
• Repeat steps 1 through 4
and digitize 200 more
points in this position.
6 Rotate the Probe to the last
position. Look at the dialog
box and move the handle
until you reach the start of
the next position.
• Repeat steps 1 through 4
and digitize 200 more
points in this position.
