ST100 Series Flow Meter OPERATION
Fluid Components International LLC 21

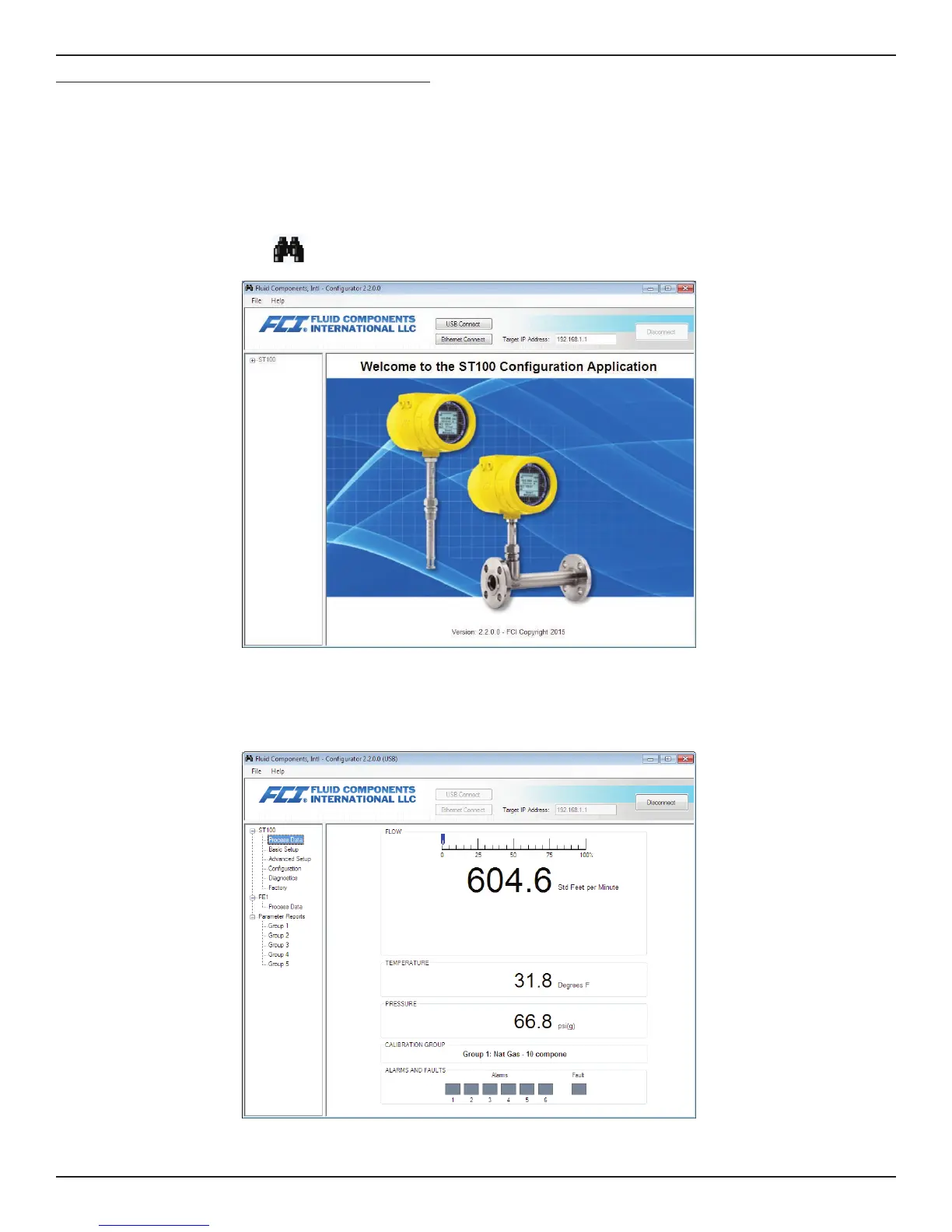

Welcome Screen
The USB Connect button is the primary communication method. Ethernet communication is also an option, but it is much slower than USB commu-
nication. An example Process Data screen is shown below.
Process Data Screen
ST100 Conguration Software Application (User Password: 2772)
The ST100 configuration software application provides an alternate and more extensive method for configuring the instrument. However, this requires
opening the electronics enclosure and connecting to a PC via the USB port. The ST100 configuration software application is intuitive, easy to use and
the preferred method for commissioning the instrument.
Note:
An asterisk (*) shown on various menu locations on the HMI indicates that the instrument is connected to the ST100 configu-
ration software application. Note that not all configuration software application menus are accessible via the HMI.
The ST100 series of instruments require a USB 2.0 cable with A-type male connectors on both ends. Connect a USB cable between the computer
(with the ST100 configuration software installed) and the USB port on the ST100 Interface Board (remove the blind lid). Launch the application via the
PC's desktop ST100 Configurator icon: An example ST100 configuration software Welcome screen is shown below.
