FCI ST100 series User Manual

ST100 Series Flow Meter APPENDIX B - WIRING DIAGRAMS
Fluid Components International LLC 67

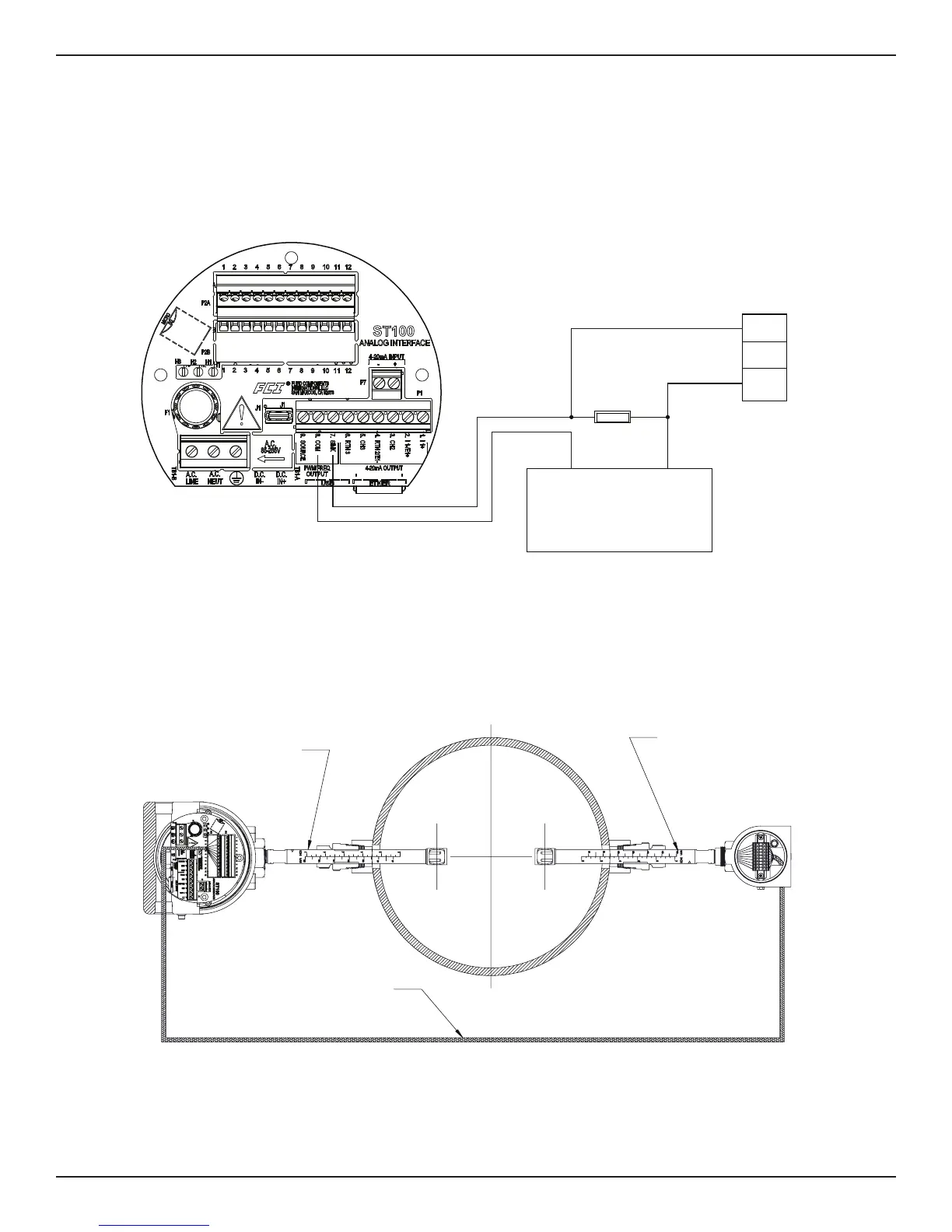

Figure B-15 – Sink, Pulse/Frequency Output
Figure B-16 – Flow Element Connection, Integral/Remote
10KΩ
COUNTER
INPUT
+
-
EXTERNAL 24 VDC
POWER SUPPLY
COM
NPN
C01027-1-4
C
L
C01057-1-3
REMOTE FLOW ELEMENT
(SENSOR NO.2)
INTEGRAL FLOW ELEMENT
(SENSOR NO.1)
8 CONDUCTOR
SHIELDED CABLE
(SEE FIGURE-B13 FOR DETAIL)
