APPENDIX C - ADDITIONAL INFORMATION ST100 Series Flow Meter
78 Fluid Components International LLC
8. IDR Test is Complete.
Record values for comparison.
7. IDR Test is Running.
5. Input Password E#C4. Select FE 1 for ST100 single
point system.
6. Select Password.
1. Normal Operation Display:
Select and hold the hot key for
3 seconds.
3. Select Self Test.2. Select Diagnostics.
Hot Key

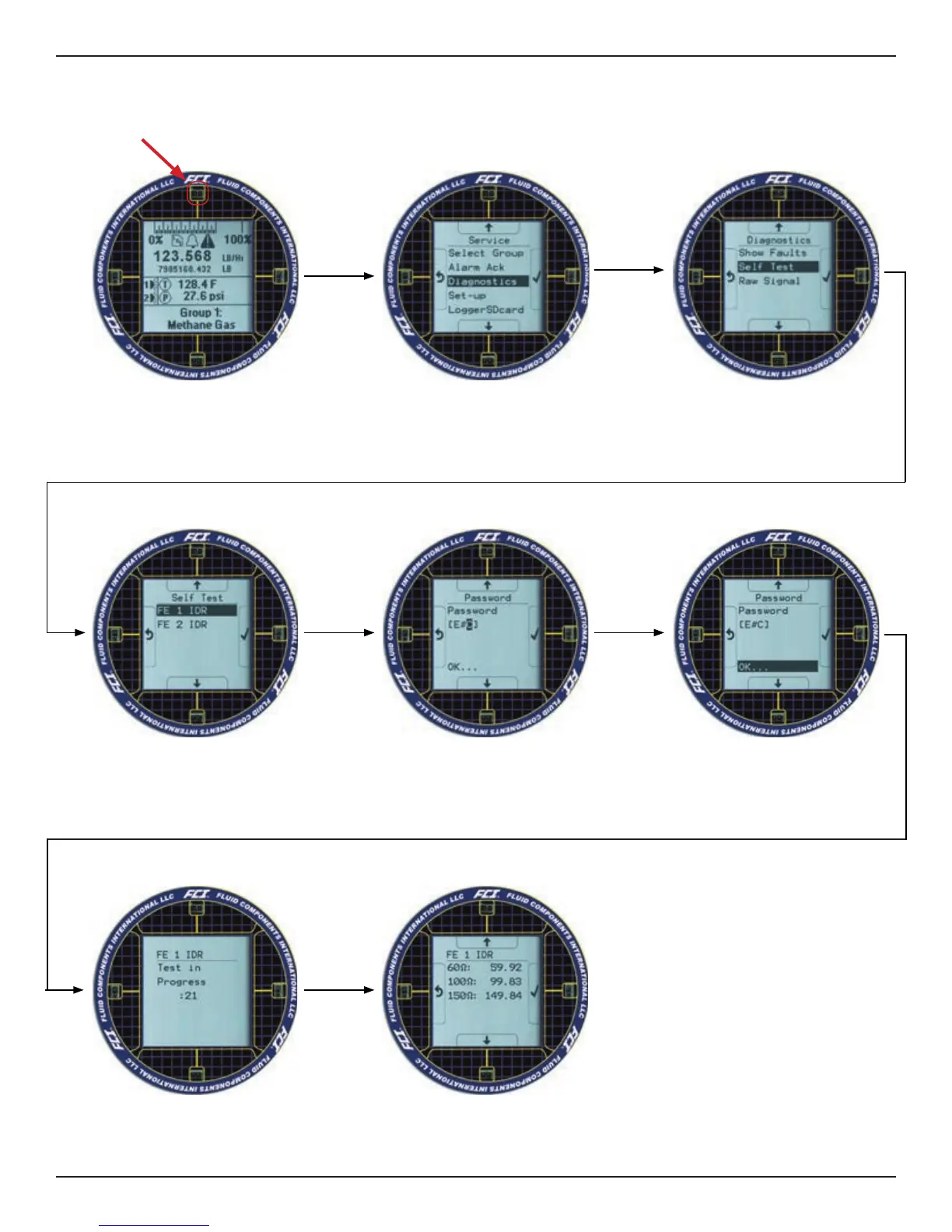

Internal Delta-R Resistor Check (IDR) HMI Display Sequence
To Next Page
