ST100 Series Flow Meter INSTALLATION
Fluid Components International LLC 15

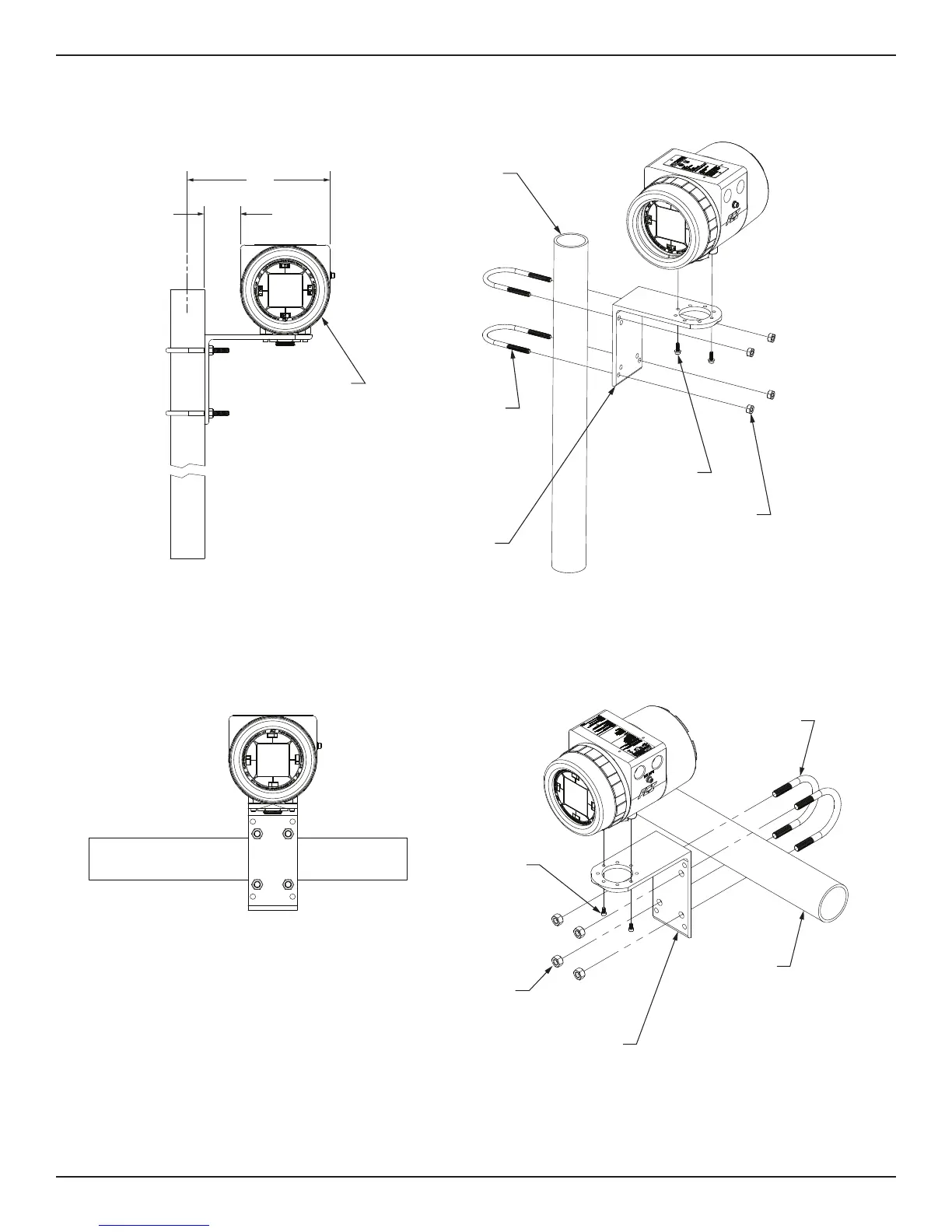

Figure 9
Figure 10
Remote Pipe Mounting
Refer to the figures below for remote transmitter pipe mounting details.
C00994-2-1
1½" or 1"
PIPE
ST100 SERIES
TRANSMITTER
2x 1/4"-20
U BOLTS, SST
ALUMINUM BRACKET
(FCI PROVIDED)
4x 1/4" HEX NUT
2x M4 SCREWS
(FCI PROVIDED)
(2.0)
(8.0)
C01117-2-1
2" PIPE
2x 3/16"-16
U BOLTS, SST
2x M4 SCREWS
(FCI PROVIDED)
ALUMINUM BRACKET
(FCI PROVIDED)
4x 3/16" HEX NUT
