INSTALLATION ST100 Series Flow Meter
14 Fluid Components International LLC

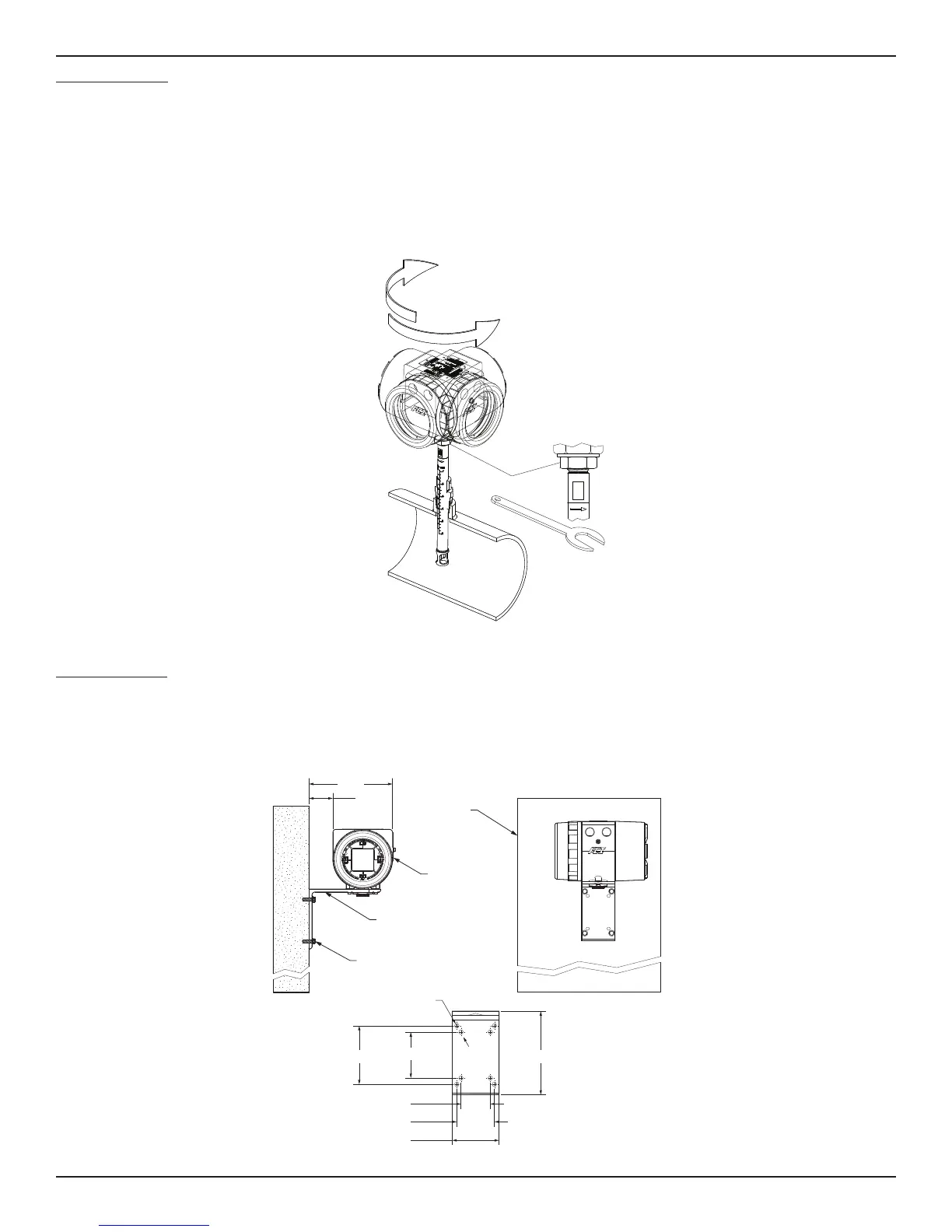

Figure 7
Integral Electronics
The integral electronics package is mounted during the flow element installation process. The integral electronics can be rotated ±180 degrees on the
top of the flow element insertion pipe. This is done by loosening the lock nut at the base of the enclosure and rotating the enclosure to the preferred
orientation. Do not rotate the electronics enclosure more than ±180 degrees, damage to internal wiring may result from over rotating
the enclosure!
Lock Nut Torque Specification: 30-35 ft-lbs (40-47 N-m)
Provide integral electronics with additional support/bracing in applications where excessive vibration is present. A mounting bracket is available
from FCI to support the electronics when additional support is required.
Figure 8
Remote Electronics
A mounting bracket is supplied when the transmitter is ordered for remote mounting. The bracket mounting details are shown in Figure 8 below.
Refer to the outline installation drawings in Appendix A for additional mounting details. The electronics can be easily wall or pipe mounted. The
mount bracket is designed for .25 inch or M6 mounting hardware. Securely mount the electronics to cement or structural support columns or beams.
Mounting to plaster is not recommended and does not meet system approval requirements.
C00995-2-1
ST100 SERIES
TRANSMITTER
SECURING SCREWS
1/4" or [M6]
MOUNTING BRACKET
(FCI PROVIDED)
WALL
(5.00)
(2.25)
(1.75)
(2.00)
(3.50)
(2.75)
(7.00)
(4x Ø.27)
C00988-2-1
< 180
°
< 180
°
THIS
SURFACE
PARALLEL
TO FLOW
