FCI ST100 series User Manual

APPENDIX B - WIRING DIAGRAMS ST100 Series Flow Meter
60 Fluid Components International LLC

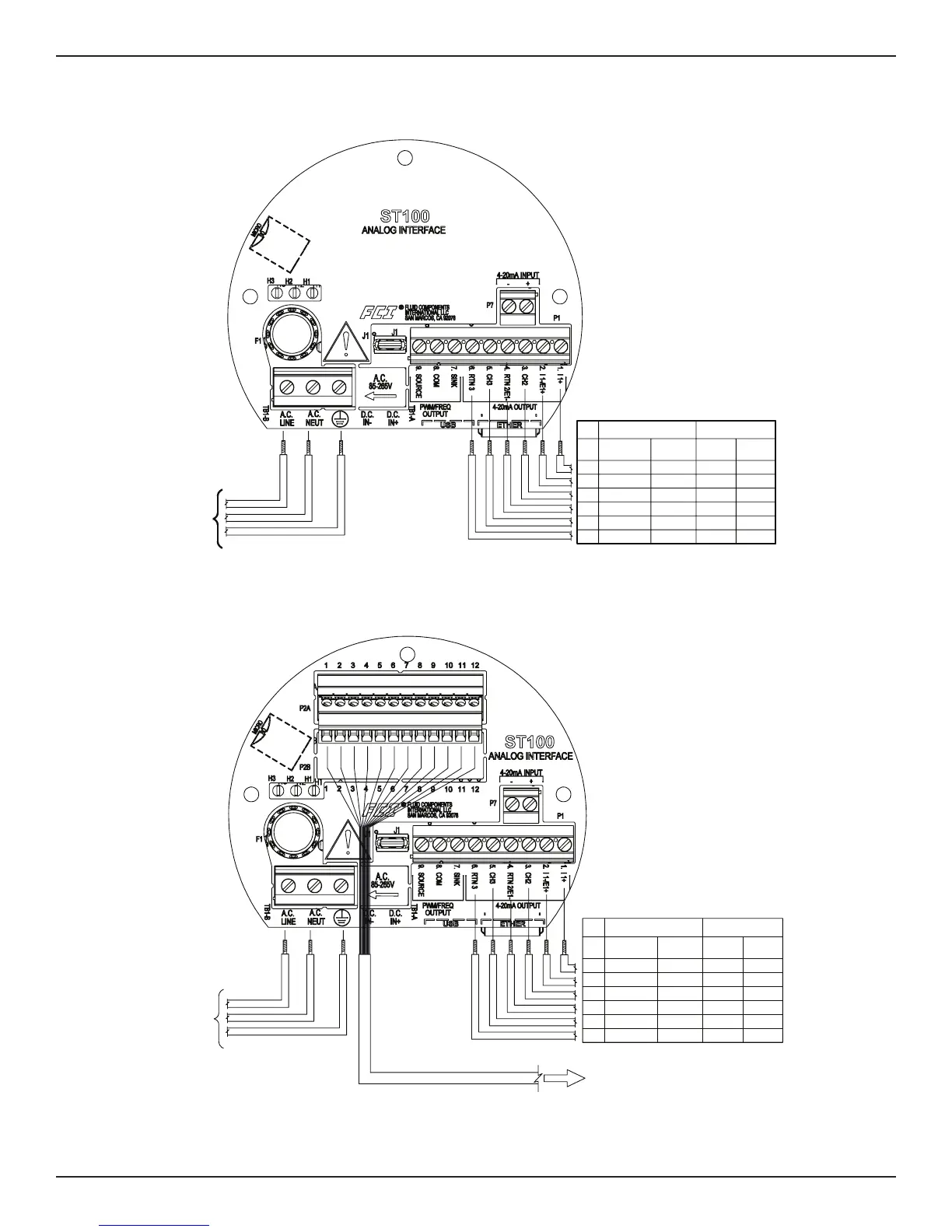

Figure B-1 – Integral: AC Input Power, Analog and HART Output
Figure B-2 – Remote: AC Input Power, Analog and HART Output
AC Input Power
86-265 Vac
Customer Connection
16-22 Ga Wire
C00990-1-3
ANALOG OUTPUT (HART) ANALOG OUTPUT
1
2
4
6
3
5
(-)
(+)
(+)
(-)
(+)
(-)
CUSTOMER CONNECTIONS
HART OUTPUT IS ALWAYS ON CH1
CH 1 (INT)
CH 1 (EXT) CH2 CH3
(-)
(+)
AC Input Power
86-265 Vac
Customer Connection
16-22 Ga Wire
Remote Cable, Shielded
300-1000 ft
Remote Flow Transmitter
(Element)
C00989-1-3
ANALOG OUTPUT (HART) ANALOG OUTPUT
1
2
4
6
3
5
(-)
(+)
(+)
(-)
(+)
(-)
CUSTOMER CONNECTIONS
HART OUTPUT IS ALWAYS ON CH1
CH 1 (INT)
CH 1 (EXT) CH2 CH3
(-)
(+)
