APPENDIX B - WIRING DIAGRAMS ST100 Series Flow Meter
66 Fluid Components International LLC

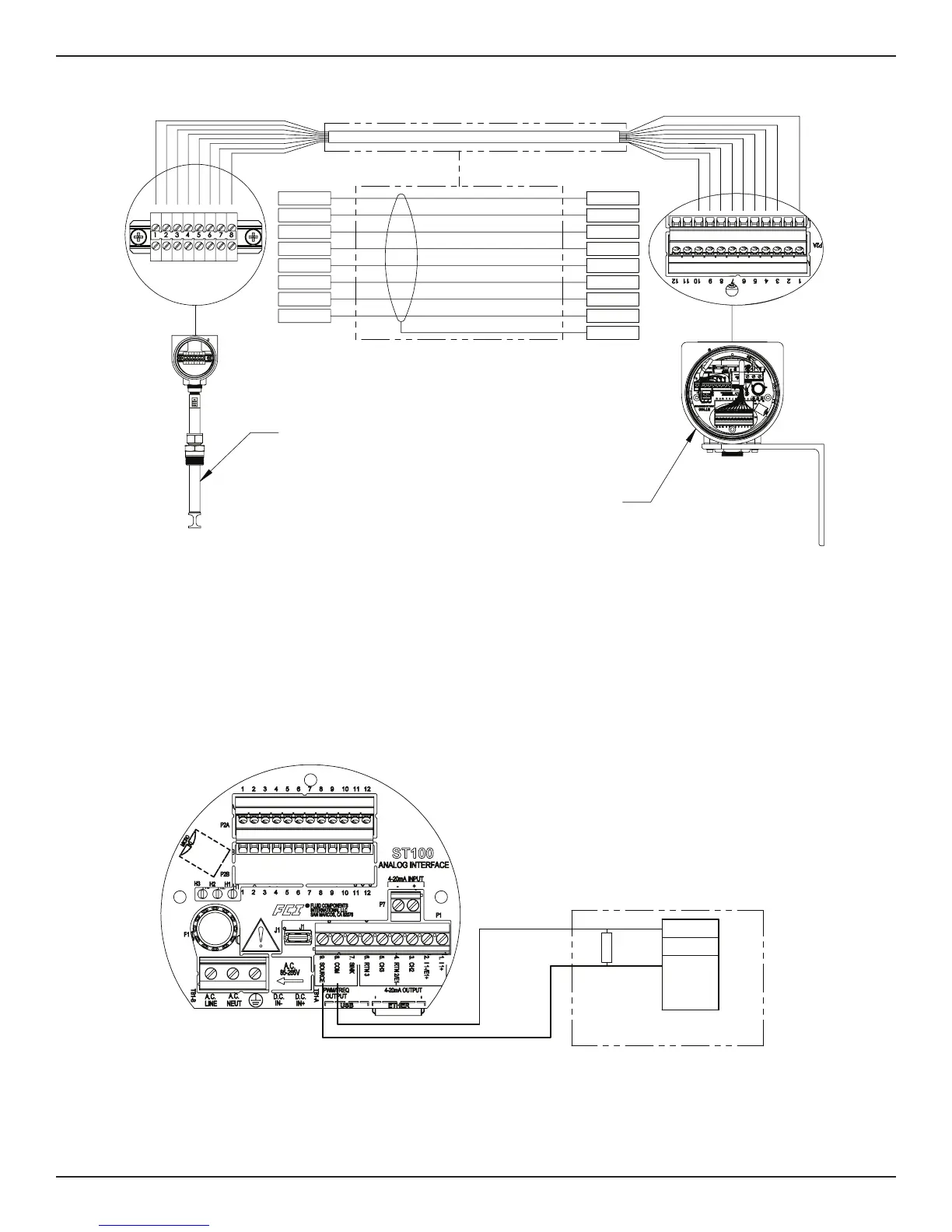

Figure B-13 – Remote: 8-Conductor Interconnection Cable
Figure B-14 – Source, Pulse/Frequency Output
ST100
REMOTE TRANSMITTER
8 CONDUCTOR SHIELDED CABLE
7 HTR EXC#1
8 HTR RTN
6 ACT EXC
4 ACT SEN
2 GND SEN
1 RTD GND
5 RTD EXC
3 REF SEN
HTR EXC#1 1
HTR RTN 3
ACT EXC 4
ACT SEN 5
GND SEN 6
REF EXC 8
REF SEN 9
GND 7
SHIELD 10
WHITE (PVC/TEFLON)
BLUE (PVC/TEFLON)
ORANGE (PVC/TEFLON)
BLACK (PVC/TEFLON)
YELLOW (PVC)/ BROWN (TEFLON)
GREEN (PVC/TEFLON)
RED (PVC/TEFLON)
BROWN (PVC)/ YELLOW (TEFLON)
SENSOR ELEMENT
LOCAL ENCLOSURE TRANSMITTER
C00998-1-2
NPN
Com
Counter Input
COM
SOURCE
10K Ω
C01026-1-3
