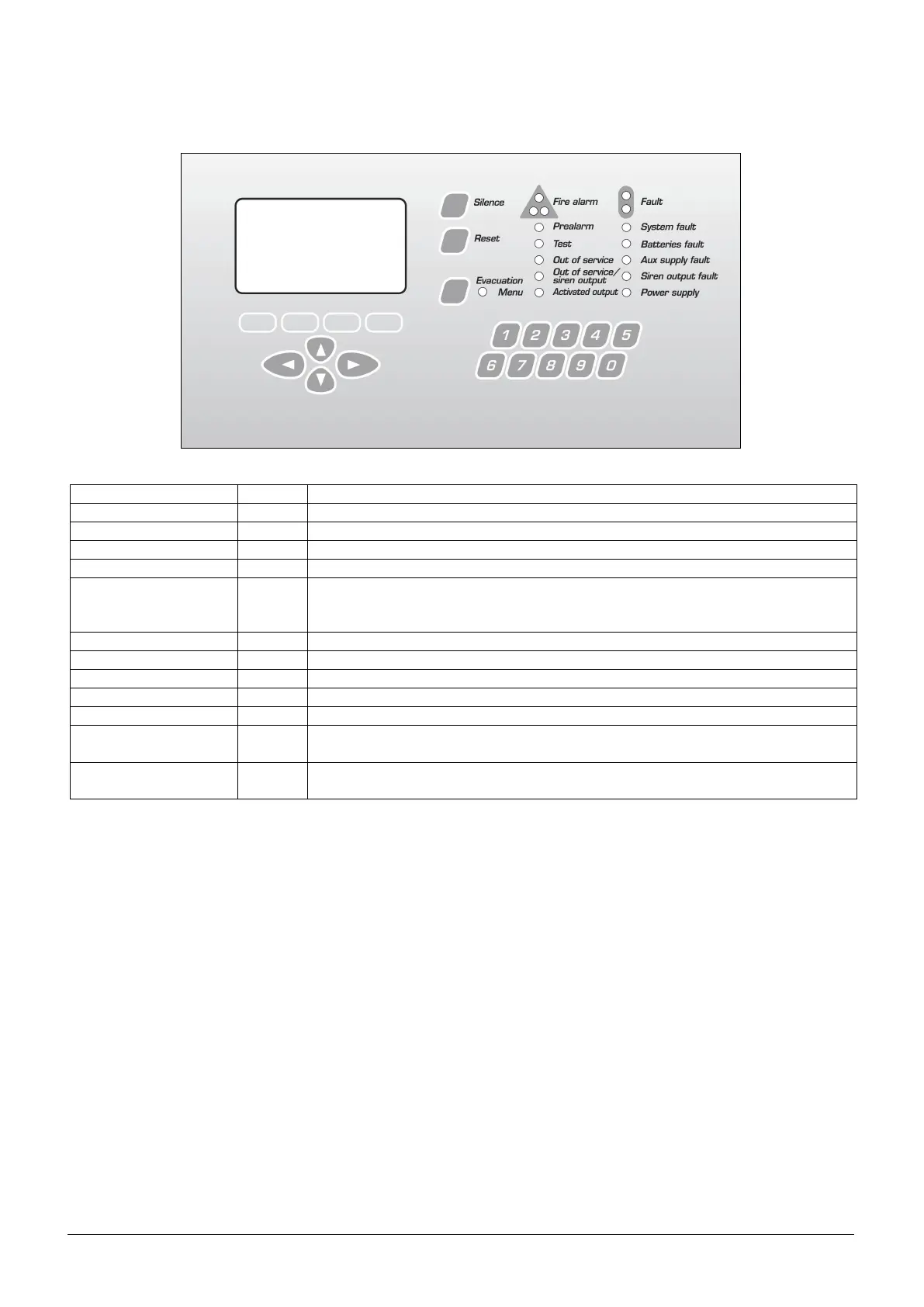

4.1.2 Led indicators of the control panel
The control panel has indicators led of yellow, green and red colour for a quick identification of its status.
Evacuation Red Active evacuation status.
Fire alarm Red Press the control panel has pointed out a alarm condition.
Pre-alarm Red The control panel has pointed out a pre-alarm condition.
Test Yellow Active function of test.
Out of service Yellow It lights up when a part of the system is put out of service.
Out of service / siren
output
Yellow Delayed siren. For norms the control panel must signal if the siren output is
delayed. In this case, in the corner in top at right of the display to appear a
siren icon.
Activated output Yellow Lit led at active outputs.
Fault Yellow The control panel has pointed out a general fault.
System fault Yellow The control panel has pointed out a fault to the system.
Battery fault Yellow The control panel has pointed out to the batteries.
Aux supply fault Yellow The control panel has pointed out a fault to the auxiliary output.
Siren output fault Yellow The control panel has found a fault in the siren output line (S- S+). It is
possible that along this line there is a short circuit or an interruption.
Power supply Green This led indicates the presence of the power supply (220Vac). If the power
supply is not present, the led flashes.
