15.1DETECTORS
All detectors of the EXCELLENT FIRE SYSTEM series
(smoke, heat and multi-criterion) have the same base.
These detectors have a double led indicator at high
visibility (360°) and a low height.
From the control panel is possible to change the
settings, values, zones and alarm types.

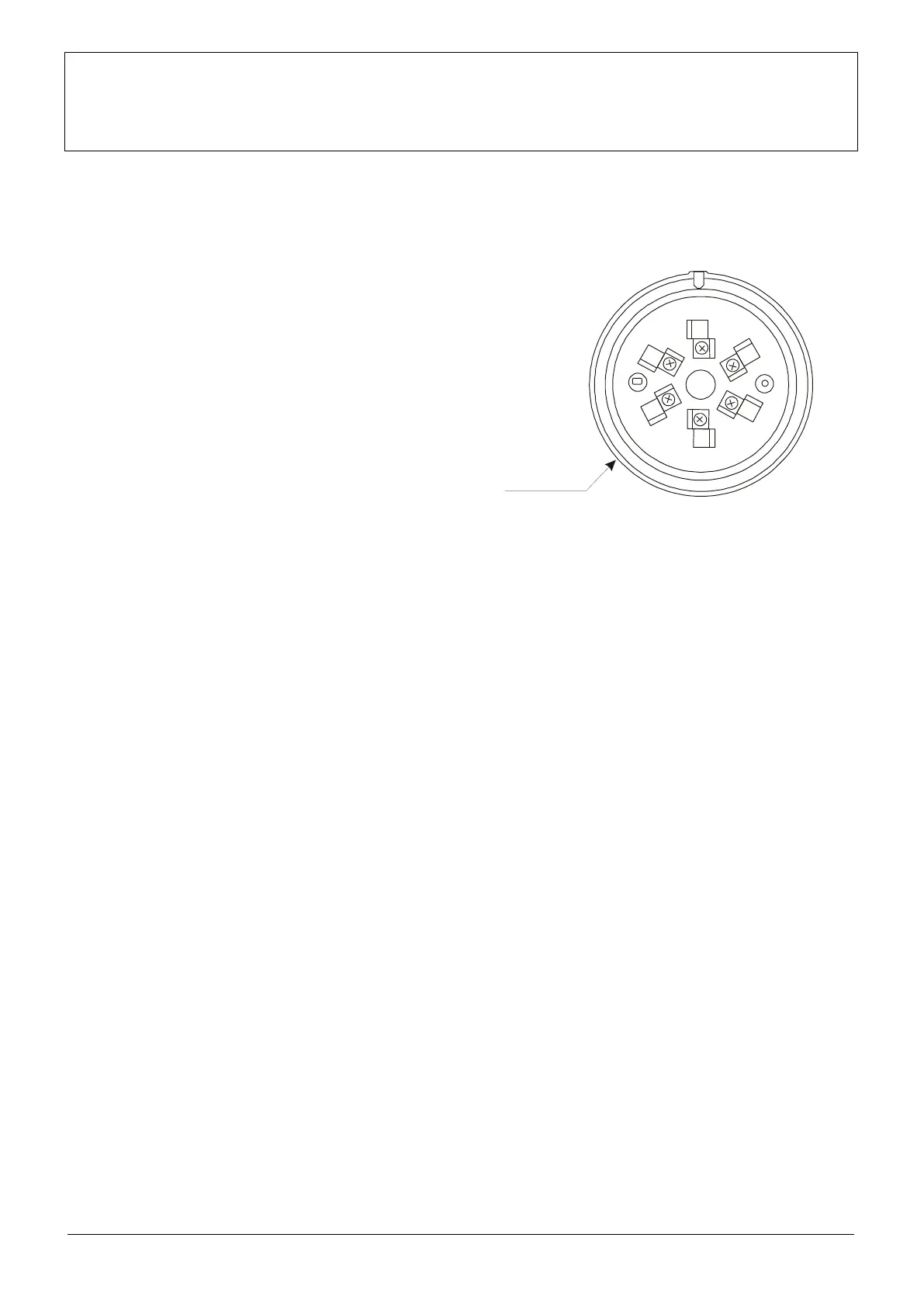

CLIPS DESCRIPTION OF THE BASE
2
3
1
6
5
4
Re ed
1
2 / R Negative output for outside door repeater.
3 / R
4 / SCR.
5 / - - LOOP.
6 / + + LOOP.
15.1.1 Detector addressing
For the addressing it is necessary to use a magnet near the reed. For the procedures refer to the manual of the
control panel.
15.1.2 Manual zero setting of the address
Normally the factory address is equal to 0 (zero). If the user must take back manually the address to such a value,
it is necessary to supply the detector at 24Vdc and, after about ten seconds, approach reed a magnet and wait
the leds make a longer flash signal.
