FDP EX-CPL - 16.1 CONNECTION BEETWEN CONTROL PANELS AND PC (RS485); 16.2 CONTROL PANEL CONNECTION ON LAN

Page 79 of 91
Rev. 4.
2
0

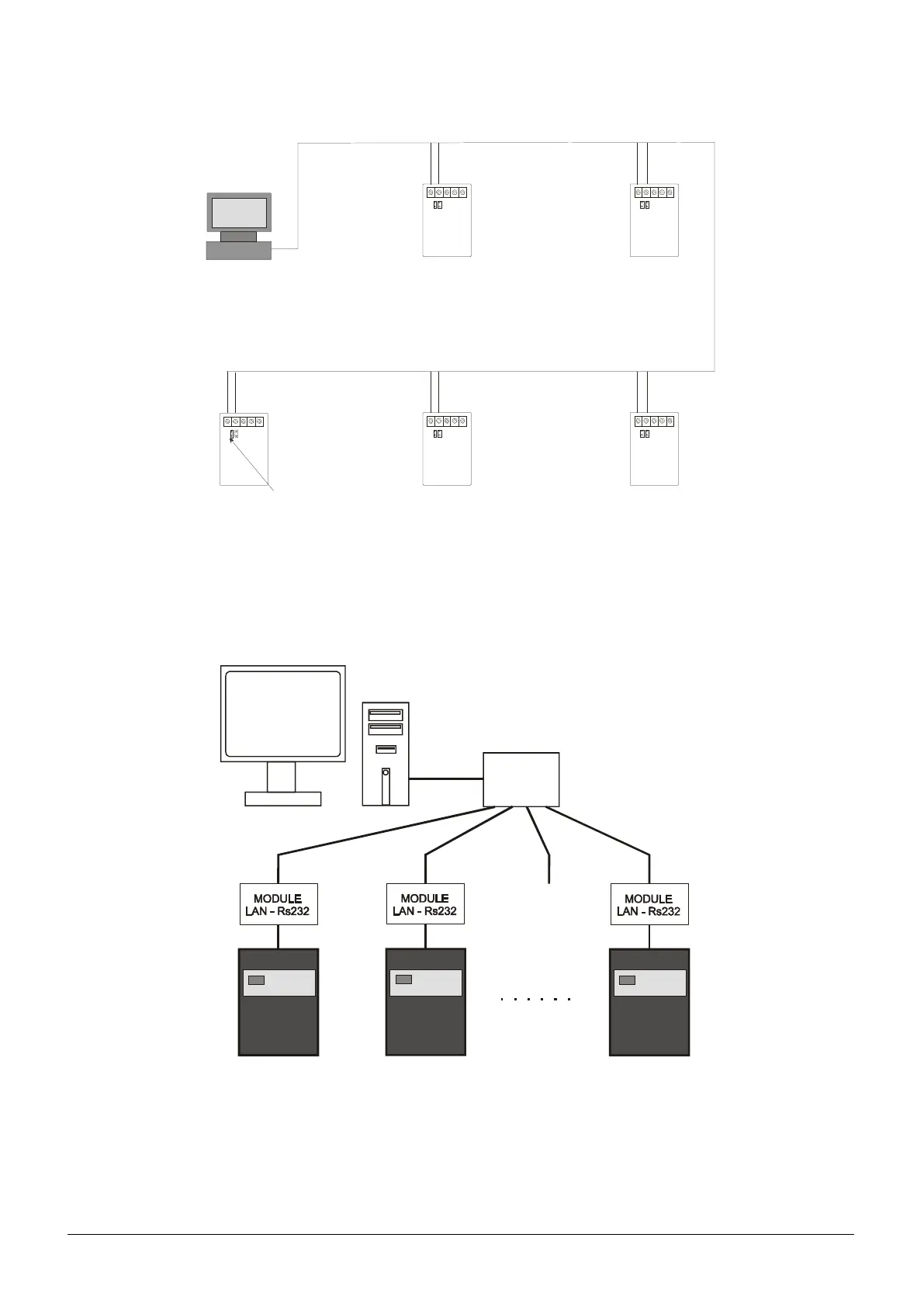

16.1CONNECTION BEETWEN CONTROL PANELS AND PC (RS485)
J1 J2 J1 J2
J1 J2
J1 J2 J1 J2
PC-Master
J1 da ponticellare
J1 to jumper in clip
With the RS485 serial port it is possible to connect maximum 64 control panels (slave), all of them are controlled
from a PC (master). The maximum length with RS485 is 1Km.
Into the PC must be installed the X-Advisor software to manage all the control panels.
16.2CONTROL PANEL CONNECTION ON LAN
SW ITCH
LAN
It is possible to make a control panel net with LAN connection. To connect a control panel with the net, the user
must use a MOXA module to interface the RS232 with LAN. Into the PC the user must install the X-Advisor
software and to set the software.
