ADDRESS: the point and loop addresses (no mod.).
ZONE: the zone address of the point loop (mod., range value
1-63).
NAME: the name of the point (mod.).
TYPE: point type (no mod.).
SECTION: the section where the point is (no mod.).
O.OF SERVICE: it indicates if the point is in out of service (mod. YES or
NO).
FAULT: it indicates if the point is fault (no mod.).
LED ON: if YES the leds flash (mod. YES or NO).
INPUT: the input is activeable with the types:
TECHNOLOGICAL, FIRE ALARM and BATH (mod.).
SING.CONSEN.: it is used when the control panel is supervisory mode
and the zone of the point is enabled the "double
consent". If YES, when the input go to alarm status, the
control panel go to fire alarm too. The possibility to
modify this function is given provided that there are at
least 2 points on the specific zone. If after deleting of a
point, the assigned zone at double consent has only
one installed point, this parameter value will read
No
and the zone must be at single consent. The
manual the button which gives an alarm signal that is
not influenced from these setting. (mod. YES or NO).
SERIAL NUM: the serial number of the button (no mod.).
SW VERSION: the software version of the button (it is changed
through PC).

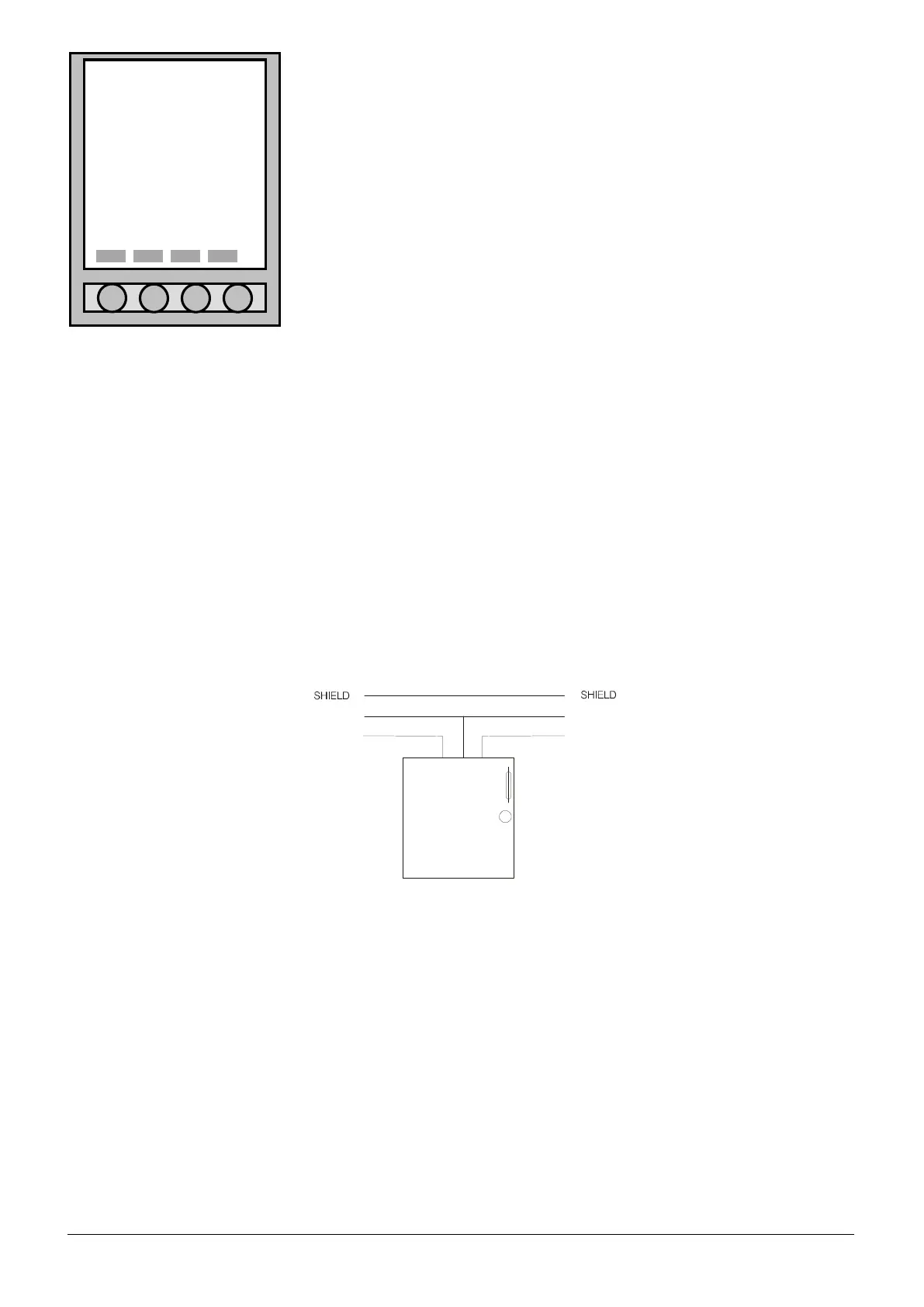

15.2.5 Electrical scheme
- LINE
- LINE
+LINE +LINE
L -
L +
REED
LOOP CONNECTION
L -
LED
15.3INPUT/OUTPUT MODULE
The input/output module is a device that it has an input module (balanced) and an output module relay
(C/NO/NC). It is possible to connect at the input clips a clean contact. (no open collector); at this input is possible
to associate a particular alarm (see chapter 7.2 )
The output module is a two way contact exchange. It is possible to connect it to power loads which can carry a
max value absorption of 1A at 24Vcc. For heavier power loads it is advisable to use an external service relay.
For the programming of the output see the chapter PART 9.
Point setting
•ADDRESS: 001-1
ZONE: 01
NAME: ROOM1
TYPE: MANUAL ALARM
SECTION: A-B
OUT OF SERVICE: NO
FAULT: NO
LED ON: NO
INPUT: DISABLED
SINGLE CONSENSE: NO
SERIAL NUM:002-00001
SW VERSION: 2.00
Esc.
Pre.
Next
Mod.
