Ferno XT PRO - Page 28

28
© Ferno s.r.l. Rel.05042024
XT Series Extrication Devices
WARNING
Failure to complete the three fastening steps may
cause undesired loosening of the straps.

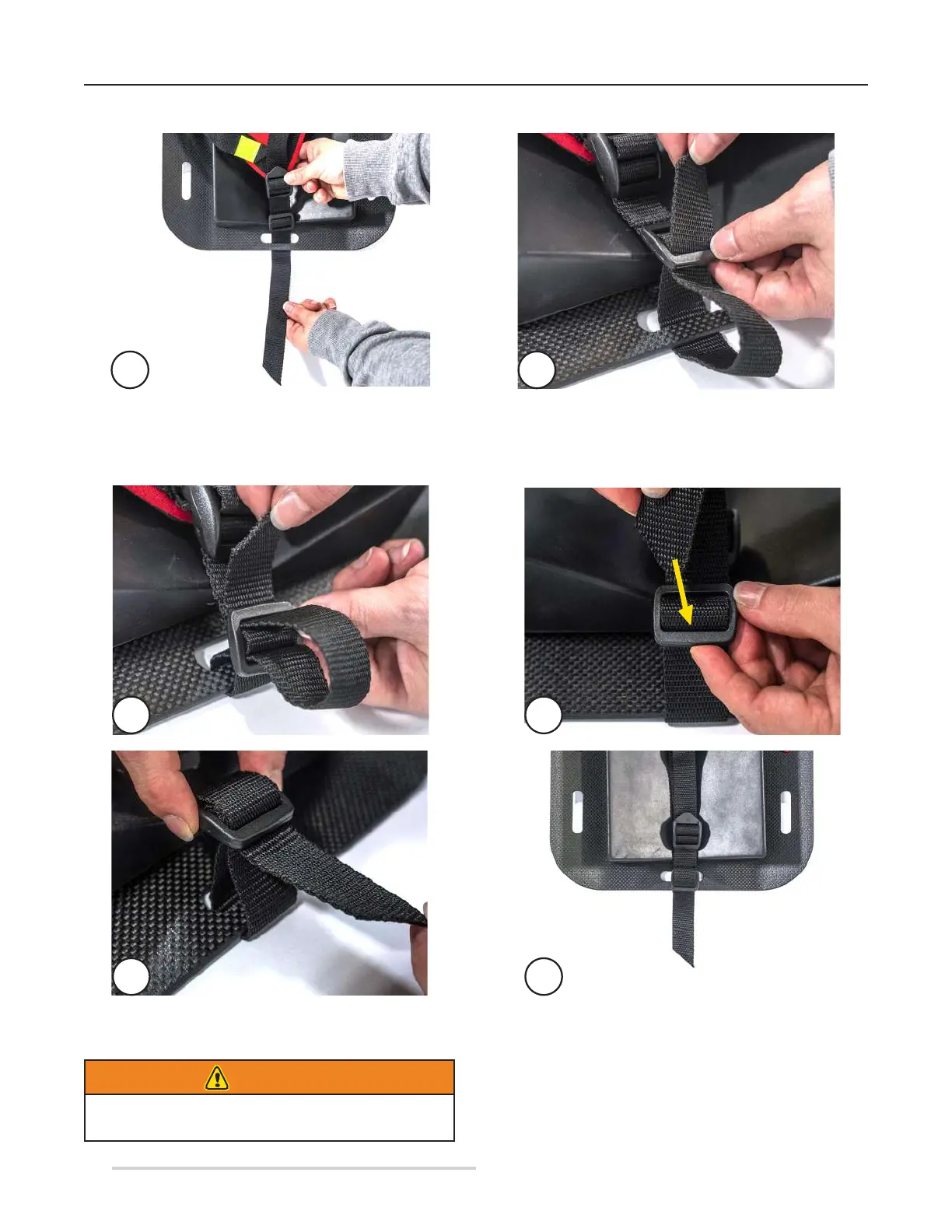

3. Then insert it in the second loop and pull to fasten the strap in the buckle (Figure 30A).
4. Finally, reinsert the strap into the rst loop to ensure a tight t and prevent the strap from coming loose (Figure 30B, 30C
and 30D).
29B
30A
29A
2. Insert the strap in the rst loop of the fastening buckle (Figure 29B).
5. Repeat the same operations with the other two straps in the two side holes no. 4 and 13, or no. 3 and 14.
30B
30C 30D
