XT Series Extrication Devices
3.3 - XT PLUS extrication device assembly
3.3.1 QHI (Quick Head Immobilizer)
assembly
The Quick Head Immobilizer must be applied before using
the XT device.
1.Before its application, make sure that the extrication
device is placed on a at surface and the part where the QHI
head immobilizer will be applied is clean and dry.
2. Peel off the sticker lm placed under the QHI, ensuring
that the black part stays on the QHI (Figure 1A).
3. Centre the QHI (Figure 1B) on the upper part of the
extrication device, close to the head end hole no. 1, (to
identify the hole no. 1, see Figure 4).
4. Press the QHI so that its sticker perfectly adheres to the
surface (Figure 1B).
Once the QHI has been correctly applied, it will be possible
to use the Velcro to detach and attach the cushion during
cleaning and disinfection or as required (Figure 1C).

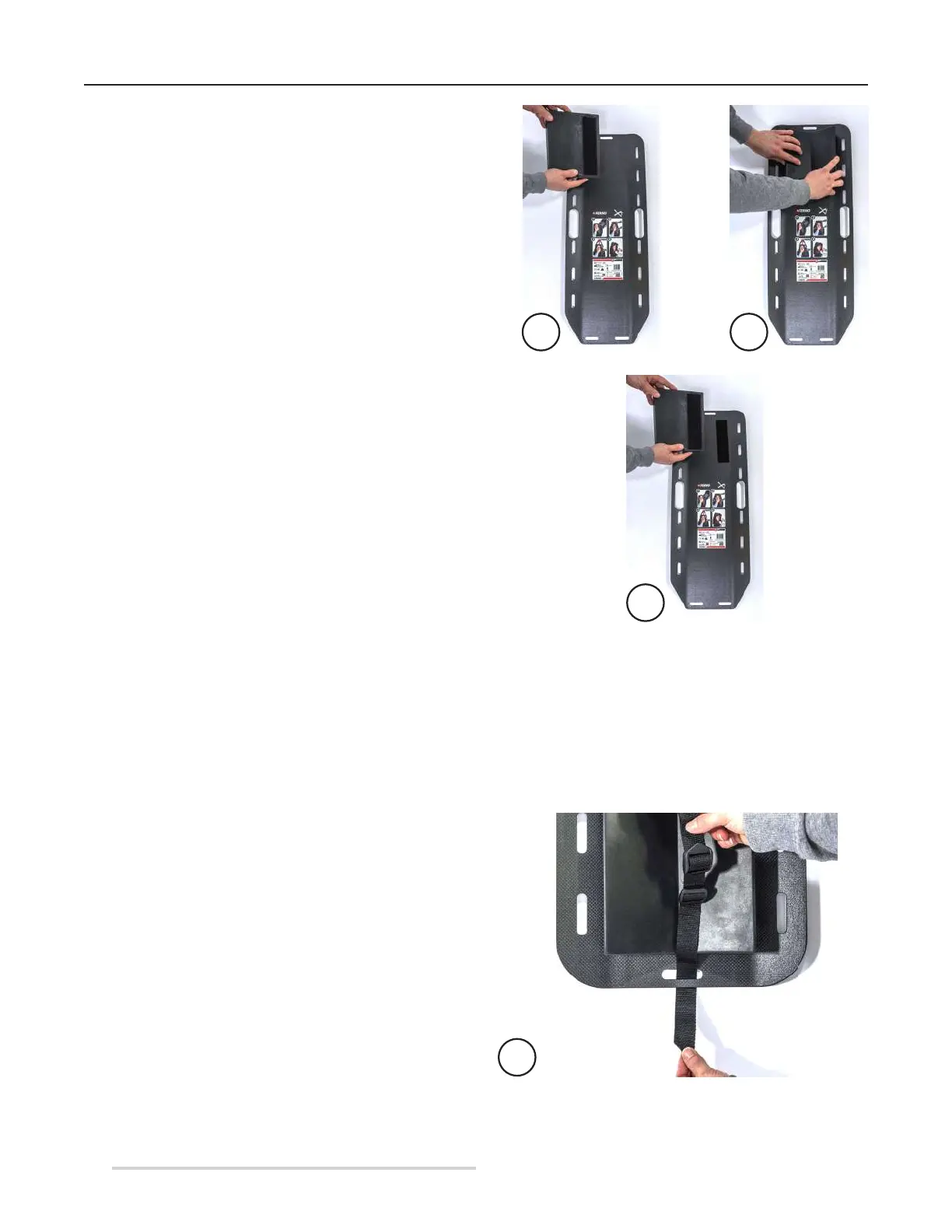

Figure 1 - QHI application
1A 1B
1C
3.3.2 Triangular head immobiliser
assembly
In order to apply the triangular head immobiliser correctly,
follow these instructions:
1. Insert the upper strap of the triangular head immobiliser
into the hole no. 1 of the board, going from the inside to the
outside of the extrication device (Figure 2A).
Figure 2A - Inserting the upper strap of the triangular
head immobiliser
2A
