XT Series Extrication Devices
6.3.6 Triangular head immobiliser
assembly
Once the oats are assembled, it will be possible to attach
the triangular head immobiliser to the plastic loops located
one on the head-end oat in a central position and the other
two at the upper ends of the transverse connection restraint
of the breast oats (Figure 115).

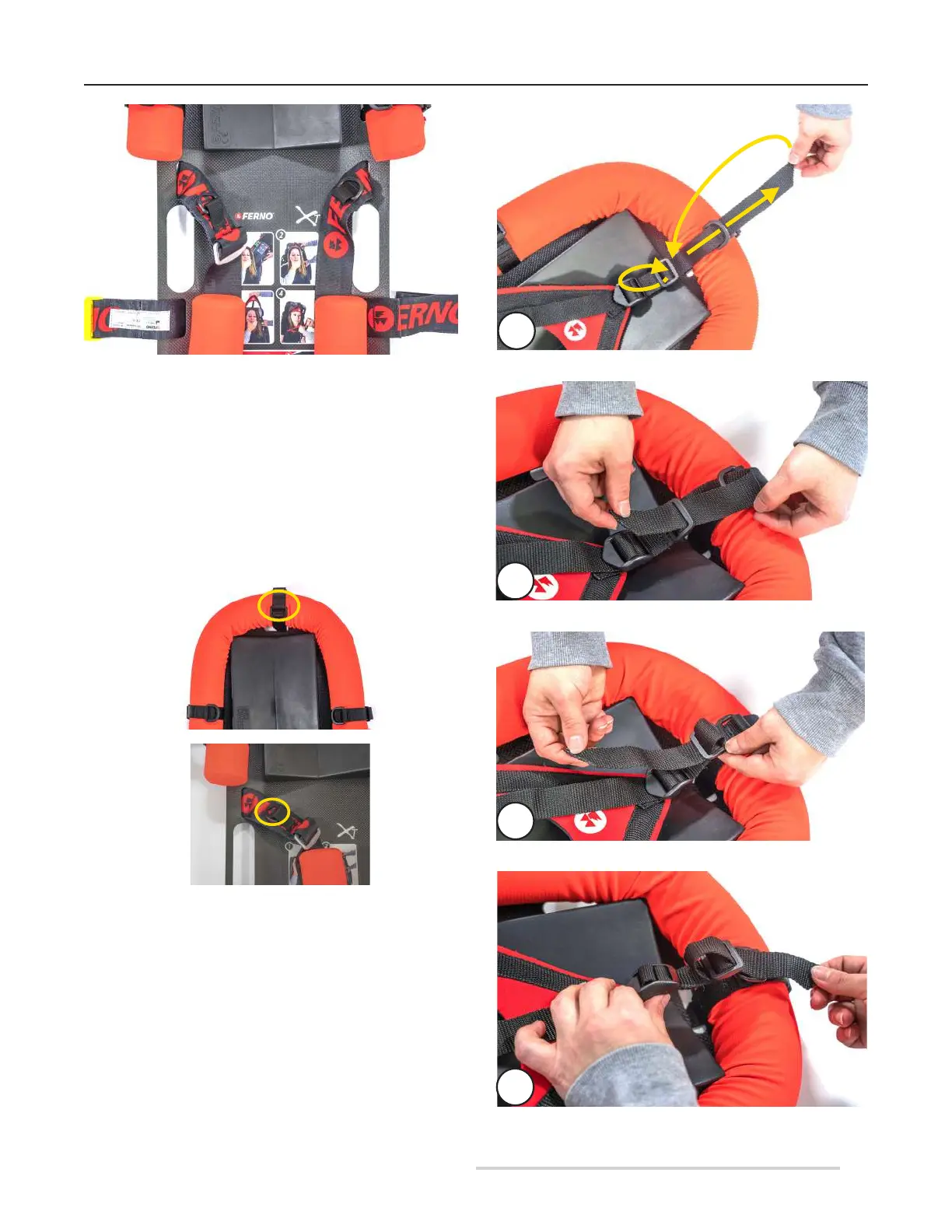

Figure 114 - Floats correctly assembled
Figure 115 - Attachment points of the triangular head
immobiliser
Before assembly, place the triangular head immobiliser so
that the strap is aligned with the head-end oat loop.
Now insert the strap into the loop and twist it around the
loop, bringing the end in the direction of the triangular head
immobiliser.
Then insert the strap into the plastic buckle adjacent to the
apex of the triangle and perform the complete fastening
procedure as shown in Figure 116.
1
2
116A
116B
116D
116C
3
Figure 116 - Fitting the upper strap to the head-end
oat
