XT Series Extrication Devices

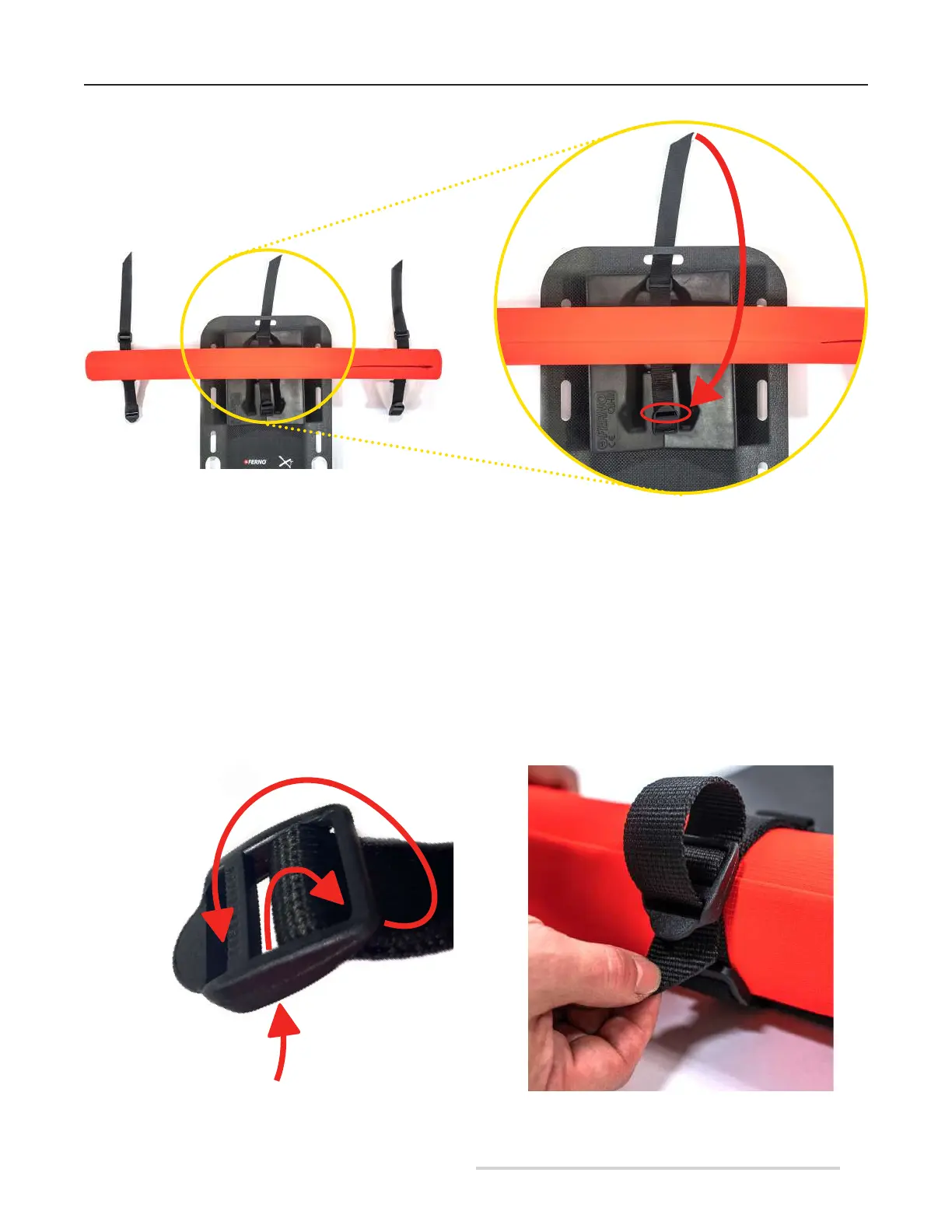

Position the head-end oat perpendicular to the board, with the buckle-free restraints side facing the top of the XT Floating, so
that the central strap passes through slot number 1, from the inside to the outside, as shown in Figure 100.
Then fasten the strap by passing the previously threaded end through the board slot around the oat and into the buckle,
completing the fastening as shown in Figures 101 and 102.
It is important to carry out all three steps to ensure that the strap is securely fastened.
6.3.2 Assembling the head-end oats
Figure 100 - Central strap application
1
2
3
Figure 101 - Steps for fastening on the head-end oat
buckles
Figure 102 - Fastening the central strap
