XT Series Extrication Devices
WARNING
Take care that the two halves of the buckle of each
restraint bear the same colour code.
The black and green restraints must not cross the
pelvis area but must be on the same side.
Take care to leave the carrying handle out of the
cow hitch.
The auxiliary carrying handles are removable and
independent, so they can be moved as required. For
example, they can be installed on the middle handles
to make them longer and allow extrication even
with larger patients. As an alternative, they can be
directly secured to the board using any available hole.
To attach the red handles, follow the xing procedure with
cow hitch (Figures 38, 39 and 40).

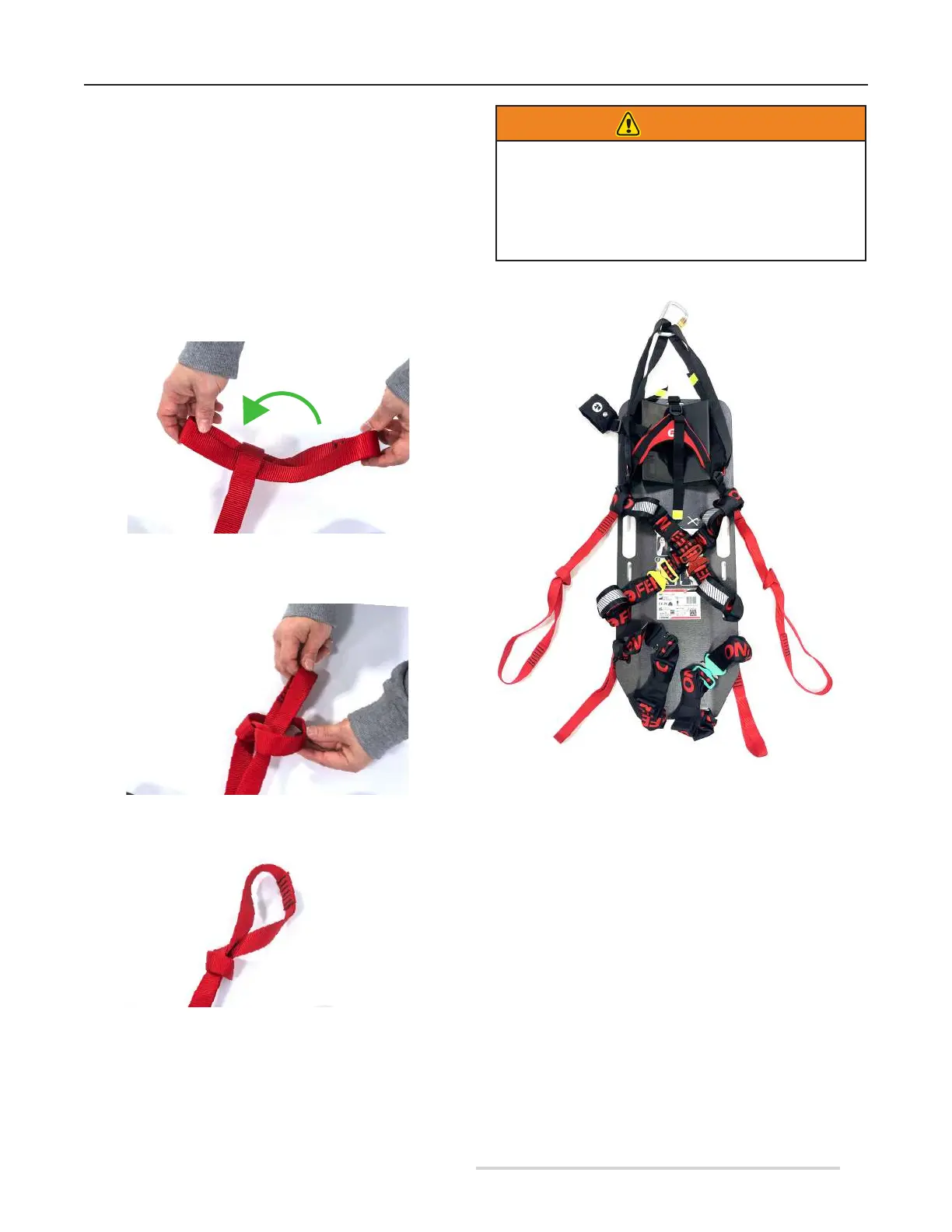

Figure 39 - Application of auxiliary handles, step 2
4.3.6 Assembling the auxiliary handles
Figure 41 - XT PRO with auxiliary handles assembled
Figure 40 - Application of auxiliary handles, assembly
completed
Figure 38 - Application of auxiliary handles, step 1
