XT Series Extrication Devices
WARNING
Take care to leave the carrying handle out of the
cow hitch.
4.3.5 Assembling the restraints
The XT PRO extrication device is equipped with two
upper chest restraints (yellow and red) and two lower groin
restraints (black and green).
Upper chest restraints should be applied in such a way that
they are in a crossed conguration when applied to the
patient.
Groin restraints, on the other hand, should be applied in
such a way that they fasten on the same side of the board.
Each restraint consists of two pieces. Position the restraints
so that the buckles follow the arrangement shown in Figure
33.
The restraints are equipped with integrated red lifting and
carrying handles, to which the two extension rings can be
added if necessary.
The restraints must be applied before using the XT PRO
extrication device. For their application and the identication
of the right hole on the device, refer to Figure 33.

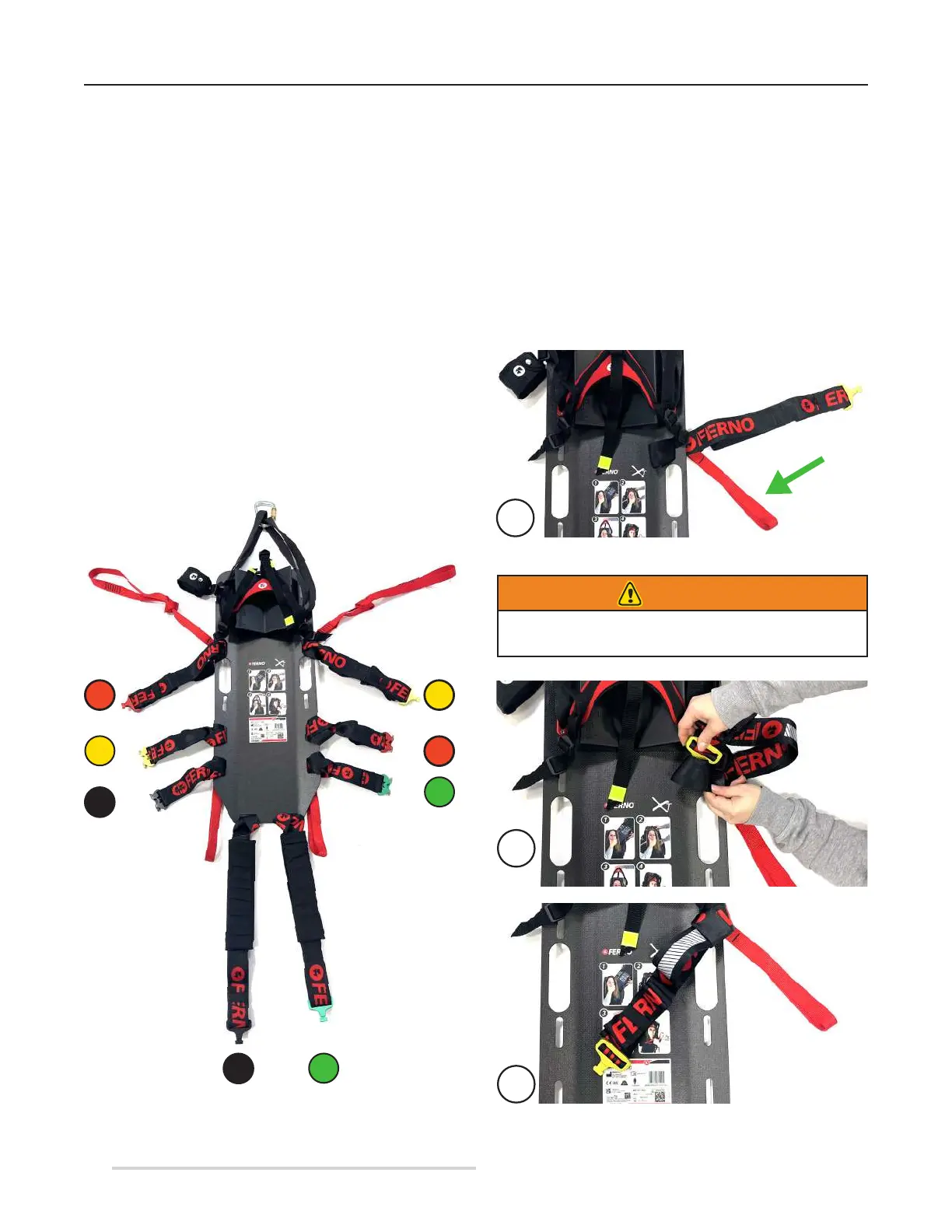

Figure 33 - Conguration of restraints
13
11
10
8
9
6
4
34A
34B
34C
Figure 32 - Yellow restraint application
(end with male buckle)
YELLOW CHEST RESTRAINT
In order to apply the yellow chest restraint:
1. Insert the slot of the restraint with the male end into hole
no. 4 on the extrication device, with the stitching facing the
operator, making sure that the red handle remains at the
back and outside the board (Figure 34A).
2. Insert the yellow buckle into the newly positioned restraint
slot (Figure 34B).
3. Pull the restraint to tighten the loop knot, ensuring that
the red handle always remains on the outside of the board
(Figure 34C).
