6.3.5 Assembling the breast oats and the restraint with black buckle
Place the breast oats parallel to each other, with the black sleeves facing upwards and both positioned on the same side.
Insert the end of the retaining restraint without the metal buckle inside the sleeve of the rst oat, starting from the outermost
side, as shown in Figure 108A.
Before attaching the restraint to the second oat, insert the black female buckle on the restraint so that it remains positioned
between the two oats (Figure 108B), then proceed to insert the restraint into the second sleeve starting from the centre of the
oat towards the outermost end as shown in Figure 108C.
1
2
3
108B
108C
108A

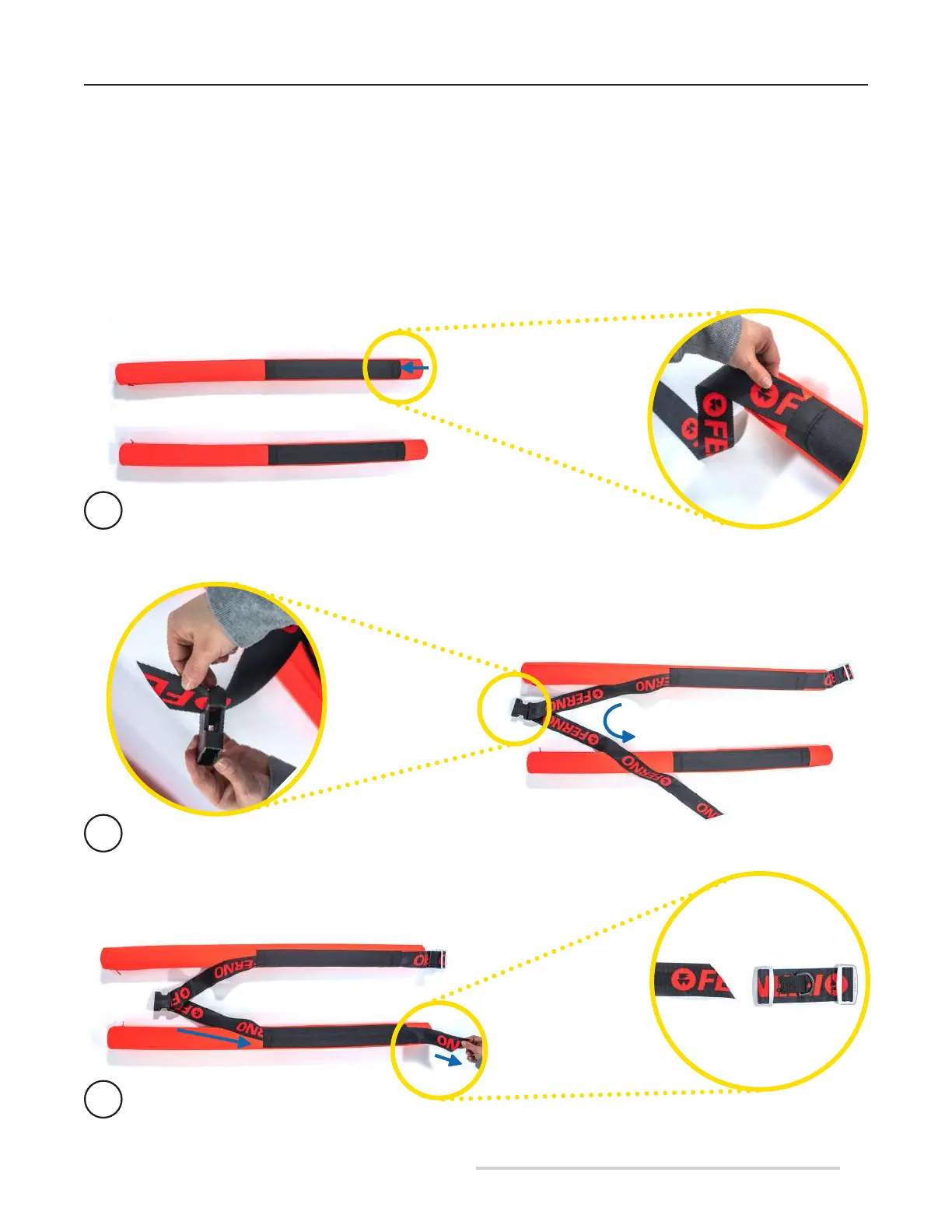

Figure 108 - Assembling the retaining restraints on the breast oats
