XT Series Extrication Devices

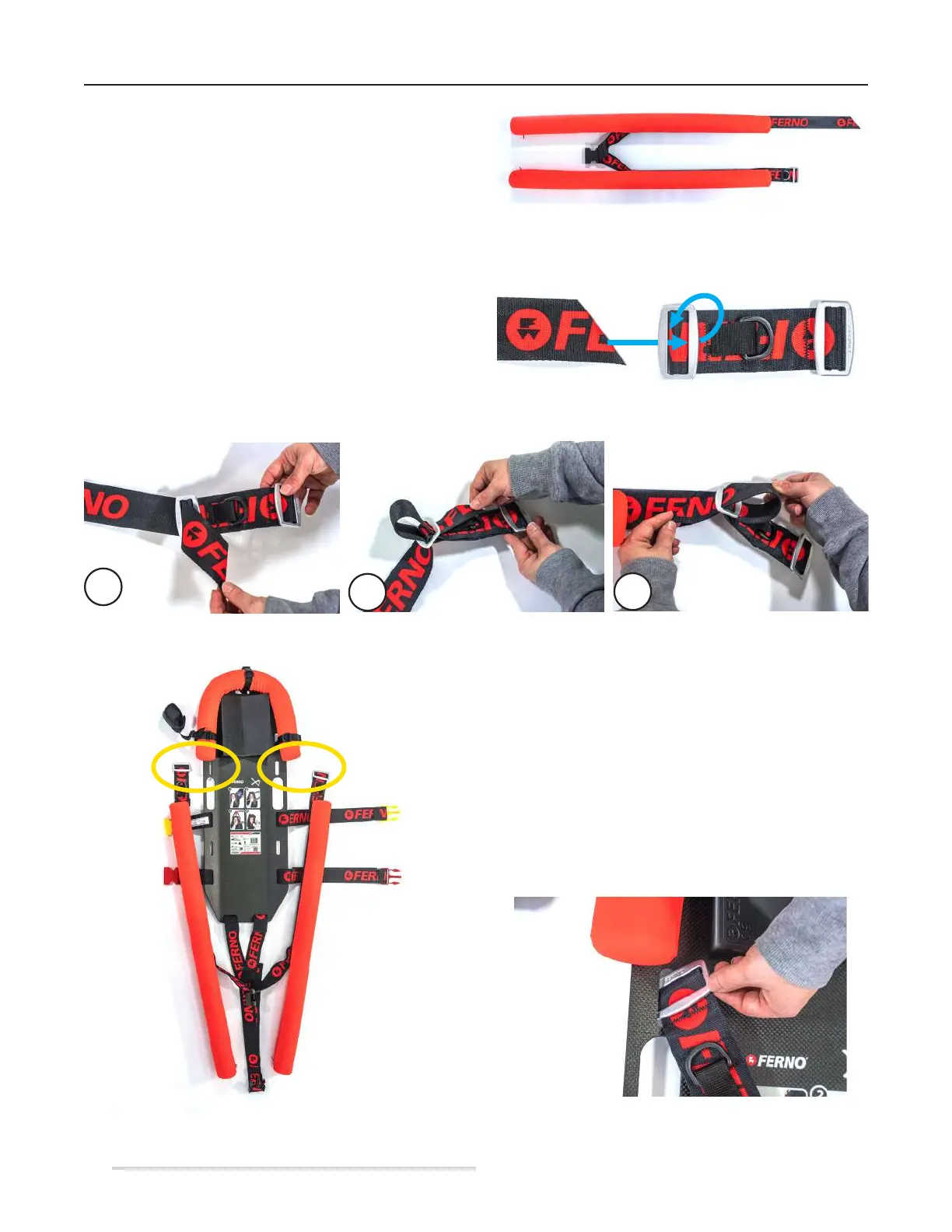

Once the end of the strap has been extracted from the outer
end of the second sleeve, it must be attached to the last piece
of the restraint with the two metal buckles.
It is advisable to do this by taking care to turn the oats so
that the sleeves remain facing downwards (i.e. in the same
position as they will be applied to the patient. Figure 109).
Once the end of the strap has been extracted from the outer
end of the second sleeve, it must be attached to the last piece
of the restraint, the one with the two metal buckles (Figure
110).
Insert the end of the restraint inside the buckle and complete
the fastening as shown in Figures 110, 111A, 111B and
111C.
Figure 109 - Correctly applied restraint
1
2
Figure 110 - Final fastening steps
111A
111B
111C
Figure 111 - Final fastening steps in detail
To complete the installation of the breast oats on the board,
insert the metal buckles at both ends of the restraint into the
slots no. 4 and 13.
To facilitate the procedure, place the oats on top of the
board with the sleeves facing downwards so that the black
plastic buckle can engage onto the corresponding male one
already attached to the device, as shown in Figure 112.
Then insert the buckles from the front (Figure 113), ensuring
that the buckle locks the restraint rmly in place (Figure
114).
Figure 113 - Breast oat metal buckle fastening
Figure 112 - Positioning the breast oats to complete
the installation
