XT Series Extrication Devices
Important
Both positions of the triangular head immobiliser on holes no. 4 and 13 or 3 and 14 are possible and ensure proper
stabilisation of the patient's head. The choice of set-up is at the discretion of the operator, who can choose the most
suitable version, depending on the contingency.
4.3.4 Chin strap assembly
31A
31B
31C

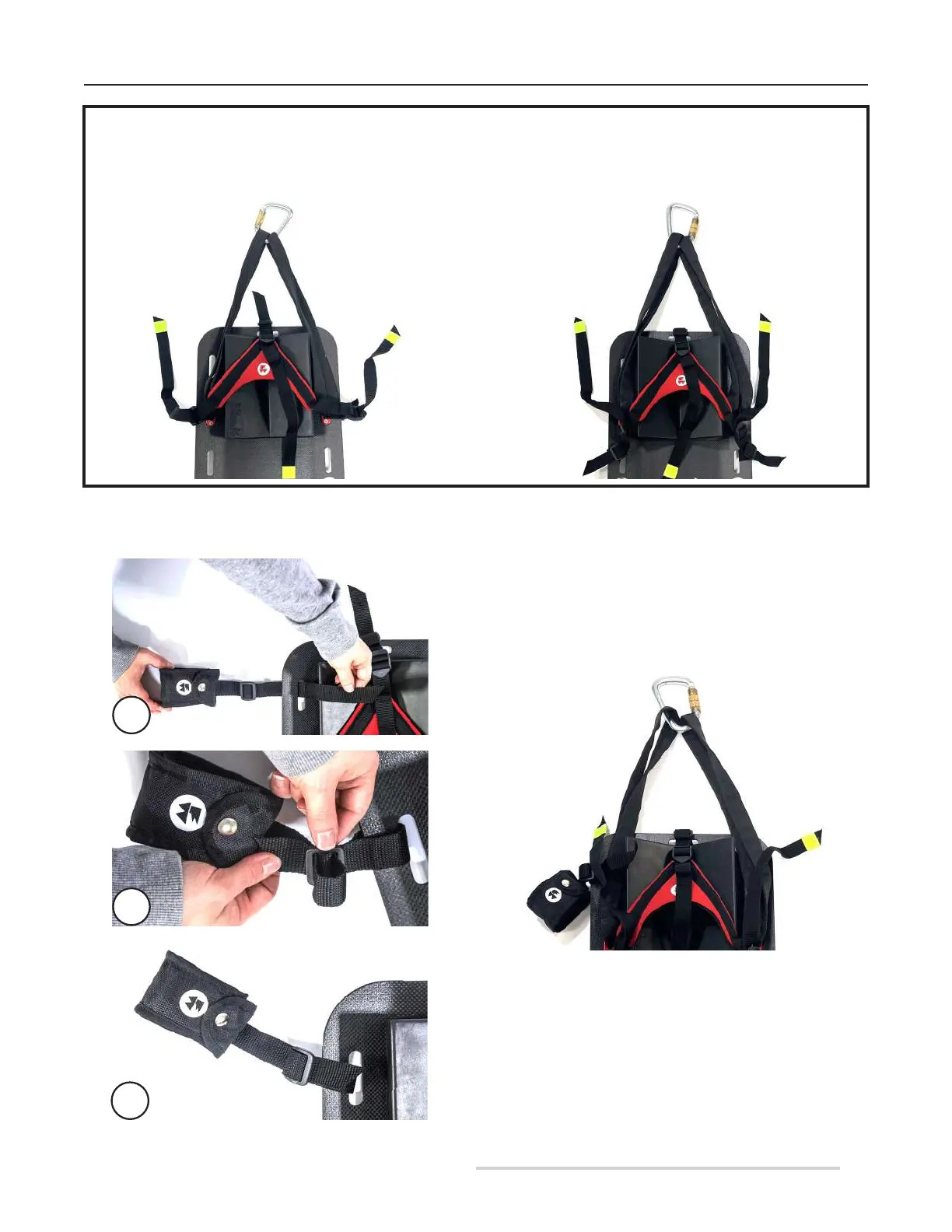

Figure 32 - Correct positioning of the chin strap ready
for use
Figure 31 - Chin strap assembly
The neoprene chin strap, stored in a special bag, can be
secured on the extrication device using side hole no. 15,
following the same instructions used for the application of
the triangular head immobiliser straps.
