54
IT
Cod. 3541V991 - Rev. 06 - 10/2022
OMNIA ST 3.2

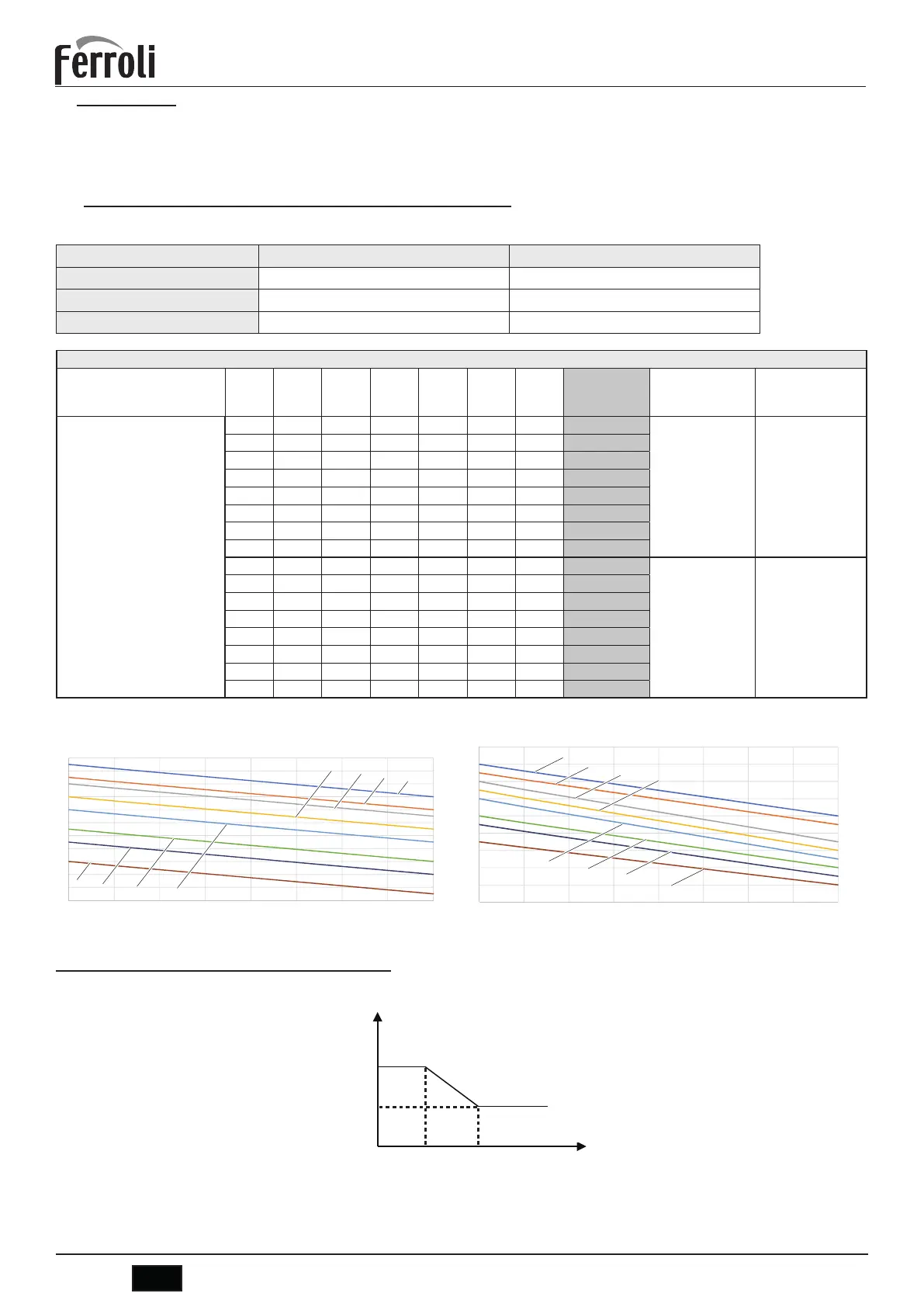

9.3 Curve climatiche
Le curve climatiche possono essere selezionate nell’interfaccia utente. Una volta selezionata la curva, il set point della temperatura acqua inviata all’impianto viene
calcolata dalla curva.
E ‘possibile selezionare le curve anche se la funzione doppia zona è abilitata.
La relazione tra la temperatura aria esterna (T4) e il set point temperatura acqua impianto (T1S / T2S) è descritta nelle tabelle e nelle immagini seguenti.
9.3.1 Curve climatiche per la modalità riscaldamento e la modalità riscaldamento ECO
Tipo di terminali utente (da configurare nel menu di servizio Impostazione modalità raffreddamento e riscaldamento).
In base al tipo di terminale utente selezionato le curve climatiche impostate sono limitate, fare riferimento alla tabella sottostante:
Tipo di terminale selezionato Set curve climatiche disponibile in riscaldamento Set curve climatiche disponibile in raffreddamento
FLH (pavimento radiante) H2 C2
FCU (fancoil) H1 C1
RAD (radiator) H1 C2
CURVE CLIMATICHE (WTS) MODALITÀ RISCALDAMENTO
T4 (temperatura aria esterna) [°C] -20 -15 -10 0 7 15 20
id Curva
climatica
Tipo di terminale
selezionato sul tele-
comando
Curve climatiche
impostate
T1S or T2S
(set point acqua impianto) [°C]
55,0 54,4 53,7 52,5 51,6 50,6 50,0 1
Fancoil o Radiatori H1
53,0 52,4 51,7 50,5 49,6 48,6 48,0 2
52,0 51,4 50,7 49,5 48,6 47,6 47,0 3
50,0 49,4 48,7 47,5 46,6 45,6 45,0 4
48,0 47,4 46,7 45,5 44,6 43,6 43,0 5
45,0 44,4 43,7 42,5 41,6 40,6 40,0 6
43,0 42,4 41,7 40,5 39,6 38,6 38,0 7
40,0 39,4 38,7 37,5 36,6 35,6 35,0 8
38,0 37,2 36,5 35,0 33,9 32,7 32,0 1
Riscaldamento a
pavimento radiante
H2
37,0 36,2 35,5 34,0 32,9 31,7 31,0 2
36,0 35,1 34,2 32,5 31,3 29,9 29,0 3
35,0 34,1 33,2 31,5 30,3 28,9 28,0 4
34,0 33,1 32,2 30,5 29,3 27,9 27,0 5
32,0 31,2 30,5 29,0 27,9 26,7 26,0 6
31,0 30,2 29,5 28,0 26,9 25,7 25,0 7
29,0 28,4 27,7 26,5 25,6 24,6 24,0 8
3
4
3
6
3
8
4
0
4
2
4
4
4
6
4
8
5
0
5
2
5
4
5
6
-20 -15 -10 -5 0 5 10 15 20
HEATING MODE (climatic curves set H1)
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
2
2
2
4
2
6
2
8
3
0
3
2
3
4
3
6
3
8
4
0
-20 -15 -10 -5 0 5 10 15 20
HEATING MODE (climatic curves set H2)
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Modo riscaldamento (curva climatica impostata H1)
Modo riscaldamento (curva climatica impostata H2)
Curva climatica 9 in modo riscaldamento impostabile da utente
La curva climatica 9 è definita tramite 4 parametri impostabili dall’utente (T4H1, T4H2, T1SETH1, T1SETH2, vedi “9.2 Tabella dei parametri di servizio” a pagina 51).
T4H1
T4H
2
T
1SETH
2
T
1SETH
1
T4
)2S1T( S1T
fig. 39 - Curva climatica 9 in modo riscaldamento
